Woodpecker US-II LED Ultrasurgery Piezo Bone Surgery with 14 Tips - azdentall.com

Woodpecker US-II LED Ultrasonic Piezo Bone Cutter Ultrasurgery. Autoclavable Handpiece and Tips. Minimally Invasive Incision. Maximum Safety to Soft Tissue. Reliable and Efficient. Complete set including Main Unit with accessories, 2x LED hand pieces, and 14 cutting tips (one each: US1, US2, US3, US4, US5, US1L, US1R, UL1, UL2, UL3, UL4, UL5, UI1, UC1). One Year Warranty. FDA Approval.

Features

Minimally Invasive Incision: The tips vibration accuracy is 20-200μm micron, the minimum incision is only 3.5mm*0.5mm. The postoperative recovery is fast, due to operation area is small.
Provide Maximum Safety to Soft Tissue: he vibration frequency is 24-29KHZ, which can effectively cut bone tissue and reduce the risk of soft tissue injury.
Easy Operation: For different treatment needs, there are four modes for choosing: bone function, periodontal function, root function, clean function.
More Safety: Handpiece, cable, tip holder, working tip and torque wrench can be autoclaved under the high temperature of 135°C and the pressure of 0.22Mpa.
Newly Developed Handpiece: Developed handpiece and tip are more compatible and stable. The LED Handpiece insure better vision.
Equipped with Professional Kits: Come with 2 LED handpieces and 14 tips, providing a wide choice for application of your clinical practice.

Maintenance Services

We offer remote installation guidance and maintenance services to ensure your product performs smoothly. Our professional team is ready to provide effective support tailored to your specific needs, helping you resolve any issues and address any concerns efficiently. Contact Us

Intended Use

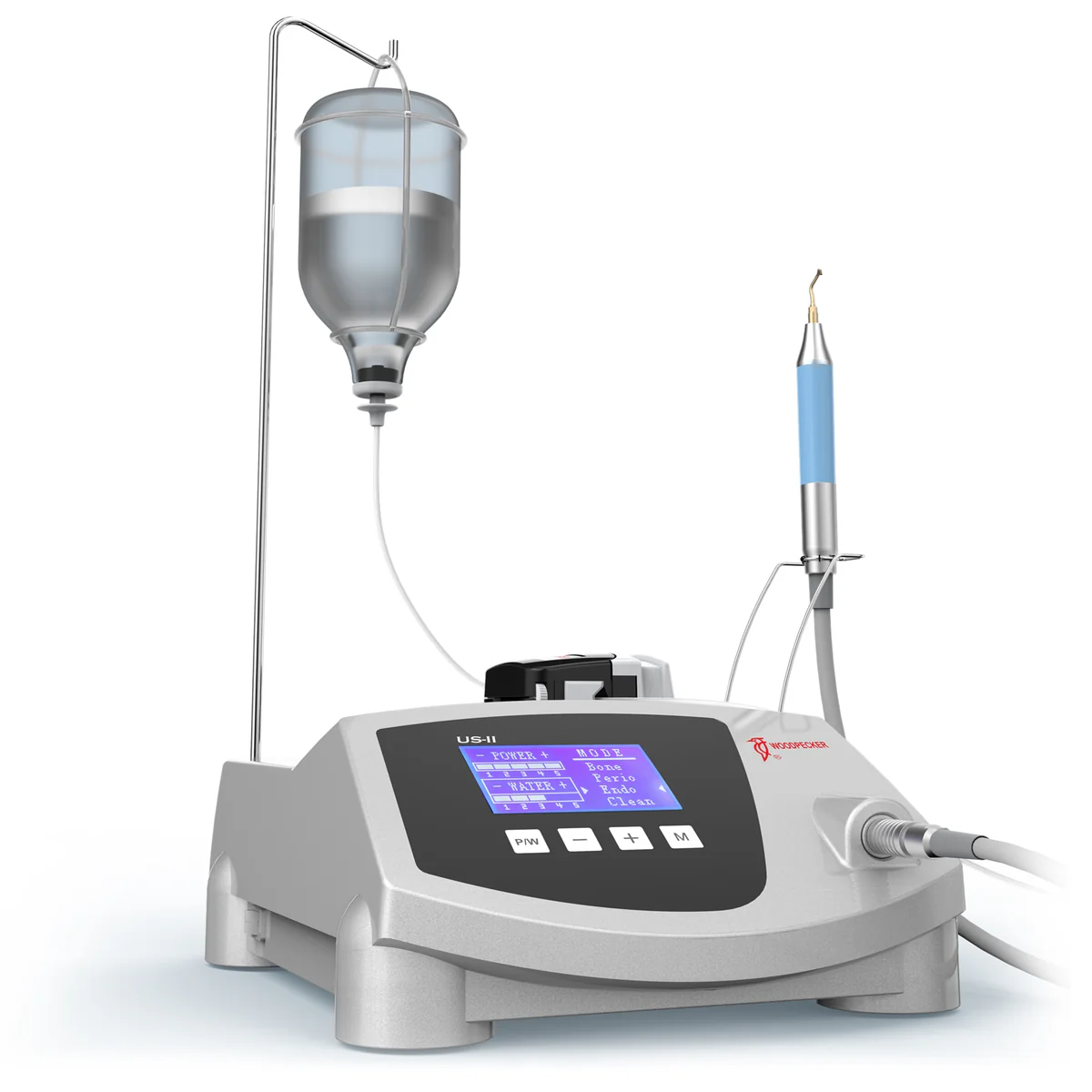

The US-II (LED) is a piezoelectric device for bone surgery that enables osteotomy and osteoplasty techniques to be applied to in almost any anatomical situation. This equipment can be used in the following fields:
Oral surgery;
Orthopedic surgery;
Maxillofacial surgery;
Cosmetic surgery;
Neurosurgery;
Otolaryngology
The function of bone is mainly used for dental surgery, such as dental extraction, bone grafting, osteogenic distraction, endodontic surgery, alveolar nerve decompression, cyst removal, osteoplasty, bone harvesting techniques and periodontic surgery. etc.

Technical Parameter

Power input: 110V~ 50Hz/60Hz
Main unit input: 24V~ l.3A
Output power: 5W ~ 35W
Intermittent operation: Max T_on 60s, T_off 10s
Frequency: 24kHz ± 36kHz
Main unit weight: 6.8lbs (3.1kg)
Dimensions: 13"x10"x6.6" (330×254×167mm)

Packing List

Main Unit *1	Peristaltic pump *1
Power cord *1	Hook *1
Foot Switch *1	LED Handpiece *2
Handpiece holder *1	Tip Holders *2
Pump tubing *8	Connector for pump tubing *4
Steriliza box *1	Torque Wrench *2
Single package *2	Tip book *1
Silicone handle holder *2	Normal saline connector *2
Instruction manual *1	Warranty card *1
Quality certificate *1	Assembly card *1
Packing list *1	Complimentary article: LED lamp (only for US-II LED) *1
Tips *14	US11, US21, US31, US41, US51 UL11, UL21, UL31, UL41, UL51 US1L1, US1R1 UI11, UC11

Warranty

One Year Warranty (not including customer damages).
Due to the nature of the medical equipment, we don’t offer return on this product if it has been open box and used. We will repair it for free if it’s product problem and still within warranty.
