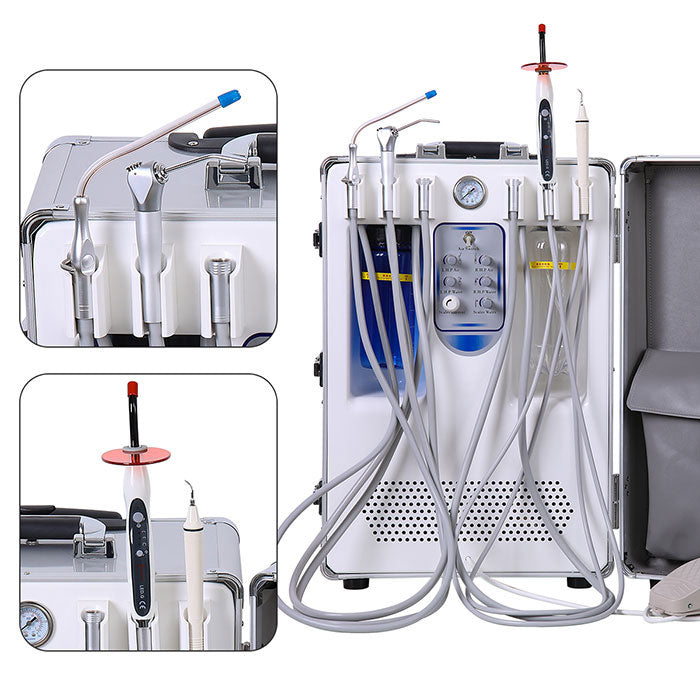

Dental Portable Turbine Unit with Air Compressor Curing Light Ultrasonic Scaler 4 Hole. Perfect structure, compact structure consistent with doctor's habits to make them operate more easier. High quality motor with steady performance, solid box to ensure anti-fall. Simple operation, fashion design. Portable box with low weight and rod boxes style to make doctors move it freely.
Note: when use the high speed handpiece, please open high and low handpiece switch to "high-speed" station, adjust the working pressure of the handpiece is between 0.18MPa-0.22MPa, the high speed handpiece standard speed is ≥300×10³ r/min. The low speed handpiece working pressure between 0.28MPa-0.32MPa, the low speed handpiece standard speed is ≥14000r/min.

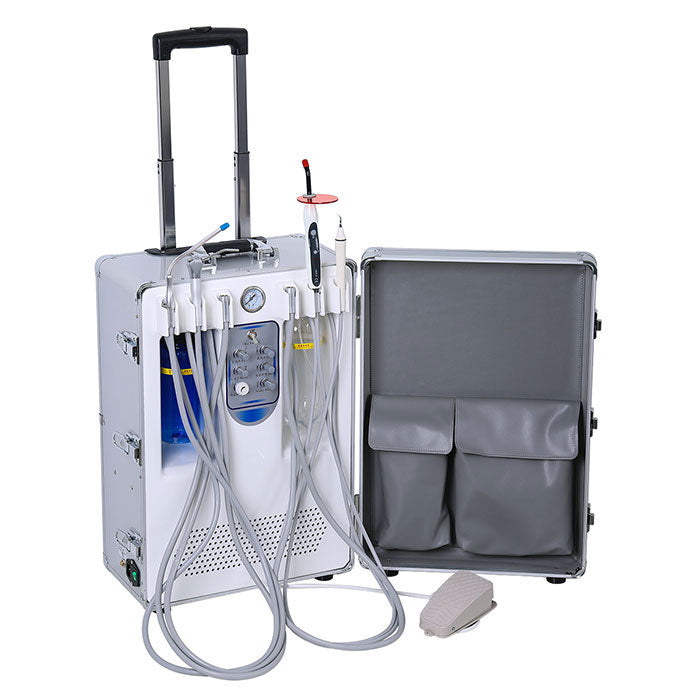

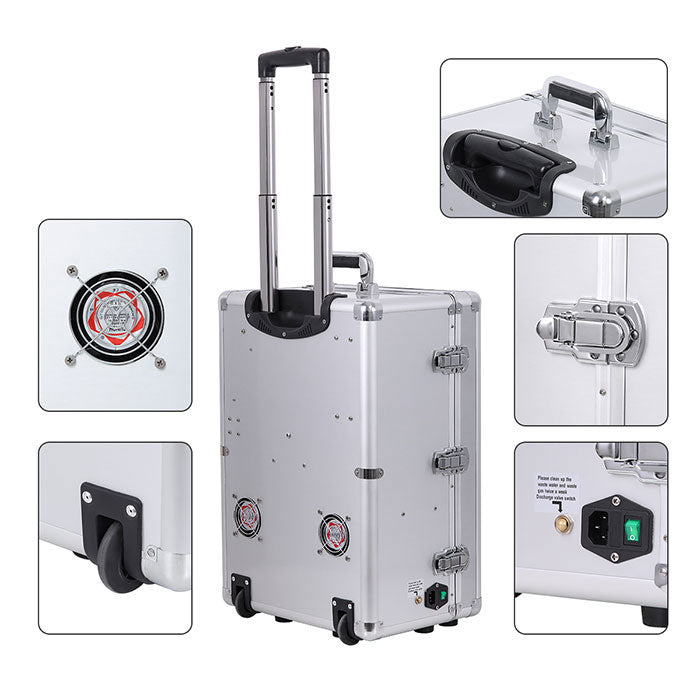

- Portable: Portable box with low weight and rod boxes style to make doctors move it freely.
- Fashion Design: Fashionable box design to make patients feel more comfortable.
- Perfect Structure: Compact structure consistent with doctor's habits to make them operate more easier.
- Complete Function: The unit consists of related operation system inside the dental treatment unit, such as air system, water system, suction and drainage.
- Simple Operation: Using when install the parts correctly and connect with power. And the unit controlled with foot control pad.
- High Durability: High quality motor with steady performance, solid box to ensure anti-fall, service time exceeds 15,000 hours.
- Free Maintanance: Oil free motor without any lubricated oil, drainage bottle is more convenient to remove and disinfect.
- Applications: Dental Hospital, Dental Clinics, Army and Outdoor Dental Care or Treatment Establishment.
|
- Before operating the unit, please read the manual carefully and preserve it for future reference.
- Please operate and maintain the unit strictly in accordance with the operational instructions.
- The user should read the instructions supplied with the dental unit carefully.
- Symbol “Attention” denotes that before using the device, read the operating manual carefully and carry out all the instructions to avoid any damage or injury.
- Please contact the local agent or the manufacturer if the unit needs repairs. We will supply a high quality of service and assistance for you.
|
- The power switch should be turned off when the machine stopped working, the transformer and solenoid valves will heat to burn if long-term power or no stop the power.
- Please drain off the water when the water on 2/3 of Suction bottle, the water will come to motor if the water is higher than 2/3 on suction bottle, the air motor will leakage of electricity or burn if the water come to air motor.
|
| Model: |
Portable Dental Unit |
| Votalge: |
110 V/60Hz(USA),220V/50Hz(Europe) |
| Power: |
600W |
| Air Flow: |
130L/min |
| Pressure: |
0.8Mpa |
| Net Weight: |
29Kgs |
| Gross Weight: |
34Kgs |
| Noise: |
40dB |
| Packing Size: |
56*42*76cm |
| Oiless Air Compressor Motor : |
1pc |
| 3 Way-Springe : |
1pc |
| High Speed Handpiece Pipe: |
1pc |
| Low Speed Handpiece Pipe: |
1pc |
| Woodpecker Built in Ultrasonic Scaler: |
1pc |
| Ultrasonic Scaler Tips: |
5pcs (G1*2, G2*1, G4*1, P1*1) |
| Woodpecker Built in LED Light Curing Unit: |
1pc |
| High Suction(Ajust).: |
1pc |
| 6L Air Tank : |
1pc |
| Water Bottle: |
1pc |
| Drain Bottle: |
1pc |
| Foot Control: |
1pc |
