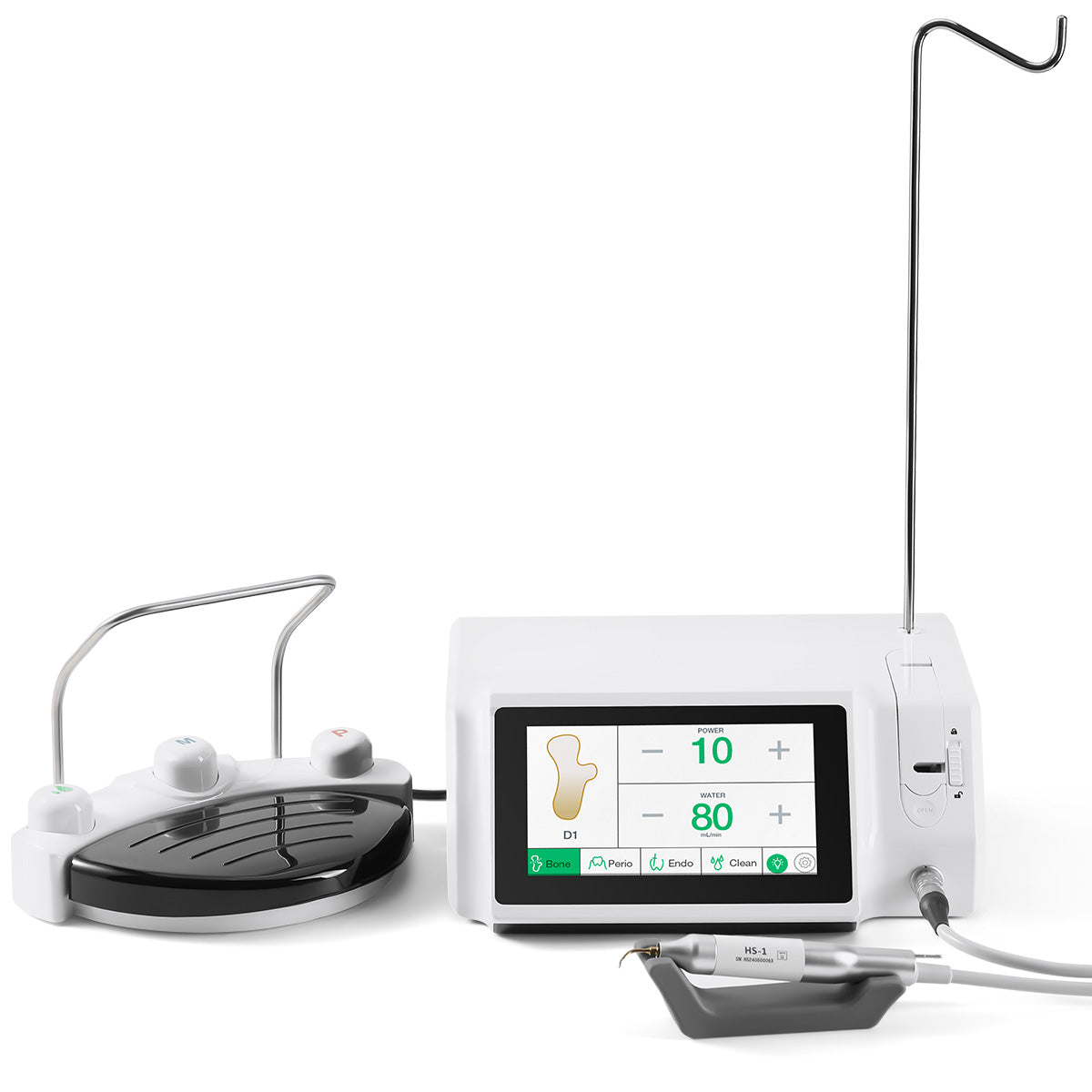

• Piezo surgery is a new system required for modern surgery and implant surgery, which can set up various operation modes and working tips to make the operation process smoother and improve the accuracy and efficiency of treatment.

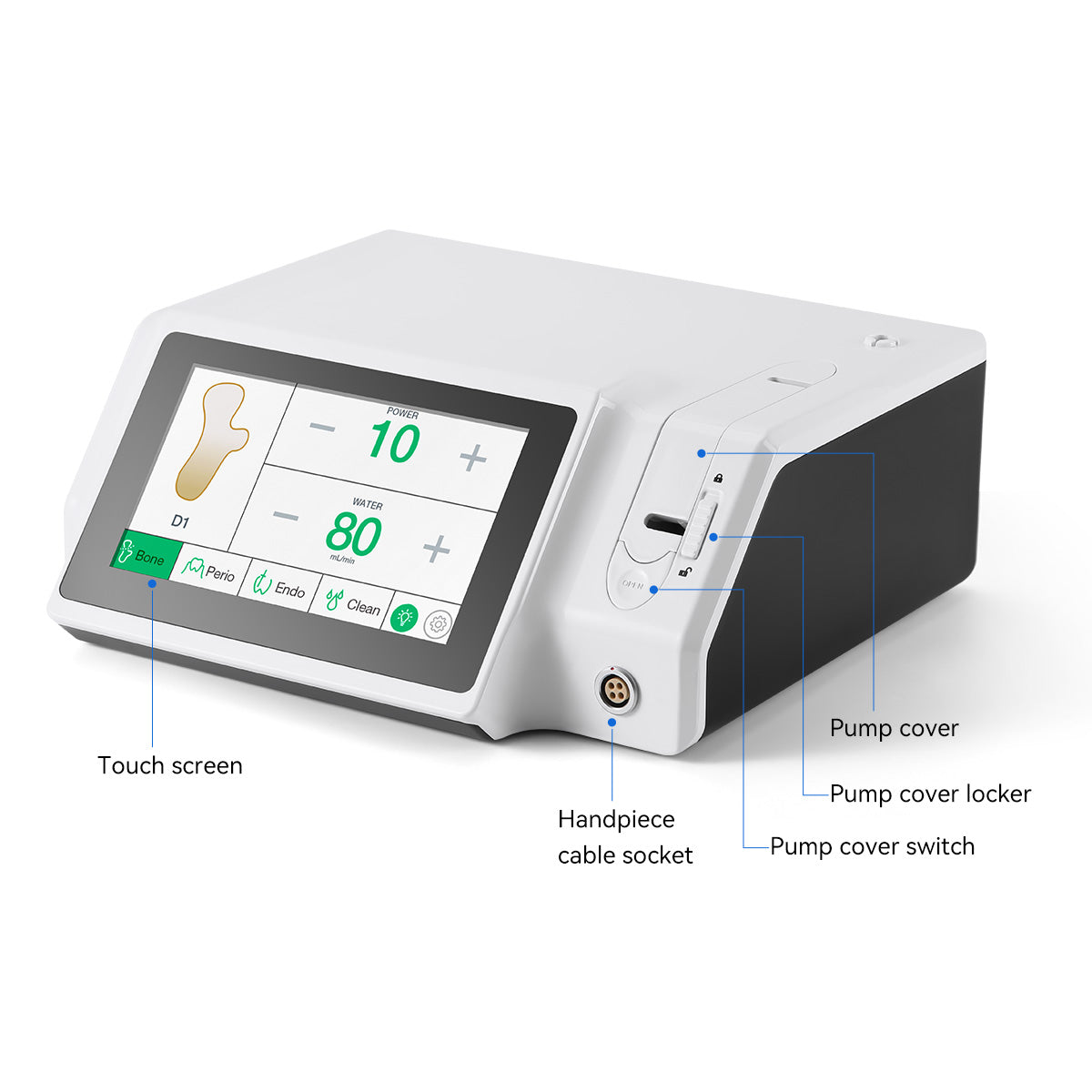

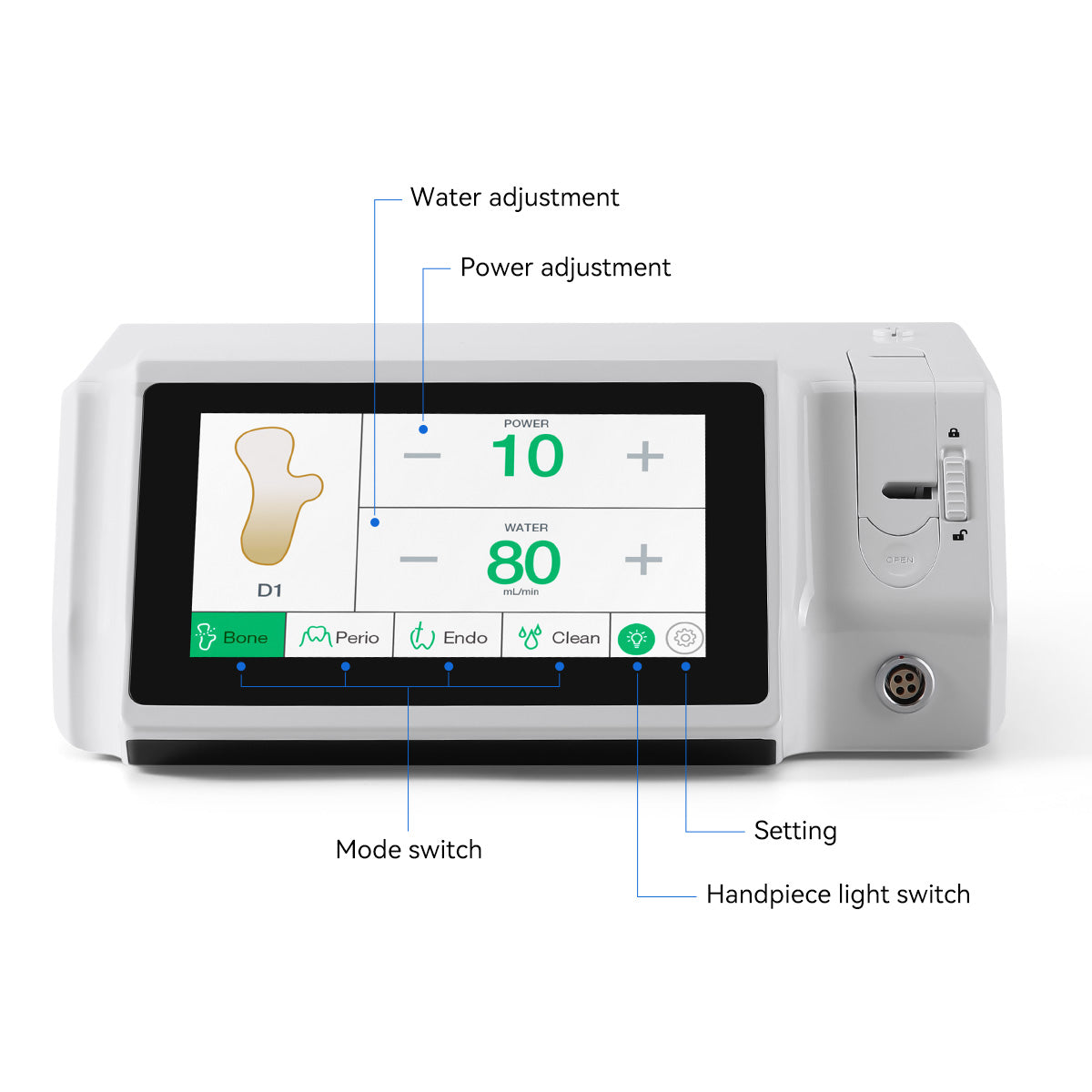

• Our piezo surgery features include a color touch screen, an intuitive user interface, and less-vibration LED handpiece.
• Effective positioning to achieve minimally invasive.
• Selective cutting with no damage on soft tissue.
• Lower noise gives you a better working experience and offers patients a more relaxed atmosphere.

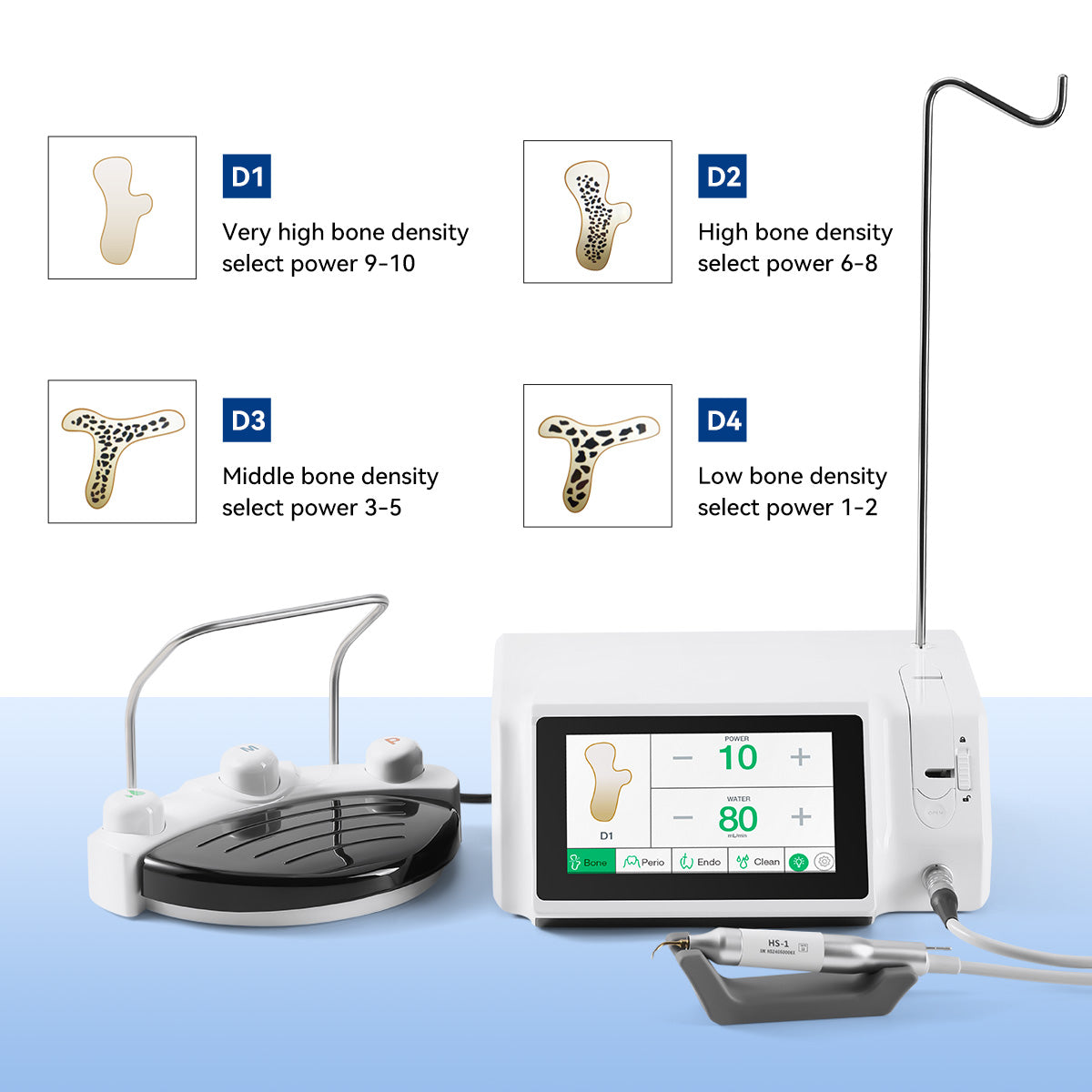

• Multi-mode operation, meet all your clinical needs.

• We offer remote installation guidance and maintenance services to ensure your product performs smoothly. Our professional team is ready to provide effective support tailored to your specific needs, helping you resolve any issues and address any concerns efficiently.  Contact Us

• Handpiece should be cleaned and disinfected immediately after surgery.
• The main unit and pedal cannot be disinfected.
• The cable line cannot be removed from the ultrasonic bonesurgery handpiece.

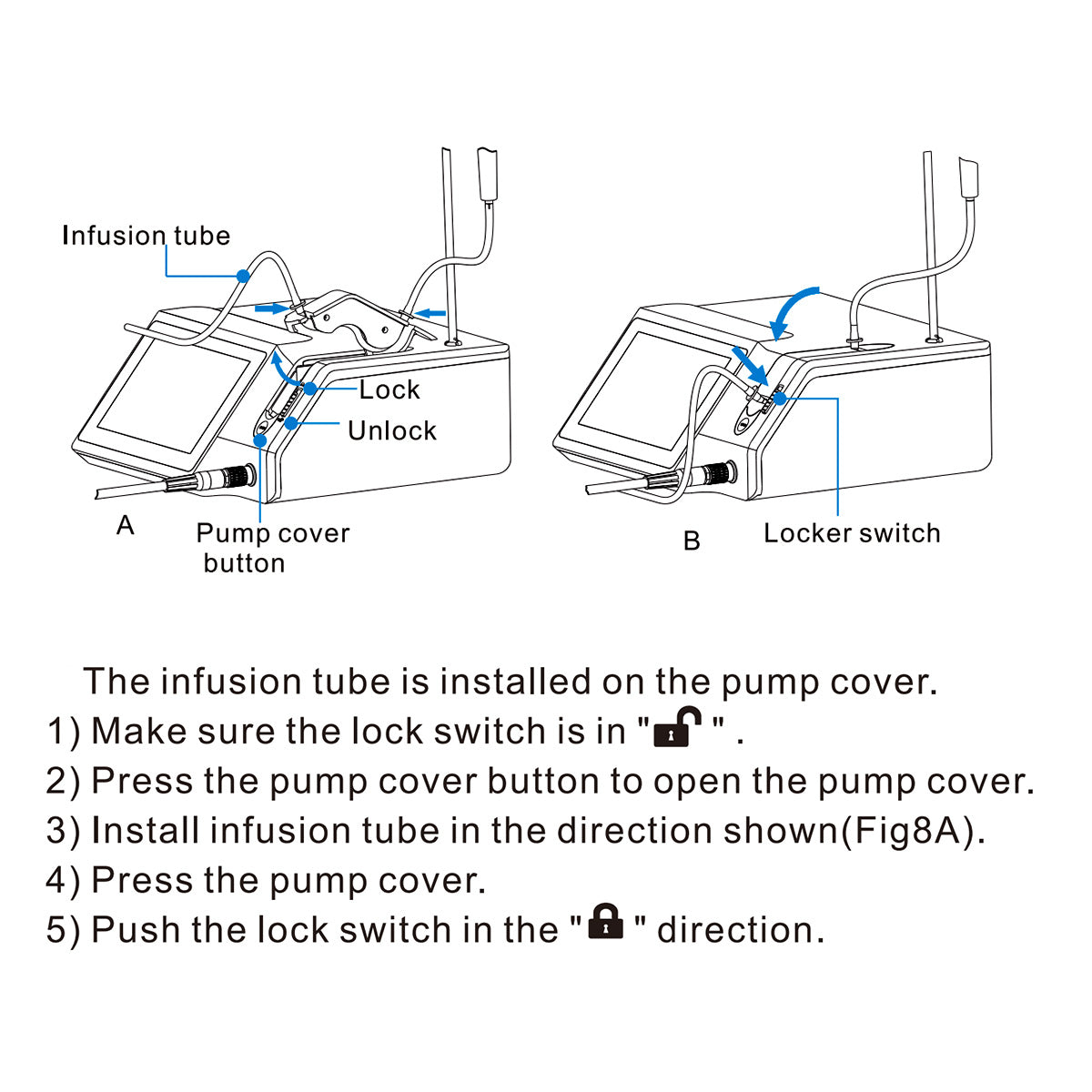

• Dispose water pipe after operation with the method of disposing medical waste.

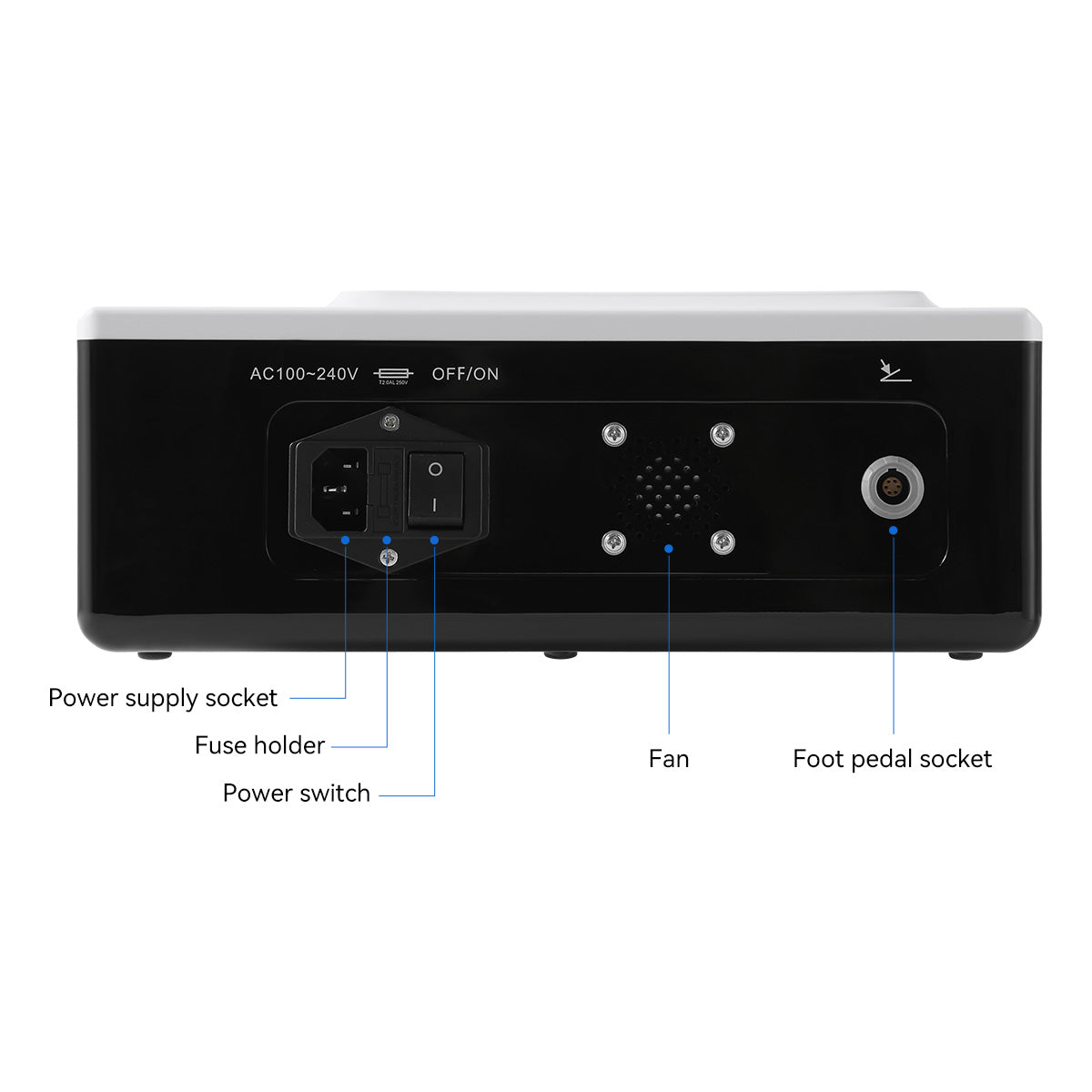

Host specifications

Power supply voltage: AC100~240V

Power supply frequency: 50/60Hz

Input power: 150VA

Dimension: 286mm x 252mm x 113mm

Weight: 3.2Kg

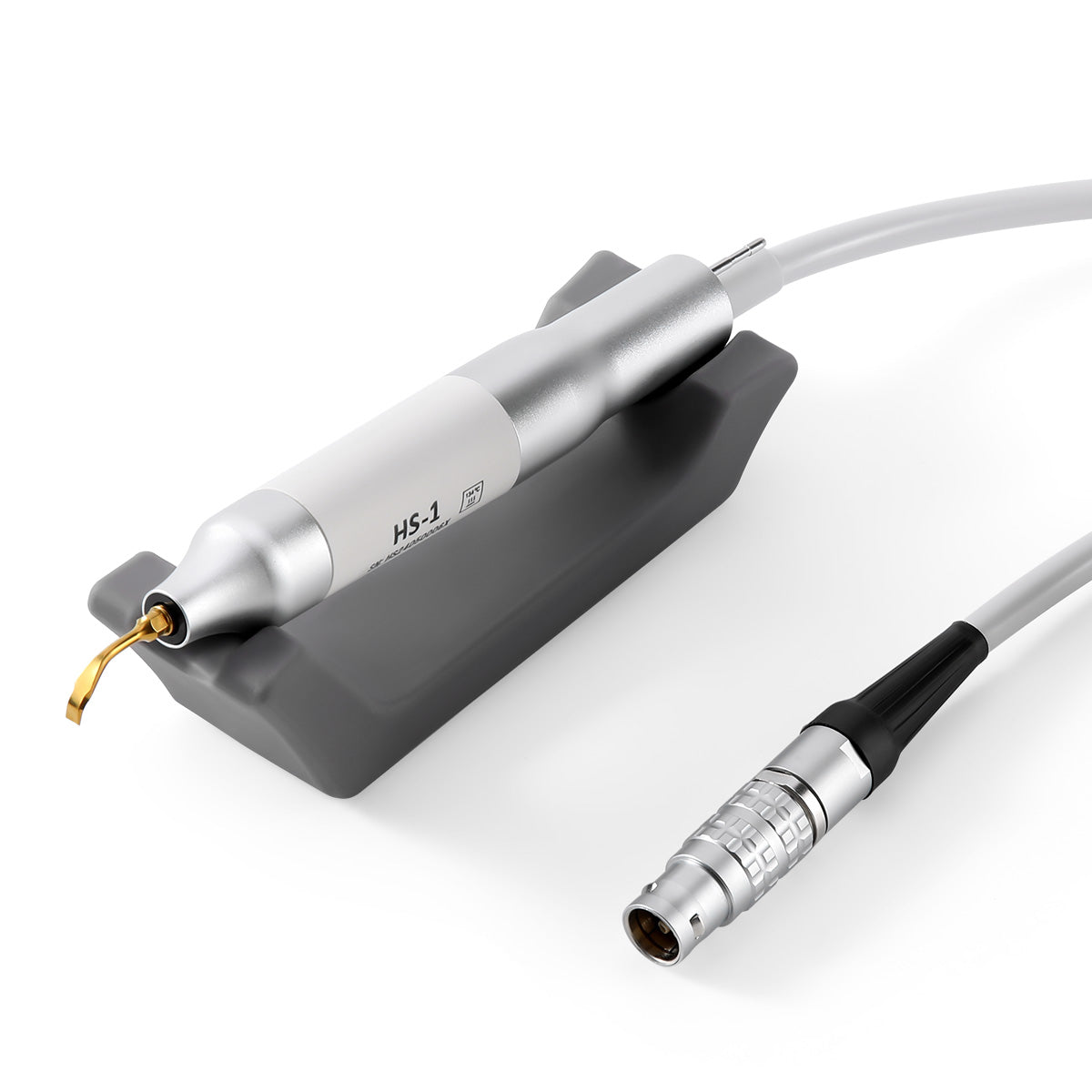

UItrasonic handpiece

Dimension: φ21.5mm x 110mm

Tail cord length: 2.3m

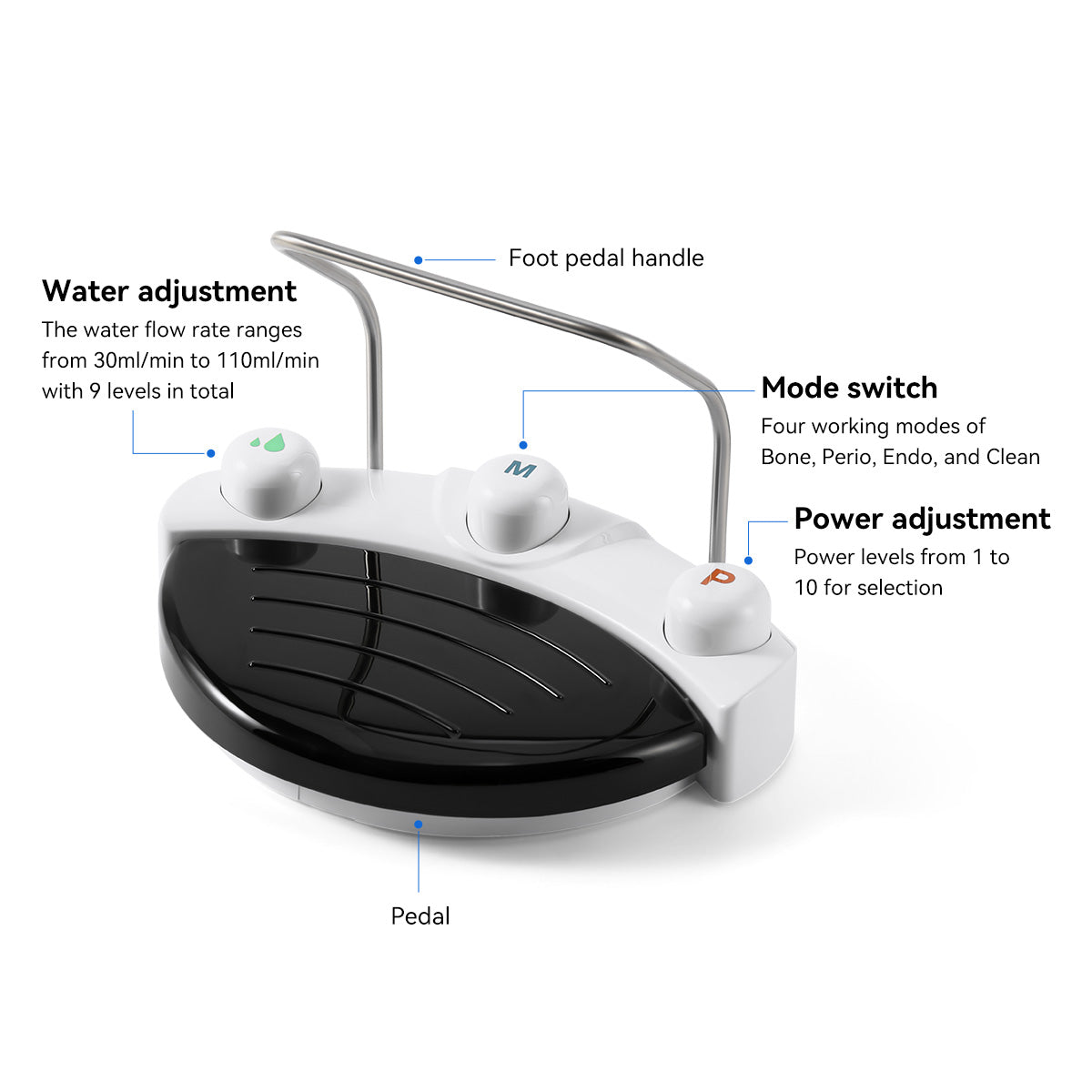

Foot pedal controller

Tail cord length: 2.0m

Working frequency

24kHz~36kHz

Water Flow

30~110ml/min

Foot pedal controller

Tail cord length: 1.9m

Operation environment

a)Environment temperature: 0°C~+40°C

b)Relative humidity: 30%~75%

c)Atmosphere pressure: 70kPa~106kPa

d)Temperature in the water inlet of water-cooling equipment is not higher than 25°C
