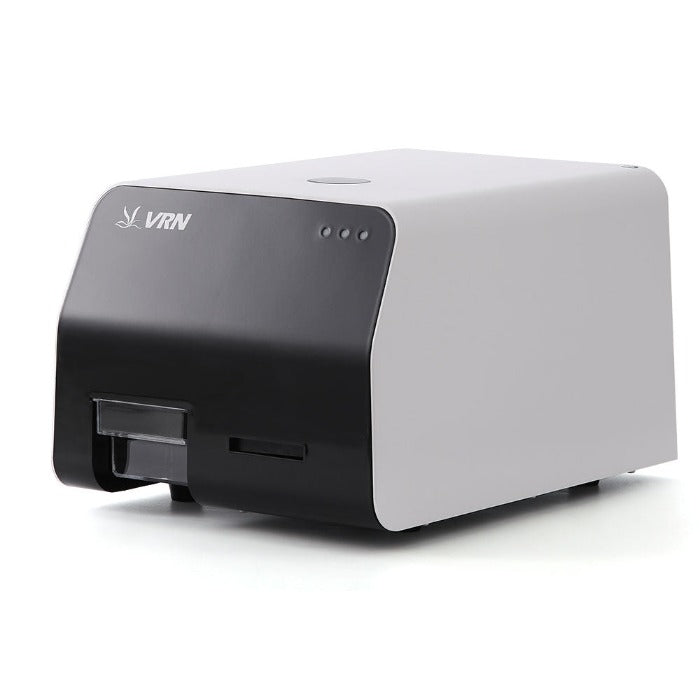

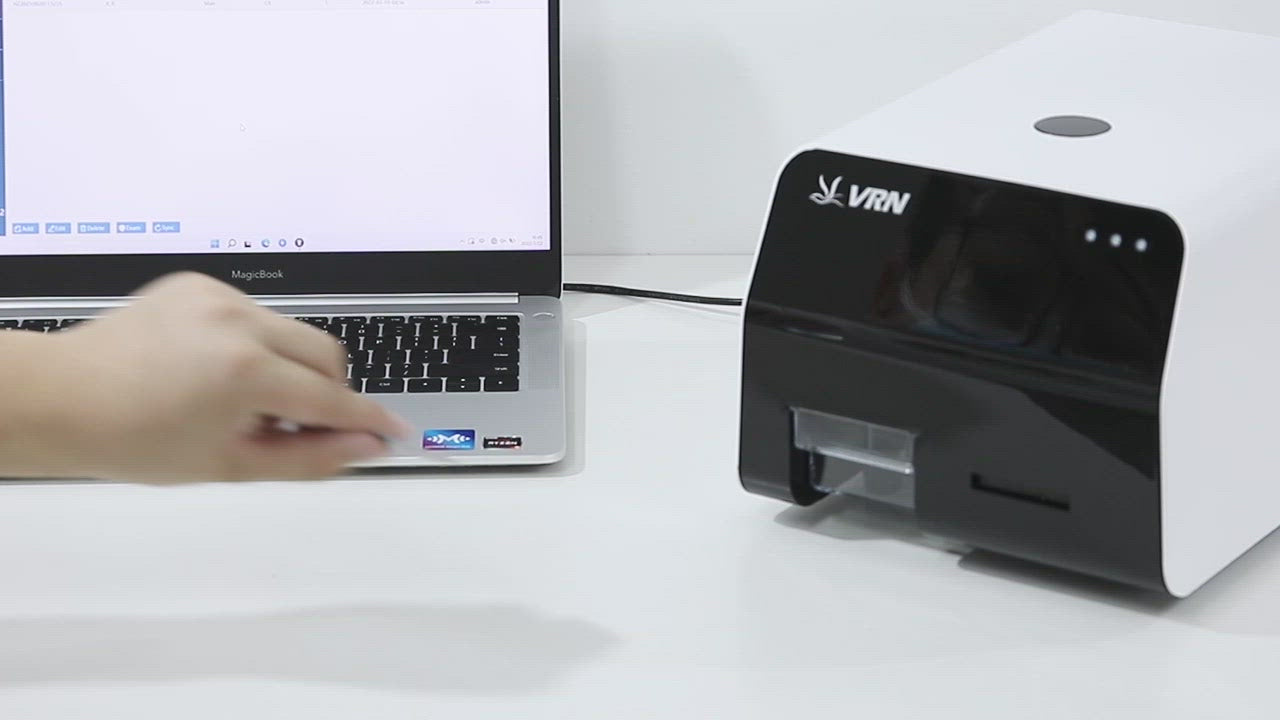

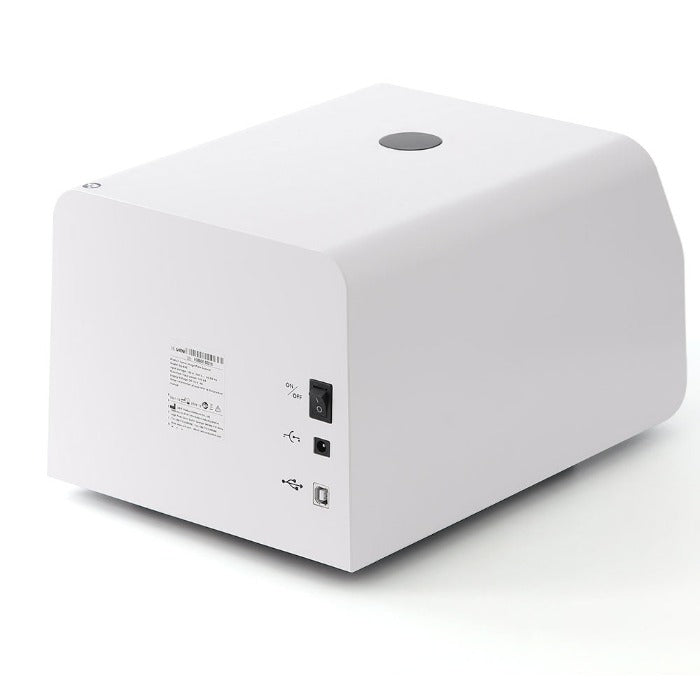

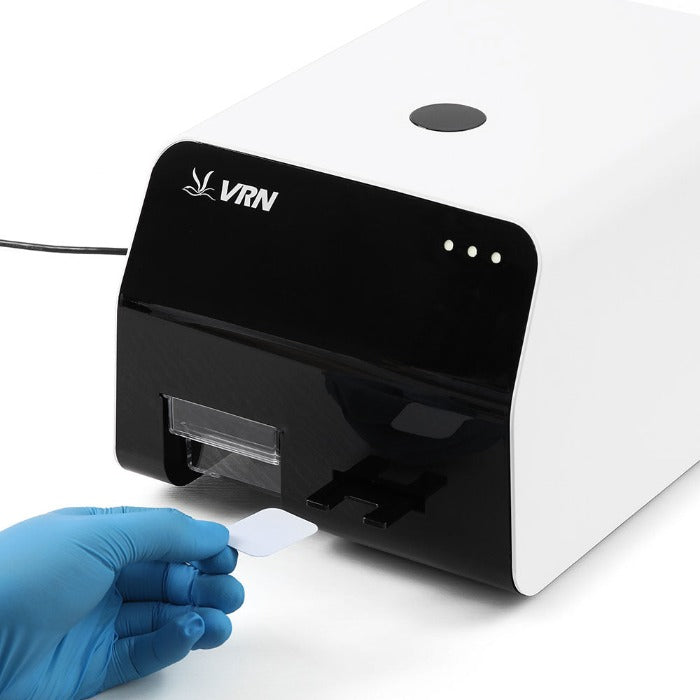

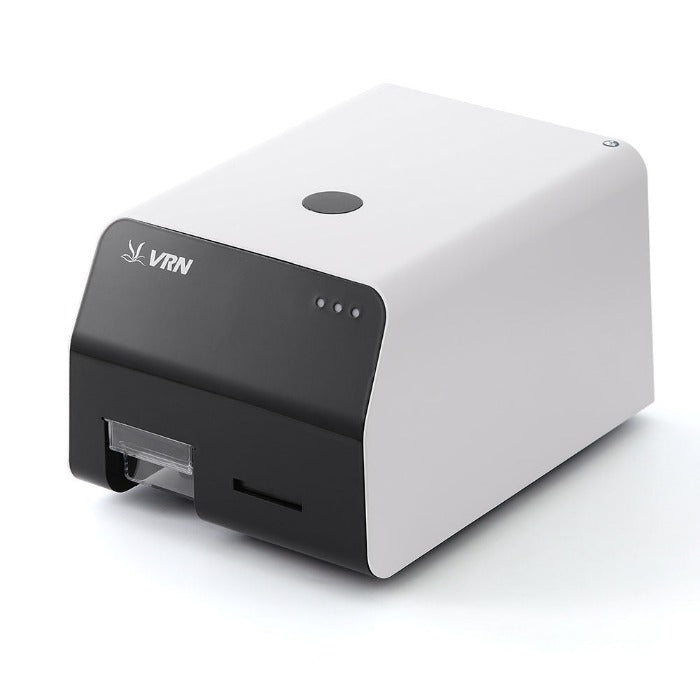

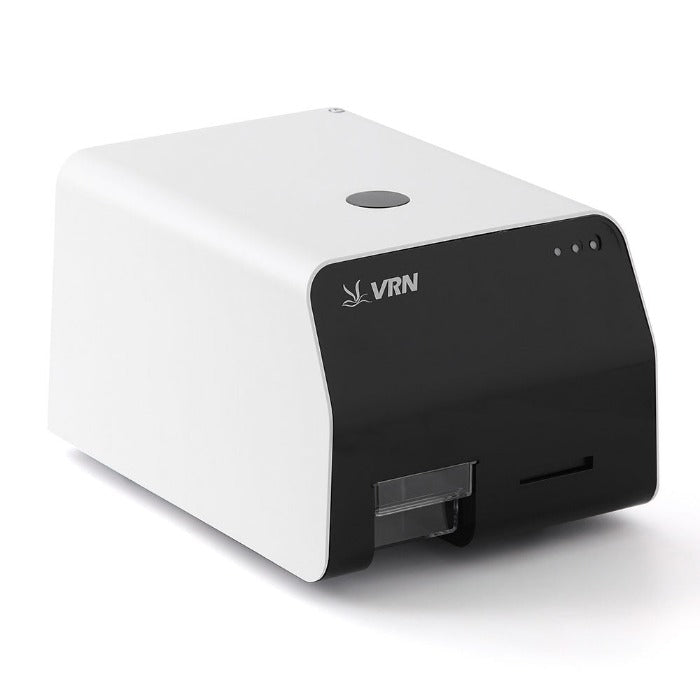

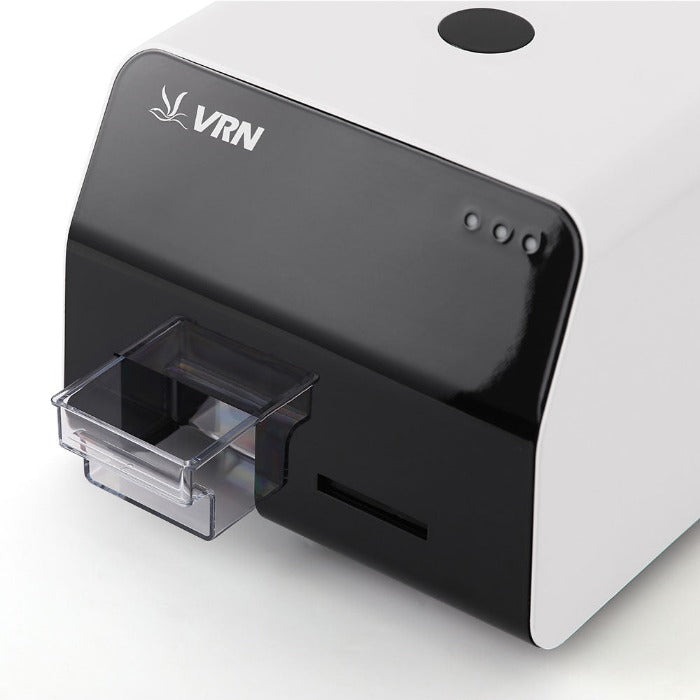

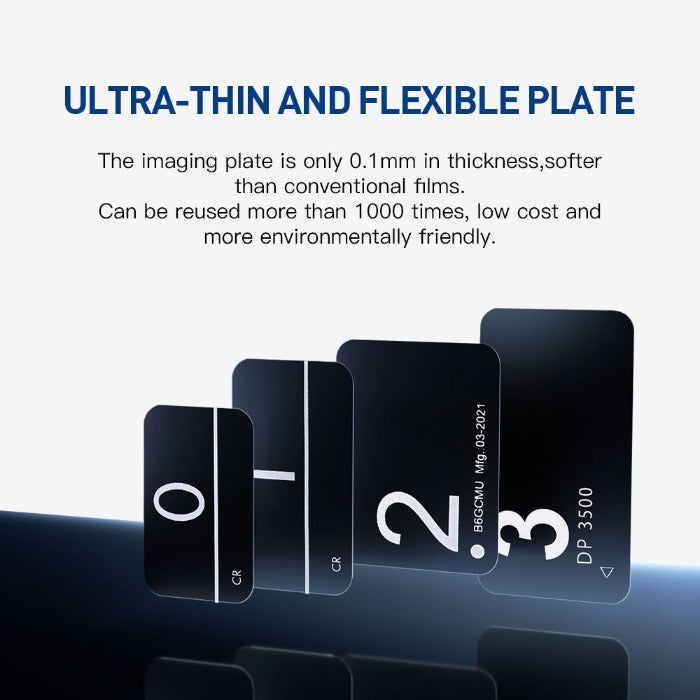

Dental Digital X-ray Imaging Phosphor Plate Scanner. Image grayscale up to 65536 levels (16Bit). High-performance FPGA chip,bring a smoother image processing. Comes with 4 sizes of plates, only 0.1mm in thickness, softer than conventional films. Can be reused more than 1000 times. Fast image reading in 15 seconds.

Pixel size:	35μm
True resolution:	14lp/mm
Bits per pixel/Gray scale:	16bit/65536
Operating voltage:	100-240VAC,50/60Hz

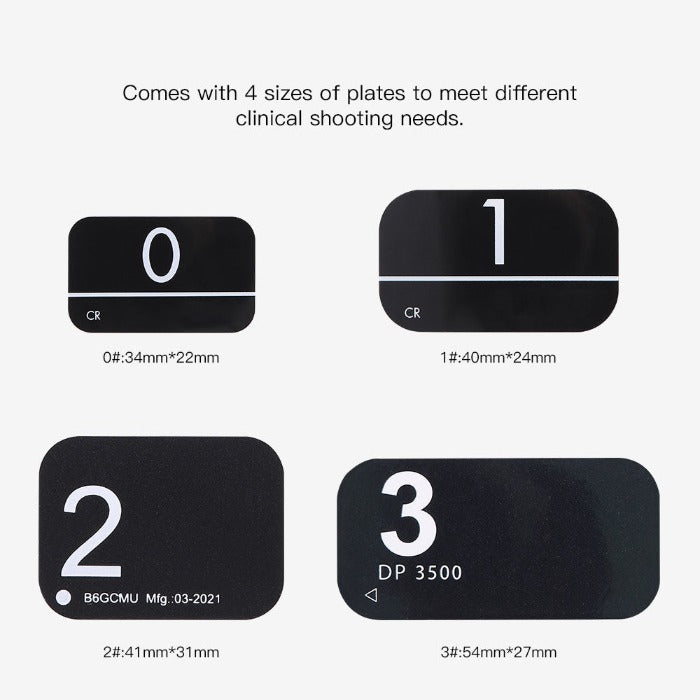

Imaging plate sizes:	size 0#：34mm*22mm size 1#：40mm*24mm size 2#：41mm*31mm size 3#：54mm*27mm

Work Environment

Temperature:	10℃-40℃
Relative humidity:	≤80%

Packing List

Main unit:	1 Set
USB flash drive:	1 Pc
Power adaptor:	1 Pc
Power line:	1 Pc
USB cable:	1 Pc
Intraoral image plate(0#):	1 Pc
Intraoral image plate(1#):	1 Pc
Intraoral image plate(2#):	1 Pc
Intraoral image plate(3#):	1 Pc
Protecting bag(0#):	1 Box (50pcs)
Protecting bag(1#:	1 Box (50pcs)
Protecting bag(2#):	1 Box (50pcs)
Protecting bag(3#):	1 Box (50pcs)
Instruction manual:	1 Pc
Certificate:	1 Pc

Computer Configuration：

Computer system	Standard Configuration	Minimum Configuration
Computer Hardware	CPU：Intel Pentium(R) 4 2.6G	CPU：Intel Pentium(R) 4 1.6G
	Memory：2G DDR high-speed memory	Memory：1G DDR high-speed memory
	Hard Disk：500G high-speed hard disk	Hard Disk：160G high-speed hard disk
	Monitor：1280×1024 liquid crystals	Monitor：1280×1024 liquid crystals
	Graphics Card: 64M or above	Graphics Card：32M or above
	Network Card：Network Card	Network Card：Network Card
Other Hardware	USB 2.0 port
Computer Operating System	Windows7，Windows8，Windows10，Windows11
