Dental Digital X-ray Imaging Phosphor Plate Scanner

Dental Digital X-ray Imaging Phosphor Plate Scanner. Image grayscale up to 65536 levels (16Bit). High-performance FPGA chip,bring a smoother image processing. Comes with 4 sizes of plates, only 0.1mm in thickness, softer than conventional films. Can be reused more than 1000 times. Fast image reading in 15 seconds.

Overview

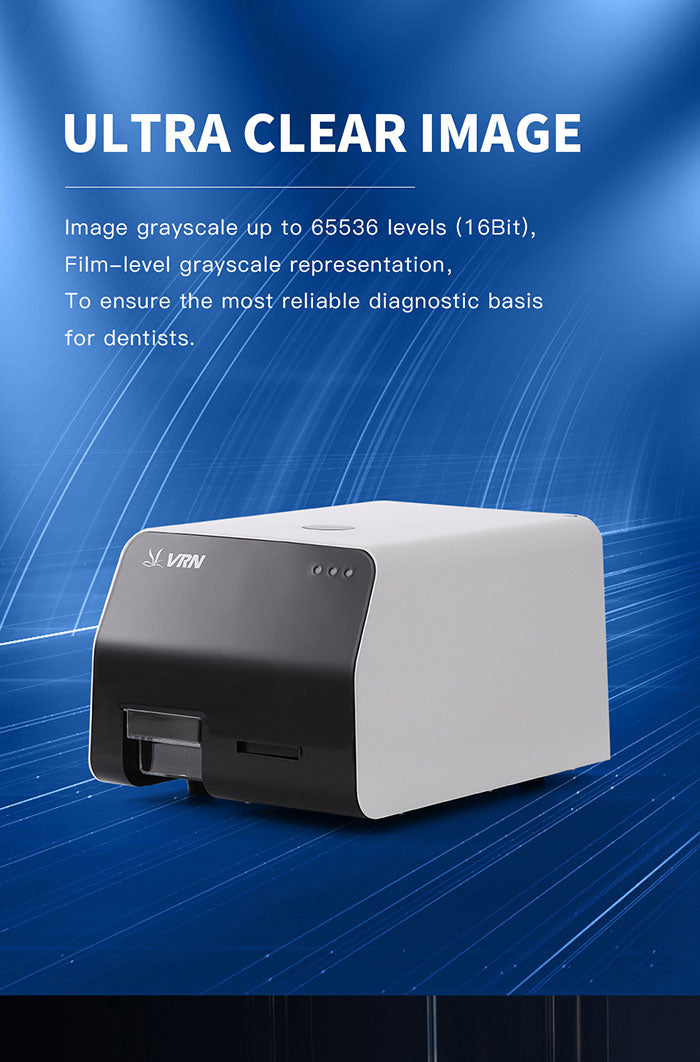

Image grayscale up to 65536 levels (16Bit).

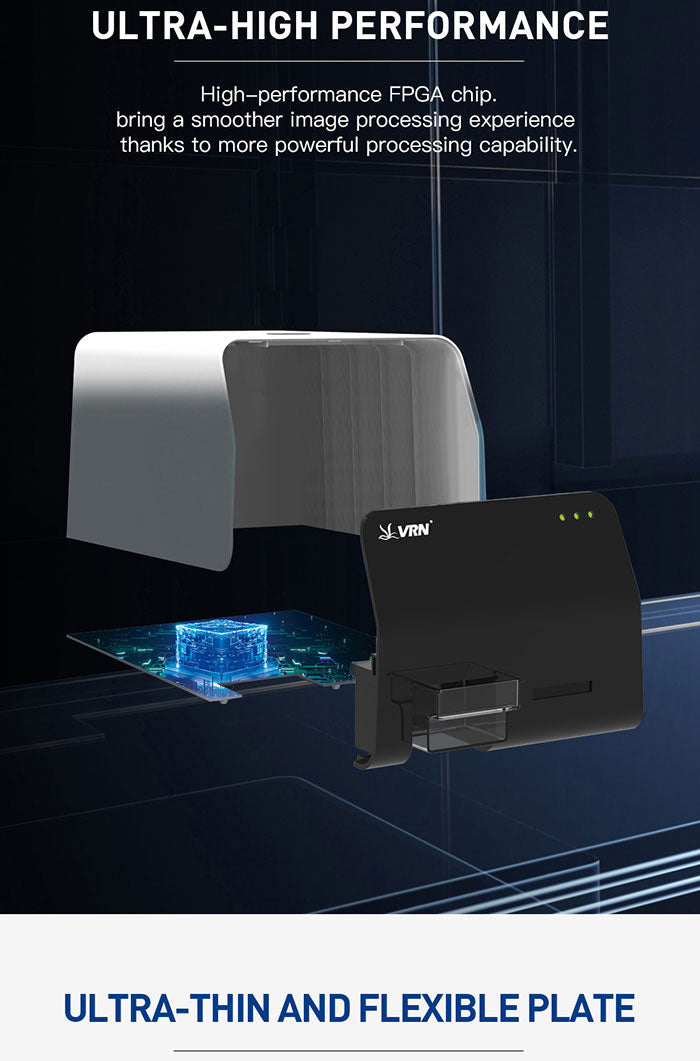

High-performance FPGA chip,bring a smoother image processing.

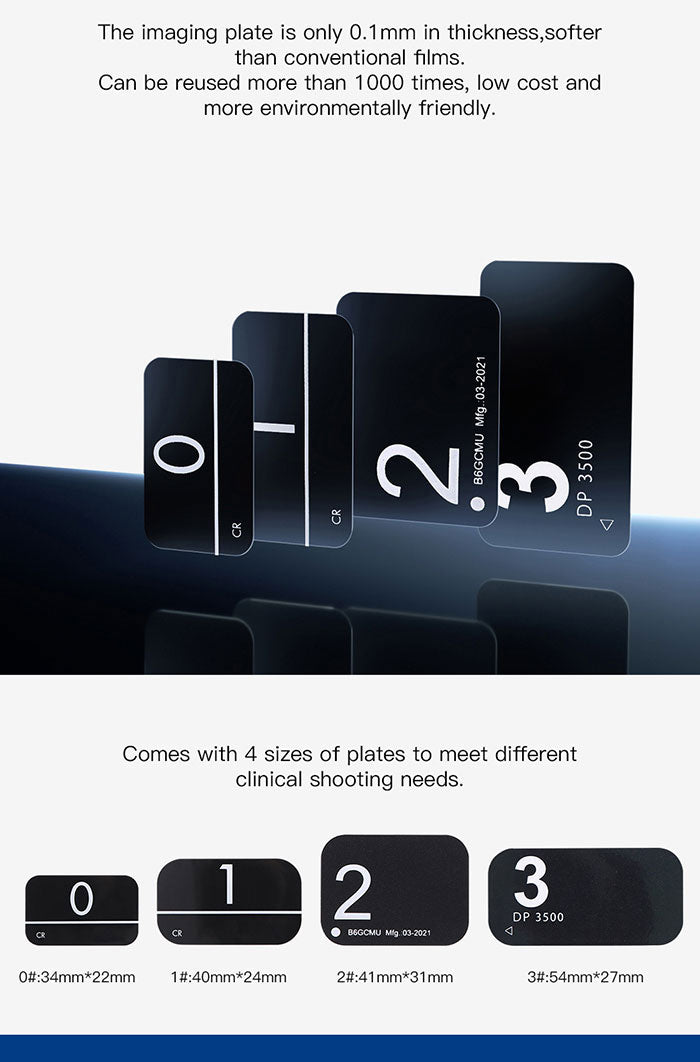

Comes with 4 sizes of plates to meet different clinical shooting needs.
The imaging plate is only 0.1mm in thickness,softer than conventional films.Can be reused more than 1000 times, low cost and more environmentally friendly.
Support shared imaging reading on the computer side of multiple office,realizes digital diagnosis and treatment,and makes doctor-patient communication more convenient.
Fast image reading in 15 seconds.

Specifications

Pixel size:	35μm
True resolution:	14lp/mm
Bits per pixel/Gray scale:	16bit/65536
Operating voltage:	100-240VAC,50/60Hz
Imaging plate sizes:	size 0#：34mm22mm size 1#：40mm24mm size 2#：41mm31mm size 3#：54mm27mm

Work Environment

Temperature:	10℃-40℃
Relative humidity:	≤80%

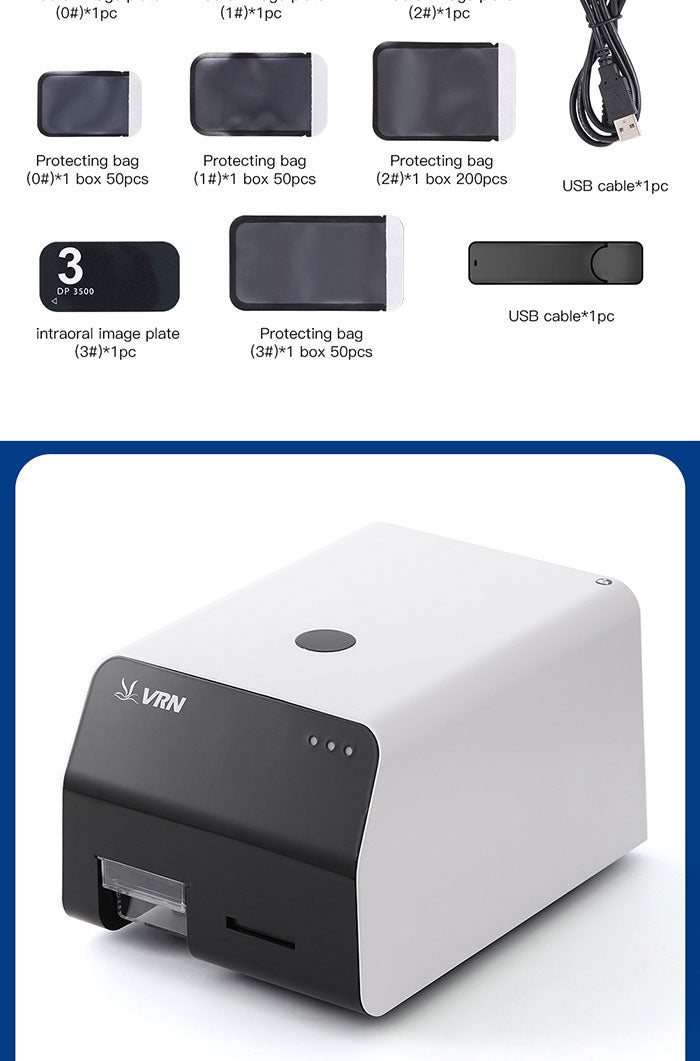

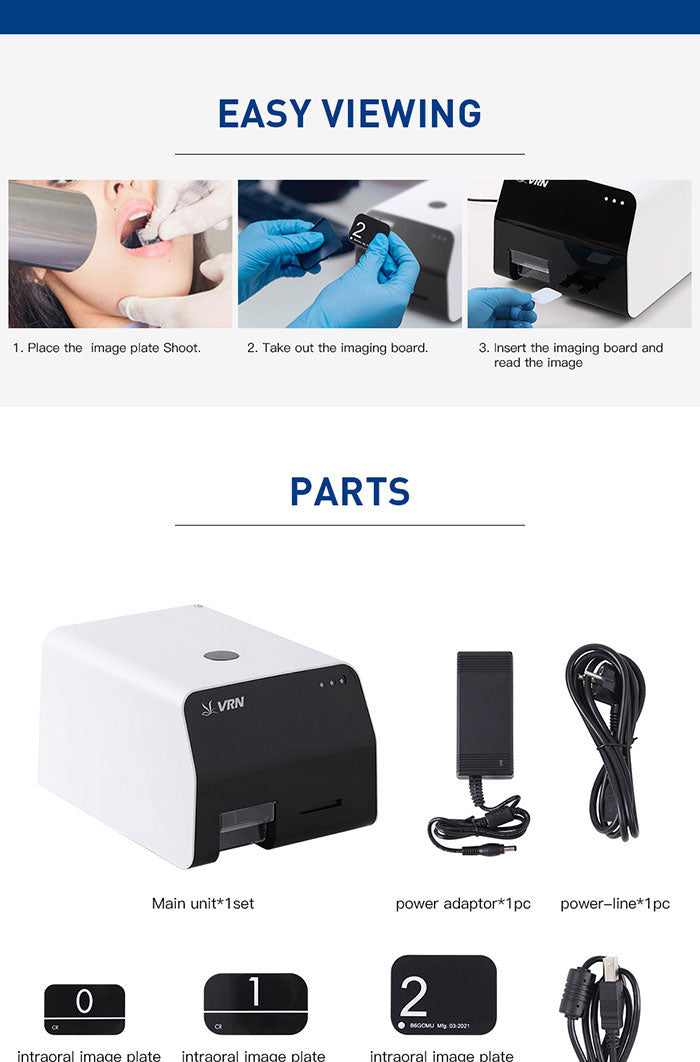

Packing List

Main unit:	1 Set
USB flash drive:	1 Pc
Power adaptor:	1 Pc
Power line:	1 Pc
USB cable:	1 Pc
Intraoral image plate(0#):	1 Pc
Intraoral image plate(1#):	1 Pc
Intraoral image plate(2#):	1 Pc
Intraoral image plate(3#):	1 Pc
Protecting bag(0#):	1 Box (50pcs)
Protecting bag(1#:	1 Box (50pcs)
Protecting bag(2#):	1 Box (50pcs)
Protecting bag(3#):	1 Box (50pcs)
Instruction manual:	1 Pc
Certificate:	1 Pc

Computer Configuration：

Computer system	Standard Configuration	Minimum Configuration
Computer Hardware	CPU：Intel Pentium(R) 4 2.6G	CPU：Intel Pentium(R) 4 1.6G
	Memory：2G DDR high-speed memory	Memory：1G DDR high-speed memory
	Hard Disk：500G high-speed hard disk	Hard Disk：160G high-speed hard disk
	Monitor：1280×1024 liquid crystals	Monitor：1280×1024 liquid crystals
	Graphics Card: 64M or above	Graphics Card：32M or above
	Network Card：Network Card	Network Card：Network Card
Other Hardware	USB 2.0 port
Computer Operating System	Windows7，Windows8，Windows10，Windows11

Dental Digital X-ray Imaging Phosphor Plate Scanner

Sku: 102110005

$1,999.99
