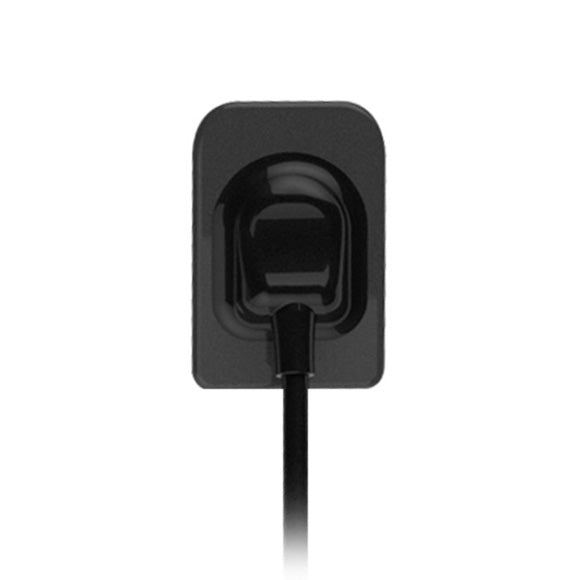

iRay Dental X-Ray Digital Intra-oral Sensor CMOS Detector Technology High Resolution Pluto 0015X. FDA approved. One year warranty. It features a 20 μm pixel pitch CMOS sensor with CsI scintillator which ensures optimal resolution. The sensor has an ergonomic design with smooth edges, rounded corners, and a flexible cable for maxi-mum patient comfort. An easy to use hi-speed direct USB interface enables a simple con-nection to a PC without need for an additional control box.

Note:

1. The sensor comes with its own DR software, which is lifetime free use.
2. Works with TWAIN supported software, Eaglesoft, Dexis and TigerView.
3. The computer operating system adapted by our products is win7, win10 ,win11.
4. Check before the purchase, make sure your software and PC meet the required specifications for smooth operation.

Overview

CMOS detector technology
Low dose clinical imaging
High resolution
Ensures optimal resolution with a 20 μm pixel pitch CMOS sensor and CSI scintillator.
Wide dynamic range
Slim, rounded corner and smooth edge
Direct USB connectivity
Easy to Use. Smart and Powerful Software. Waterproof. Durable.
AED trigger, fast and easy workflow
Durable material and components
Friendly software user interface
Works with TWAIN supported software, works well with Eaglesoft, Dexis and TigerView.

Technical Parameter

Model:	Pluto 0001X	Pluto 0015X	Pluto 0002X
Detector Technology:	CMOS	CMOS	CMOS
Scintillator:	Direectly deposited CsI: TI	Direectly deposited CsI: TI	Direectly deposited CsI: TI
Pixel Pitch (μm):	20	20	20
Active Area (mm²):	20 x 30	24 x 33	26 x 36
AD Conversion (bit):	14	14	14
Exposure Mode:	Smart AED	Smart AED	Smart AED
X-ray Exposure Window (s):	Max. 5s	Max. 5s	Max. 5s
X-ray Energy Range (kV):	55～100kV	55～100kV	55～100kV
Data Interface:	USB 2.0	USB 2.0	USB 2.0
Power Dissipation (W):	≤0.8W	≤0.8W	≤0.8W
Dimensions (mm3):	25.03 × 38.53 × 4.5	29.2x 43.5 x 4.5	31.62 × 45.0 × 4.5
Length of cable(m):	3m(Standard), 5m(Option)	3m(Standard), 5m(Option)	3m(Standard), 5m(Option)
Housing material:	Kevlar	Kevlar	Kevlar
X-Ray shielding:	Pb-shield behind active area	Pb-shield behind active area	Pb-shield behind active area
Radiation dose:	≥ 50Gy	≥ 50Gy	≥ 50Gy
Ingress Protection:	IP68	IP68	IP68
Operating Temperature (℃):	10 ~ 40	10 ~ 40	10 ~ 40
Storage & Transport Temperature with Package (℃):	-10~60	-10~60	-10~60
Operating Humidity (% RH):	20 ~ 90 (Non-Condensing)	20 ~ 90 (Non-Condensing)	20 ~ 90 (Non-Condensing)
Storage & Transport Humidity with Package (% RH):	10 ~ 95 (Non-Condensing)	10 ~ 95 (Non-Condensing)	10 ~ 95 (Non-Condensing)

Computer Configuration

Computer system	Recommended configuration	Minimum configuration
	CPU：Intel Core i3 (R) frequency≥ 2.5G	CPU：IntelPentium(R) frequency≥ 2.0G
	Memory: 8gddr3 / 4 high speed memory	Memory: 4gddr3 / 4 high speed memory
	Hard disk: 1t high speed hard disk	Hard disk: 500g high speed hard disk
	Display:resolution 1920×1080	Display: resolution 1280×768
	Network card: pci-e100m adaptive network card	Network card: pci-e100m adaptive network card
Other Hardware:	Serial communication support, USB2 0 interface	Serial communication support, USB2 0 interface
Operating System:	Win7，Win10，Win11	Win7，Win10，Win11

iRay Dental X-Ray Digital Intra-oral Sensor CMOS Detector Technology High Resolution Pluto 0015X

Name: iRay Dental X-Ray Digital Intra-oral Sensor CMOS Detector Technology High Resolution Pluto 0015X
Brand: iRay
SKU: 22902005
Price: 1999.00 USD
Availability: InStock

Warehouse For US

Ships in 3-5 Days For US customers. (We can't ship to PO Box address!)

SKU: 22902005

$1,999.00

5%OFF Order Over $200

10%OFF Order Over $1000

Free Shipping

United States: in 5-15 days. Other Countries: in 15-30 days.

30-Day Return or Refund

We allow customers to apply for return or refund, exchange within 30 days after the receipt of the goods. If 30 days have gone by since your receipt of the goods, unfortunately we can’t offer you a refund or exchange.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
