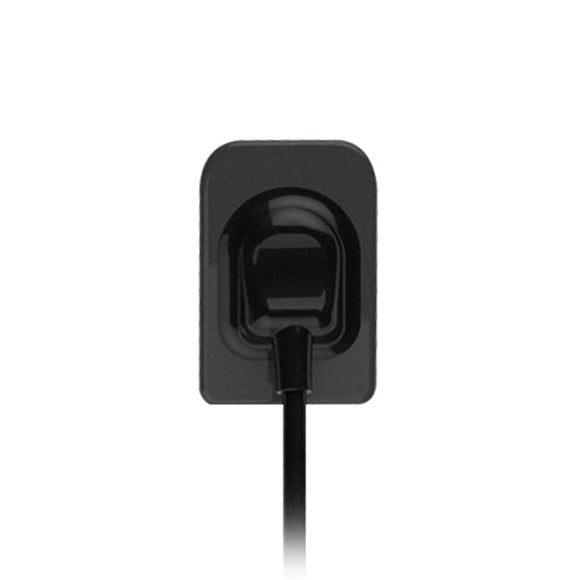

iRay Dental X-Ray Digital Intra-oral Sensor CMOS Detector Technology High Resolution Pluto 0001X. FDA approved. One year warranty. Pluto 0001X is digital size-1 intra-oral sensor. It features a 20 μm pixel pitch CMOS sensor with CsI scintillator which ensures optimal resolution. The sensor has an ergonomic design with smooth edges, rounded corners, and a flexible cable for maxi-mum patient comfort. An easy to use hi-speed direct USB interface enables a simple con-nection to a PC without need for an additional control box.
Note:
1. The sensor comes with its own DR software, which is lifetime free use.
2. Works with TWAIN supported software, Eaglesoft, Dexis and TigerView.
3. The computer operating system adapted by our products is win7, win10 ,win11.
4. Check before the purchase, make sure your software and PC meet the required specifications for smooth operation.
- CMOS detector technology
- Low dose clinical imaging
- High resolution
- Ensures optimal resolution with a 20 μm pixel pitch CMOS sensor and CSI scintillator.
- Wide dynamic range
- Pluto 0001X suitable for children and adults
- Pluto 0002X suitable for adults
- Slim, rounded corner and smooth edge
- Direct USB connectivity
- Easy to Use. Smart and Powerful Software. Waterproof. Durable.
- AED trigger, fast and easy workflow
- Durable material and components
- Friendly software user interface
- Works with TWAIN supported software, works well with Eaglesoft, Dexis and TigerView.
|
| Model: |
Pluto 0001X |
Pluto 0015X |
Pluto 0002X |
| Detector Technology: |
CMOS |
CMOS |
CMOS |
| Scintillator: |
Direectly deposited CsI: TI |
Direectly deposited CsI: TI |
Direectly deposited CsI: TI |
| Pixel Pitch (μm): |
20 |
20 |
20 |
| Active Area (mm²): |
20 x 30 |
24 x 33 |
26 x 36 |
| AD Conversion (bit): |
14 |
14 |
14 |
| Exposure Mode: |
Smart AED |
Smart AED |
Smart AED |
| X-ray Exposure Window (s): |
Max. 5s |
Max. 5s |
Max. 5s |
| X-ray Energy Range (kV): |
55～100kV |
55～100kV |
55～100kV |
| Data Interface: |
5G Wifi |
5G Wifi |
5G Wifi |
| Power Dissipation (W): |
≤0.8W |
≤0.8W |
≤0.8W |
| Dimensions (mm3): |
25.03 × 38.53 × 4.5 |
29.2x 43.5 x 4.5 |
31.62 × 45.0 × 4.5 |
| Length of cable(m): |
3m(Standard), 5m(Option) |
3m(Standard), 5m(Option) |
3m(Standard), 5m(Option) |
| Housing material: |
Kevlar |
Kevlar |
Kevlar |
| X-Ray shielding: |
Pb-shield behind active area |
Pb-shield behind active area |
Pb-shield behind active area |
| Radiation dose: |
≥ 50Gy |
≥ 50Gy |
≥ 50Gy |
| Ingress Protection: |
IP68 |
IP68 |
IP68 |
| Operating Temperature (℃): |
10 ~ 40 |
10 ~ 40 |
10 ~ 40 |
| Storage & Transport Temperature with Package (℃): |
-10~60 |
-10~60 |
-10~60 |
| Operating Humidity (% RH): |
20 ~ 90 (Non-Condensing) |
20 ~ 90 (Non-Condensing) |
20 ~ 90 (Non-Condensing) |
| Storage & Transport Humidity with Package (% RH): |
10 ~ 95 (Non-Condensing) |
10 ~ 95 (Non-Condensing) |
10 ~ 95 (Non-Condensing) |
| Computer system |
Recommended configuration |
Minimum configuration |
|
CPU：Intel Core i3 (R)
frequency≥ 2.5G |
CPU：IntelPentium(R) frequency≥
2.0G |
|
Memory: 8gddr3 / 4 high speed memory |
Memory: 4gddr3 / 4 high speed memory |
|
Hard disk: 1t high speed hard disk |
Hard disk: 500g high speed hard disk
|
|
Display:resolution 1920×1080 |
Display: resolution 1280×768 |
|
Network card: pci-e100m adaptive
network card |
Network card: pci-e100m adaptive
network card |
| Other Hardware: |
Serial communication support, USB2 0 interface
|
Serial communication support, USB2 0 interface |
| Operating System: |
Win7，Win10，Win11 |
Win7，Win10，Win11 |
