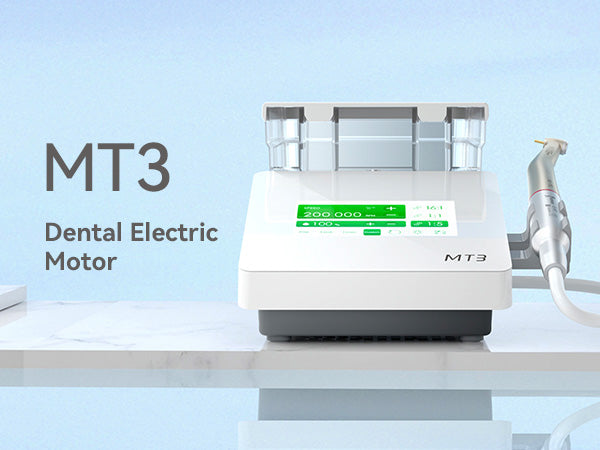

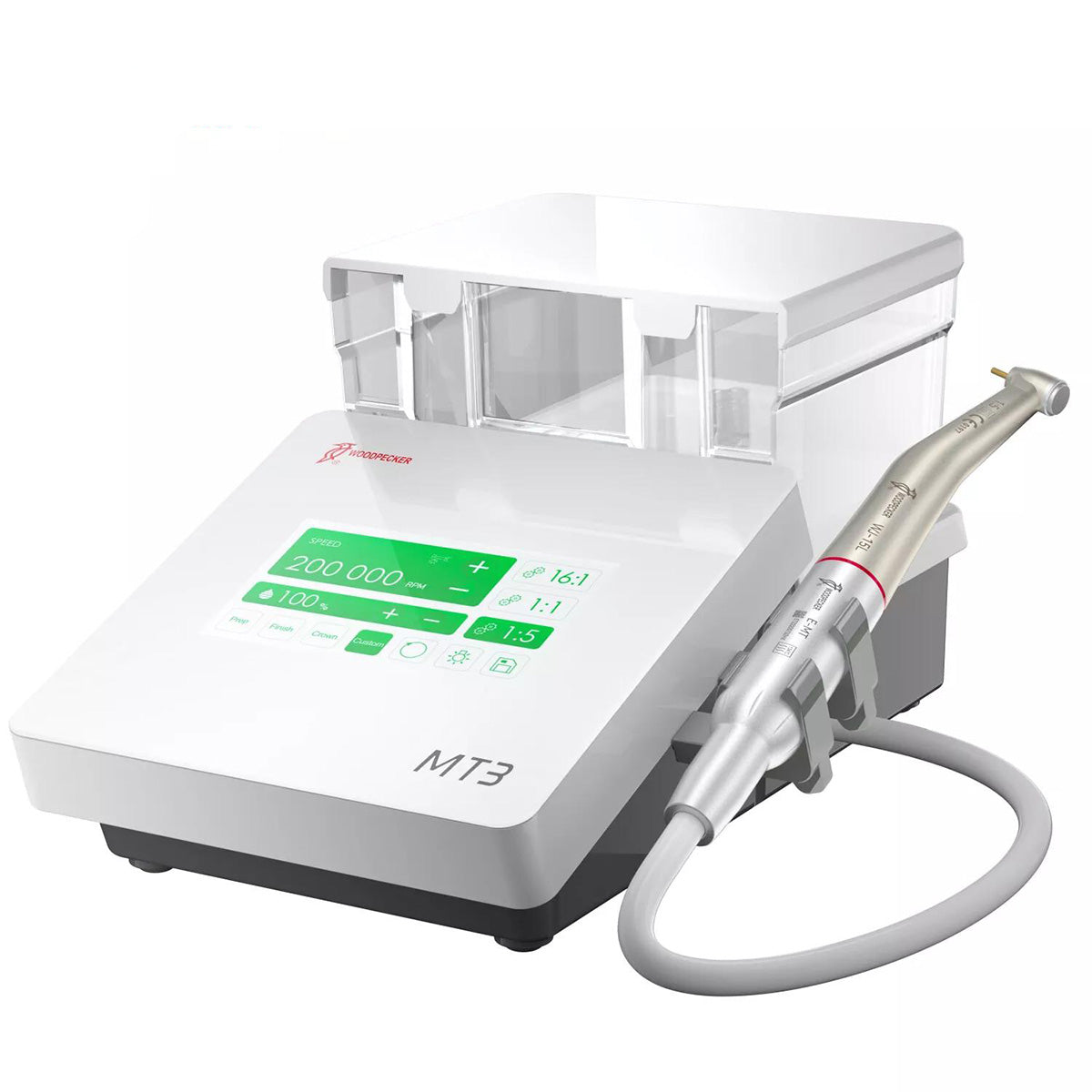

Woodpecker Dental MT3 Electric Motor Brushless with 1:5 Contra Angle & Water Supply System. FDA Certificated, Two Year Warranty. Brushless micromotor, max speed: 200,000rpm. Touch Screen panel offers better operation. 32,000lux white led in the motor, compatible with fiber optic contra angle. Digital speed read-out, Easy speed adjustment. Three optional settings(1:1/16:1/1:5). E-Type coupler.

Overview

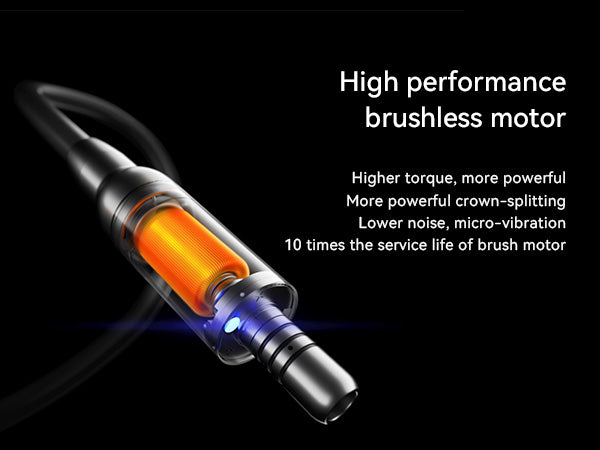

Brushless micromotor, max speed: 200,000rpm
32,000lux white led in the motor, compatible with fiber optic contra angle

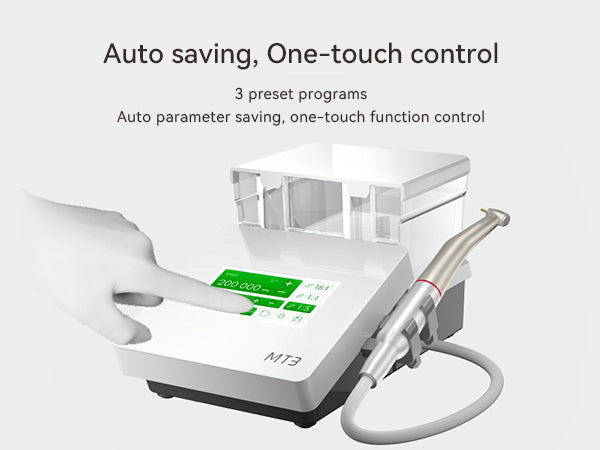

Touch Screen panel offers better operation

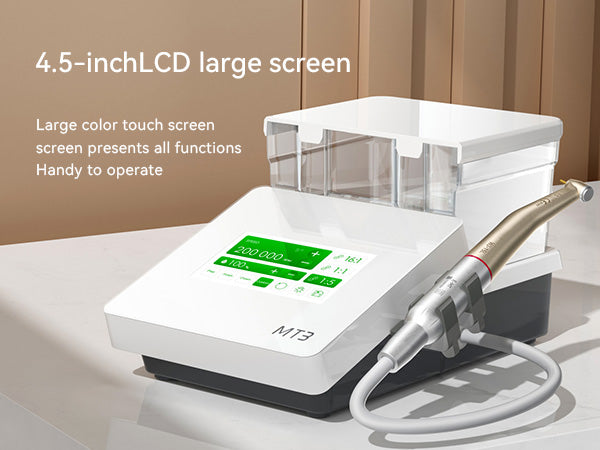

3.5 inch LCD Screen, presents all function.
Digital speed read-out, Easy speed adjustment
Three optional settings(1:1/16:1/1:5)
E-Type coupler

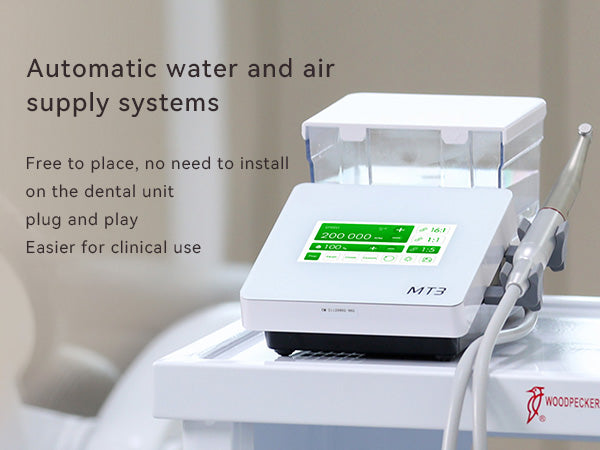

MT3 Working independently, no need to connect
with dental unit, so it can be used without an air compressor/ delivery unit connection

Indications for Use

The MT3 dental electric motor is intended for use in general dental applications such as: cutting a tooth for cavity preparation, crown preparation, crown finishing, inlay, filing, polishing, prophylaxis and endodontic treatment.
The Dental Electric Motor can be used with a ISO E-type straight, right-angle or contra-angle handpiece attachment of equal, gear-reducing, or gear increasing speed.

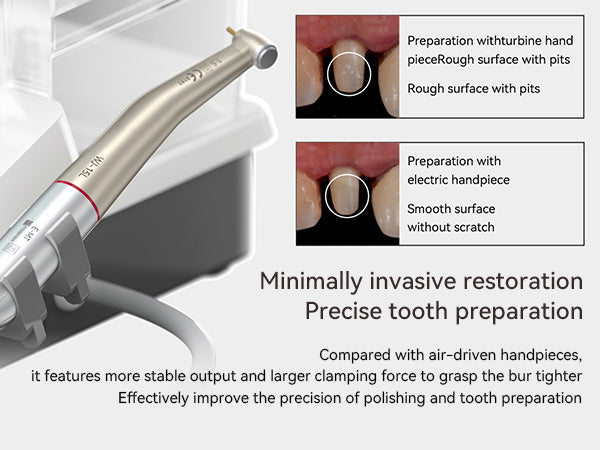

The contra-angle handpieces (model:WJ-15, WJ-15L) are driven by a micro-motor to rotate at a specified speed, so as to drive the dental bur. It is applicable to drilling and grinding in dental surgery.

Warranty

2 Year for Main Unit.
1 Year for Motor with Cable and Contra Angle.

Specification of Dental Electric Motor

Model:	Dental Electric Motor
16:1 contra angle:	300rpm (M1)-1500rpm (M2)
1:1 contra angle:	10,000rpm(M1)-30,000rpm(M2)
1:5 contra angle:	50,000rpm(M1)-200,000rpm(M2)
Working air pressure:	0.25Mpa-0.4Mpa
Water Pressure:	0.2Mpa-0.4 Mpa
Charge Adaper:	110V-220V 50/60Hz
Torque:	64Ncm

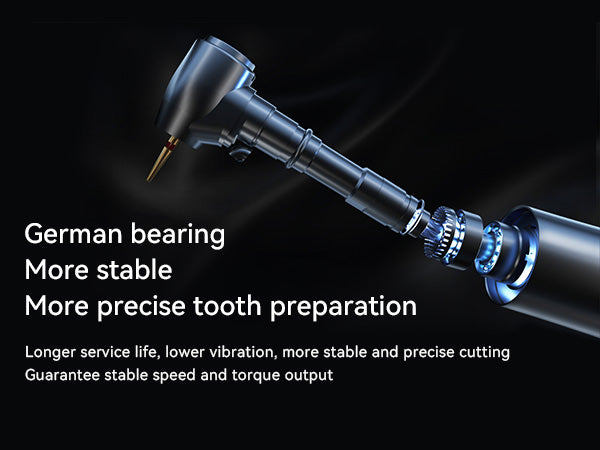

Specification of 1: 5 Contra angle

Model:	1: 5 Contra angle
Increasing:	1:5 ratio
Torque:	64Ncm
Clamping force:	＞4.0kg
Rotation Speed:	200,000rpm/min
Chuck Type:	Push Button
Brightness:	32000Lux
Noise:	≤58dB
Bur Applicable:	Φ1.59-1.60mm
Connector:	ISO Standard connector

Packing List

LCD Mail Unit with 750ml Water Tank:	1
Motor with cable and LED light:	1
Manual:	1
Power Adapter:	1
