Woodpecker Dental Implant Air Implant Motor & 20:1 LED contra-angle Handpiece - azdentall.com

Woodpecker Dental Implant Air Implant Motor & 20:1 LED contra-angle Handpiece. The Woodpecker Implant Air is the latest and most advanced version of implant motor from Woodpecker Dental that is completely redesigned to be simple, precise and reliable for your implant surgery. Implanter Air will be your favorite assistant of high-precision dental implanting treatment.

Features

Automatic Calibration that is Convenient & Ensures Accuracy
The Implant Air Implant Motor features automatic torque calibration upon powering on the motor to ensure absolute accuracy and eliminating manual operational steps.
Compact Design & User Friendly Interface
The Implant Air Implant Motor is designed with space savings in mind. Its compact design is perfect for space savings in your operatory and has a much smaller foot print than other implant motors available. This is not your typical â€œclunky" implant motor.
-Length 6.1 inches (155mm)
-Width 6.5 inches (167mm)
-Height 8.9 inches (227mm)
The 5 inch color LCD touchscreen is user friendly and easy to understand. It has 5 pre-set surgical programs and automatically saves the parameters after each operation.
Ultra Quiet Peristaltic Pump that is Convenient to Use
The Implant Motor water pump has a waterproof design to prevent any occurrence of circuit board burnout. Simple and user friendly connect for water supply and is adaptable to using a disposable water source.
Max Water Volume: 135ml/minute
Multi-Function Foot Pedal
The Woodpecker Implant Air Implant Motor foot pedal has 1) water volume control 2) program switching 3) forward and reverse and 4) speed control. This allows you to free your hands and focus on the implant procedure.
Swiss Motor is Strong & Powerful - German Handpiece Bearing Stable & Durable.

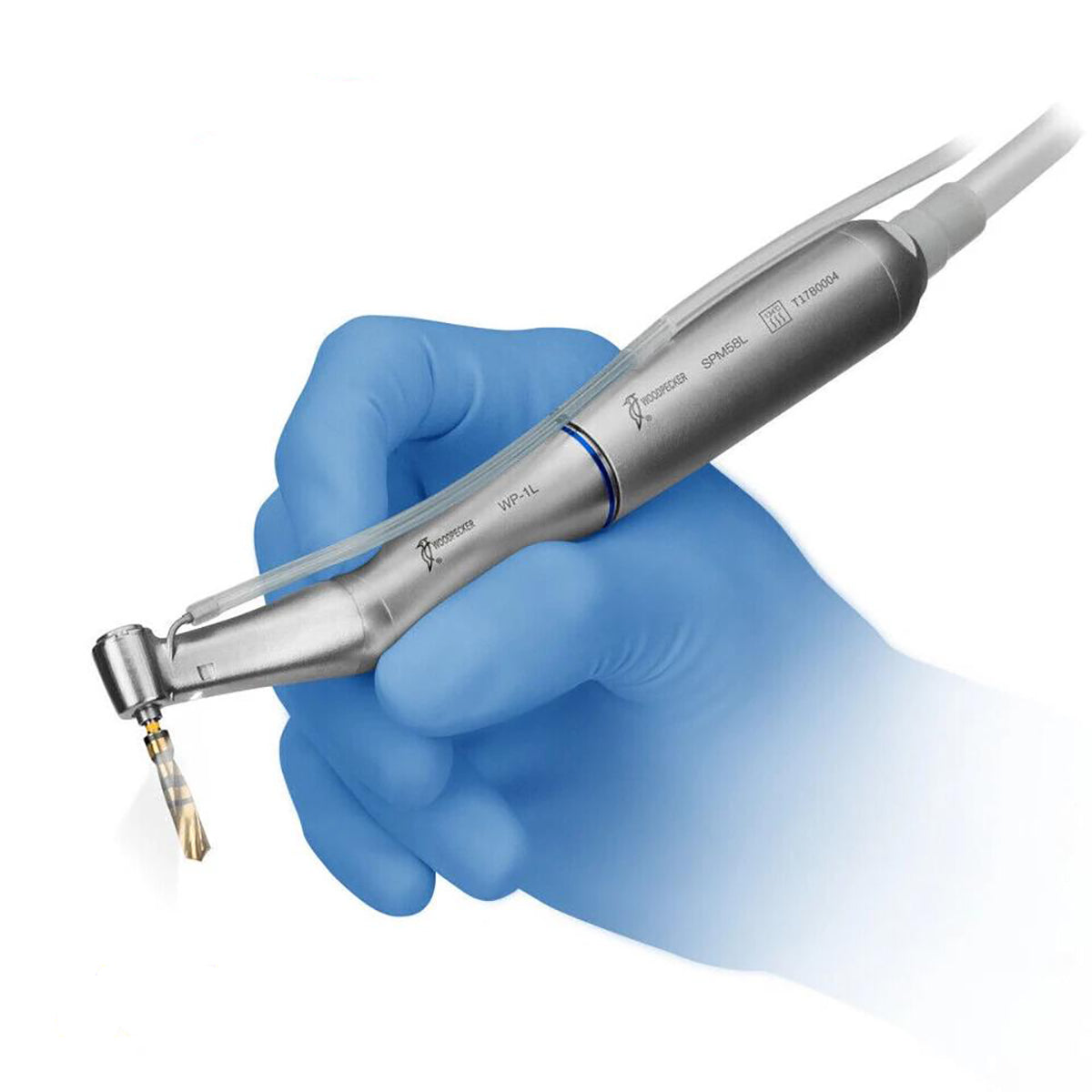

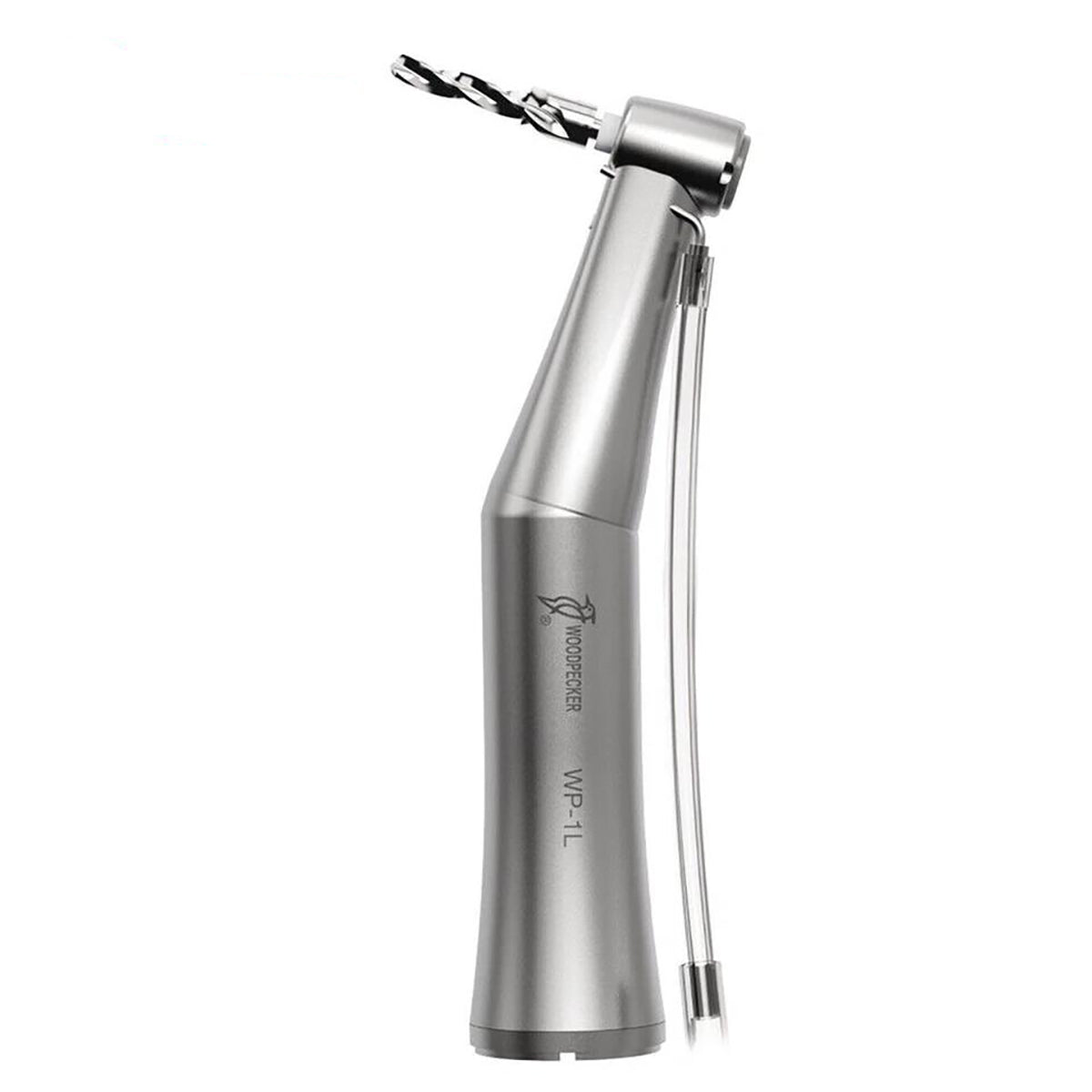

The Woodpecker Implant Air features a Swiss Motor producing torque of 80N cm and an LED 20:1 Handpiece with German bearings allowing for maximum stability and durability.
* One 20:1 LED contra angle is included with the implant motor.

Technical

Model:	Implant Air
Power Input:	AC 100-240V 50Hz/60Hz
Host Size:	155mm×167mm×227mm
Size of fuse:	5.2 mm×20mm
No-Load Speed (r/min):	300 ~ 42000
Input Power:	180VA
Software Version:	V1
Ambient Temperature:	+5 ~ 40°C
Relative Humidity:	30% ~ 75%
Atmospheric Pressure:	70kPa ~ 106kPa
Handpiece Gear Ratios Output speed (r/min):	16: 1 (20 ~ 2500) 20: 1 (15 ~ 2000) 27: 1 (10 ~ 1500) 1: 1 (300 ~ 42000) 1:2 (600 ~ 84000) 1:2.7 (810 ~ 113400) 1:3 (900 ~ 126000) 1:4.2 (1260 ~ 176400) 1:5 (1500 ~ 210000)
Pedals Model:	MF4
Tail line length:	2.8m

Packing List

Main unit:	1
Handpiece holder:	1
Disposable water pipe:	4
Infusion bottle holder:	1
Foot pedal:	1
Power cord:	1
Motor handpiece:	1
Contra-angle kit:	1
Spare fuse:	2
Disinfection plug:	2
Pipe clamp:	10
O-ring(Motor):	4
Instruction manual:	1
