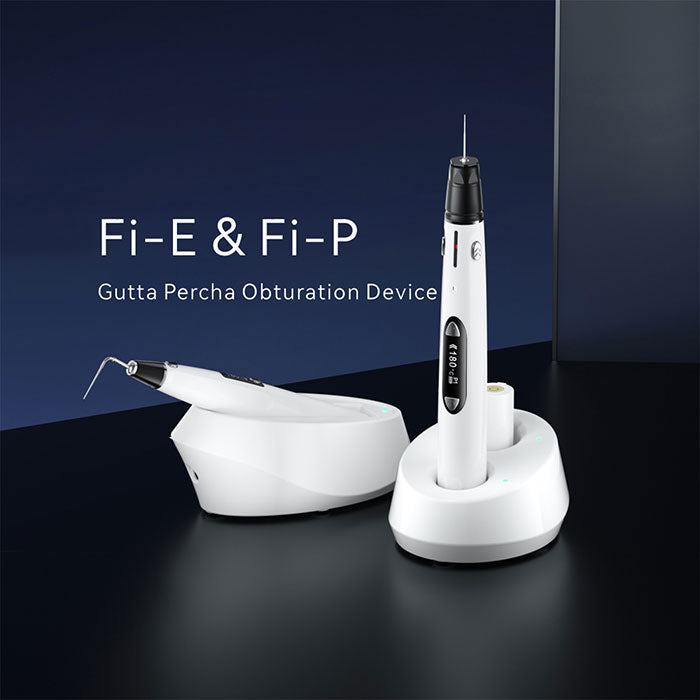

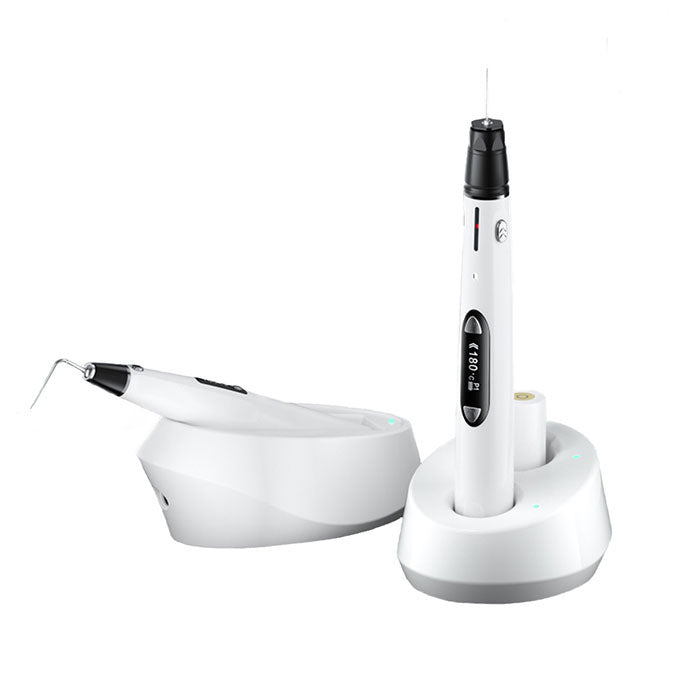

Woodpecker Cordless Endo Gutta-Percha Obturation System Fi-E & Fi-P. The Fi-P (Heat & Packing Pen) and Fi-E (Electronic Filing Pen) work in conjunction with each other for the ultimate gutta-percha obturation system for your root canal procedures.
Note: The difference between the Fi-E gutta percha dispenser and the Fi-G gutta percha dispenser is that the Fi-G is a “gun” type handle that is squeezed, where the Fi-E is an electronic pen type dispenser that does not require the use of a handle to be squeezed to dispense the warm gutta percha bar.
Both the black and the white color Fi-P units use the same tips. The tips are interchangeable between the two Fi-P models and colors.
|

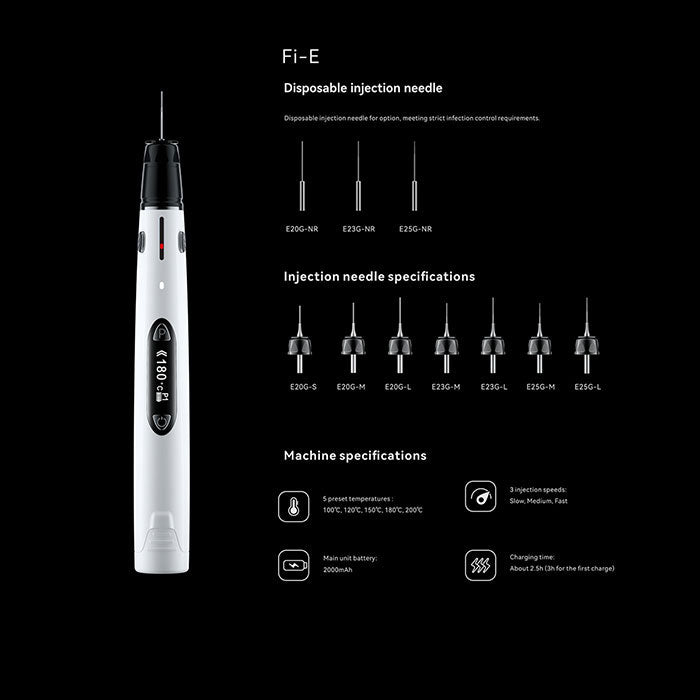

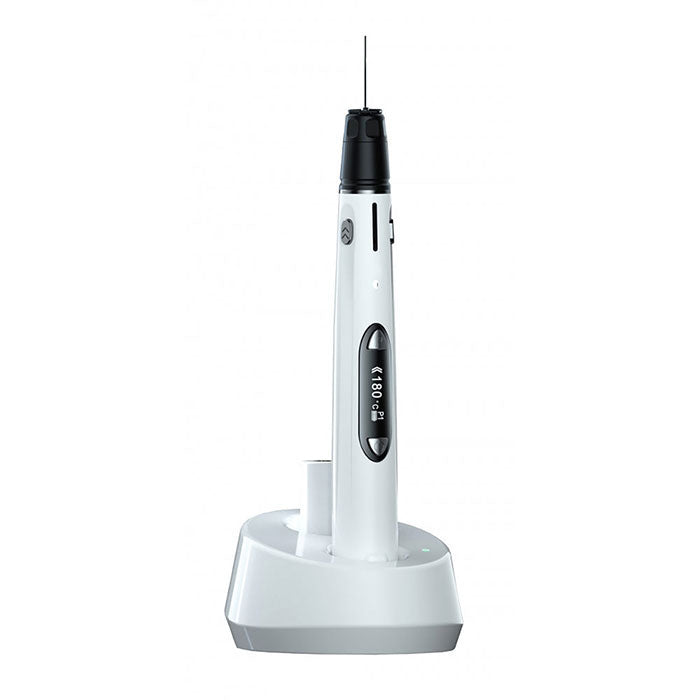

Fi-E
-
WIRELESS AND ELECTRIC
Perfect gutta-percha fluidity, uniform and smooth gutta-percha output without bubbles. Easier than traditional manual gutta-percha injection to relieve hand fatigue for the operator. Eliminate surgical hazards caused by gutta-percha leakage and overflow. Maintenance-free thanks to automatic cleaning of remaining gutta-percha.
-
REUSABLE INJECTION NEEDLE
360° ROTATABLE. The gutta-percha bar is directly loaded into the injection needle.
There is no gutta-percha residue inside the machine, making it easier to clean.
The gutta-percha bar can be replaced at any time without waiting for the internal cooling of machine.
-
DUAL BUTTON DESIGN
Symmetrically-designed dual injection buttons, sensitive and convenient.
-
PRECISE AND INTUITIVE DISPLAY OF REMANING GUTTA-PERCHA
An indication window is set on the front of the machine to display the remaining gutta-percha intuitively and accurately.
-
PROTECTION SYSTEM
Auto heating stop after timeout; Auto shutdown after timeout
-
CHARGING BASE WITH BATTERY. TEMPERATURE MONITORING DESIGN
Charging base enable battery temperature monitoring, guaranteeing more secure charging
-
DUAL BATTERIES, MORE DURABILITY
2x2000mAh batteries, allowing quick replacement in 1sec. Dual batteries deliver longer endurance, enabling filling about 100 root canals.
-

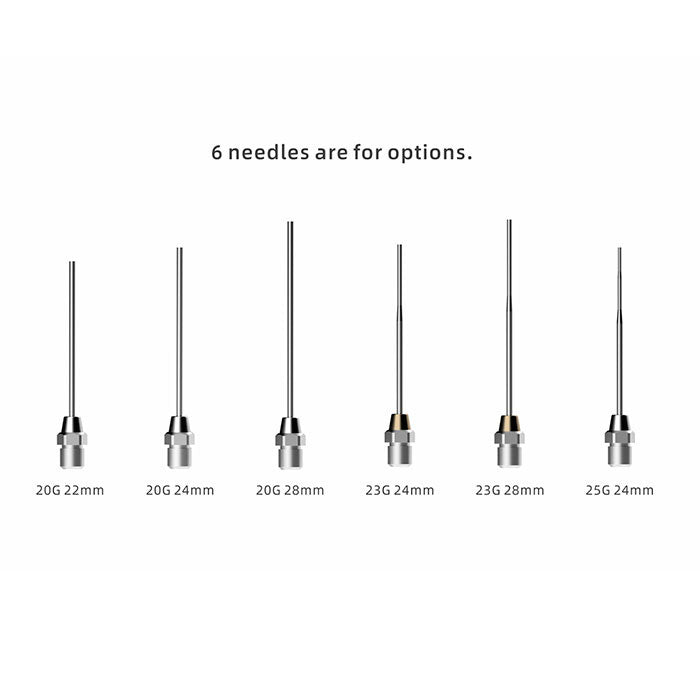

EQUIPPED WITH INJECTION NEEDLES
Disposable injection needles foroption, meeting strict infection control requirement.

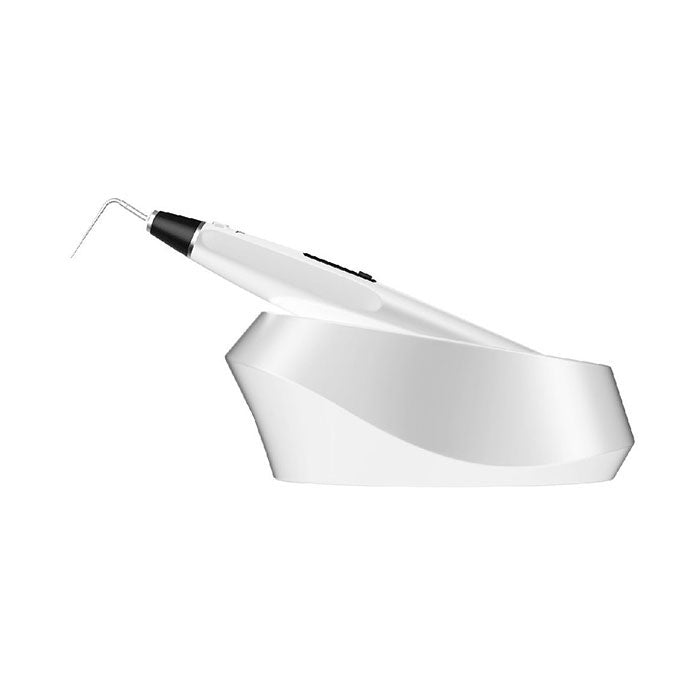

Fi-P
- With high-precision temperature controland a heating speed of 0.2 seconds, it ensures efficient and safe work.
- With 4 working temperatures(150ºC, 180ºC, 200ºC, 230ºC) that adapt to the different Gutta-Perchas on the market.
- High-capacity battery with up to 4 hours of autonomy (1,500 operations on a full charge).
- Its dual-directional display facilitates both left- and right-handed operation.
- Pre-curved 0.35 mm Attackers/Pluggers: the thinner tips can penetrate deep into the narrow root canal, even in lateral roots.
|
- One year warranty (not including customer damages).
|
| Input power: |
AC100V-240V 50/60Hz 800mA |
| Output power: |
DC15V/1.6A |
| 5 Preset temperatures: |
100°C→120°C→150°C→180°C→200°C |
| 3 Injection speeds: |
Slow, Medium, Fast |
| Main unit battery: |
18500, 2000mAh |
| Charging time: |
About 2.5h (3h for the first charge) |
| Heater Rating: |
10W |

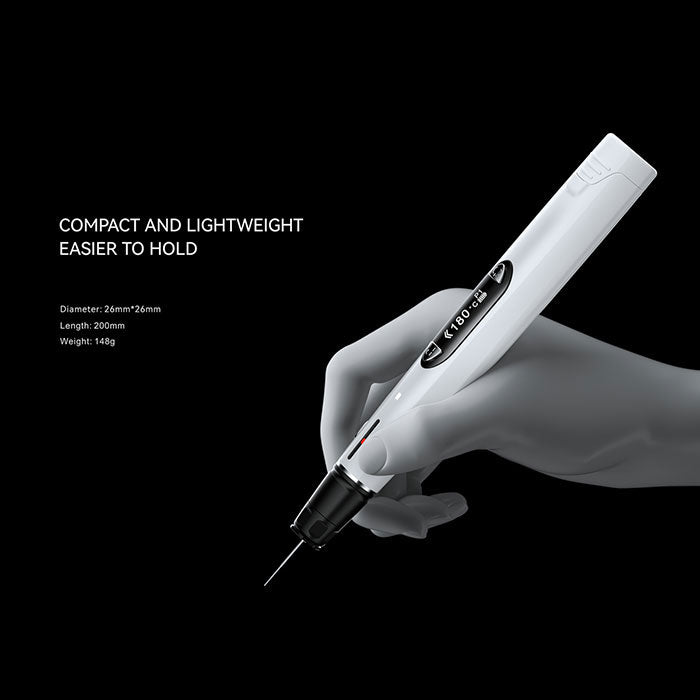

| Size of unit: |
25mmx28mmx200mm |
| Net weight: |
148g |
| Battery capacity: |
2,000 mAh |
| Recharging time: |
2.5 hours |
| Autonomy duration: |
1,500 operations |
| Preset temperatures: |
150ºC, 180ºC, 200ºC, 230ºC |
| Warm-up time: |
in 0.2 seconds |
| Handpiece weight: |
80g |
| Main unit: |
1 |
| Charging stand: |
1 |
| Power adapter : |
1 |
| Battery: |
2
|
| Injection needle: |
4 |
| Heat insulation sleeve of needle: |
4
|
| Heat insulation hood: |
2
|
| Wrench of needle: |
1
|
| Gutta-Percha Ring: |
1
|
| Instruction manual : |
1
|
| Qualified certification: |
1
|
| Warranty card: |
1 |
| Packing list: |
1
|
| Fi-P Main unit: |
1
|
| Charging stand: |
1
|
| Power adapter: |
1
|
| WP4004 tip: |
1
|
| WP4504 tip: |
1 |
| WP5506 tip: |
1
|
| WP5508 tip: |
2 |
| Heat insulation sleeve of tips: |
4 |
| Instruction manual : |
1 |
| Qualified certification: |
1 |
| Warranty card: |
1 |
| Packing list: |
1 |
