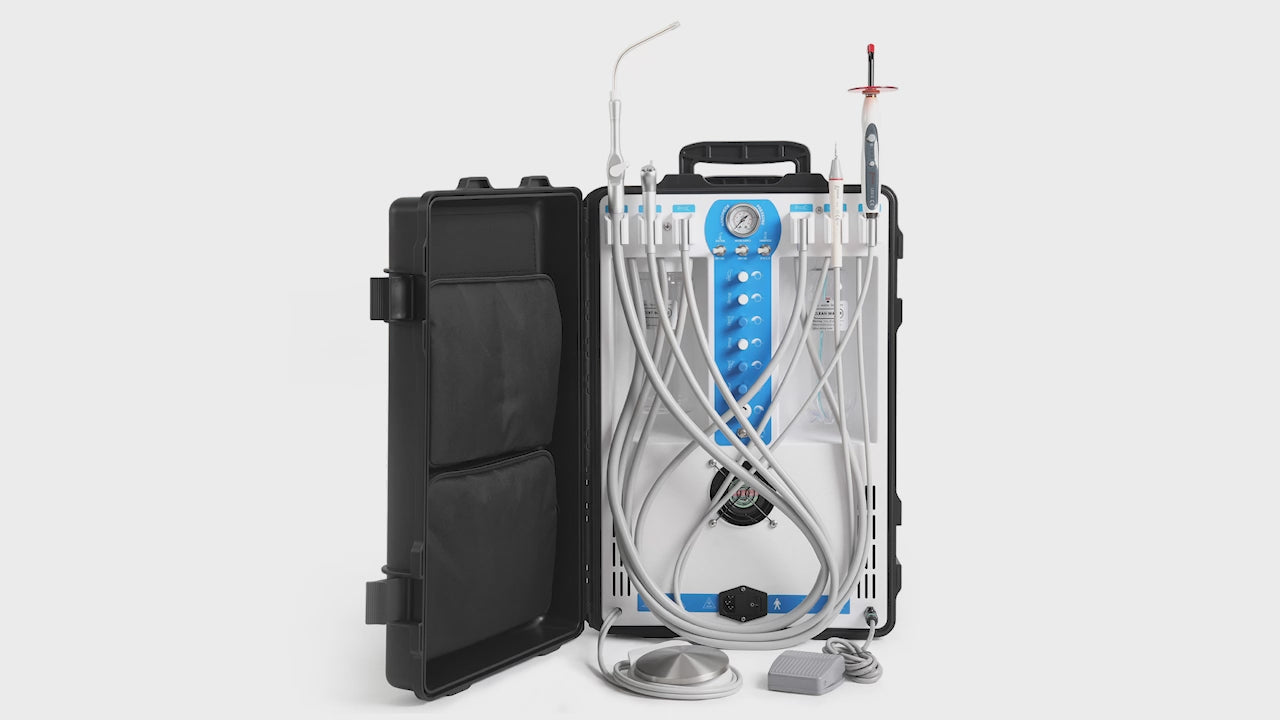

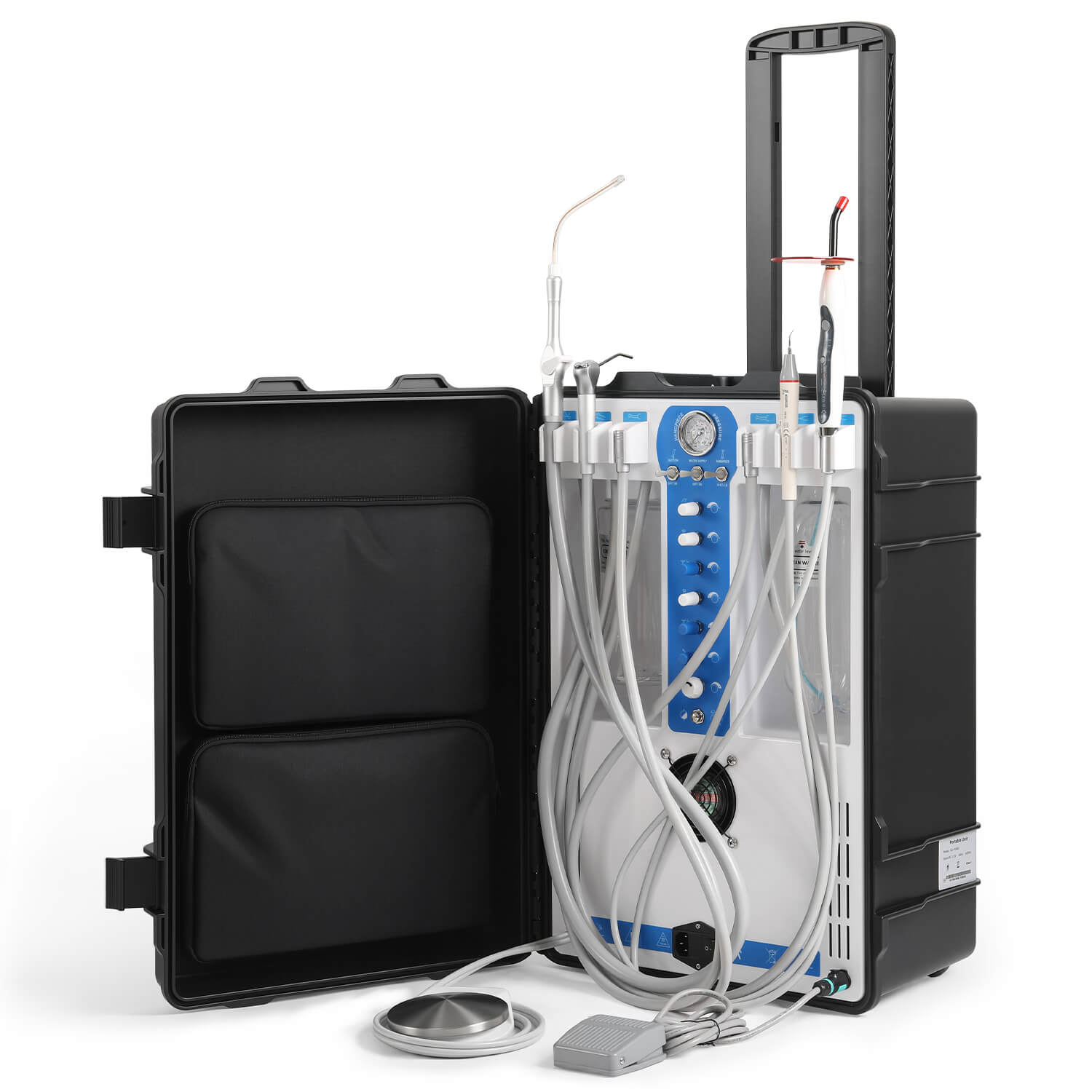

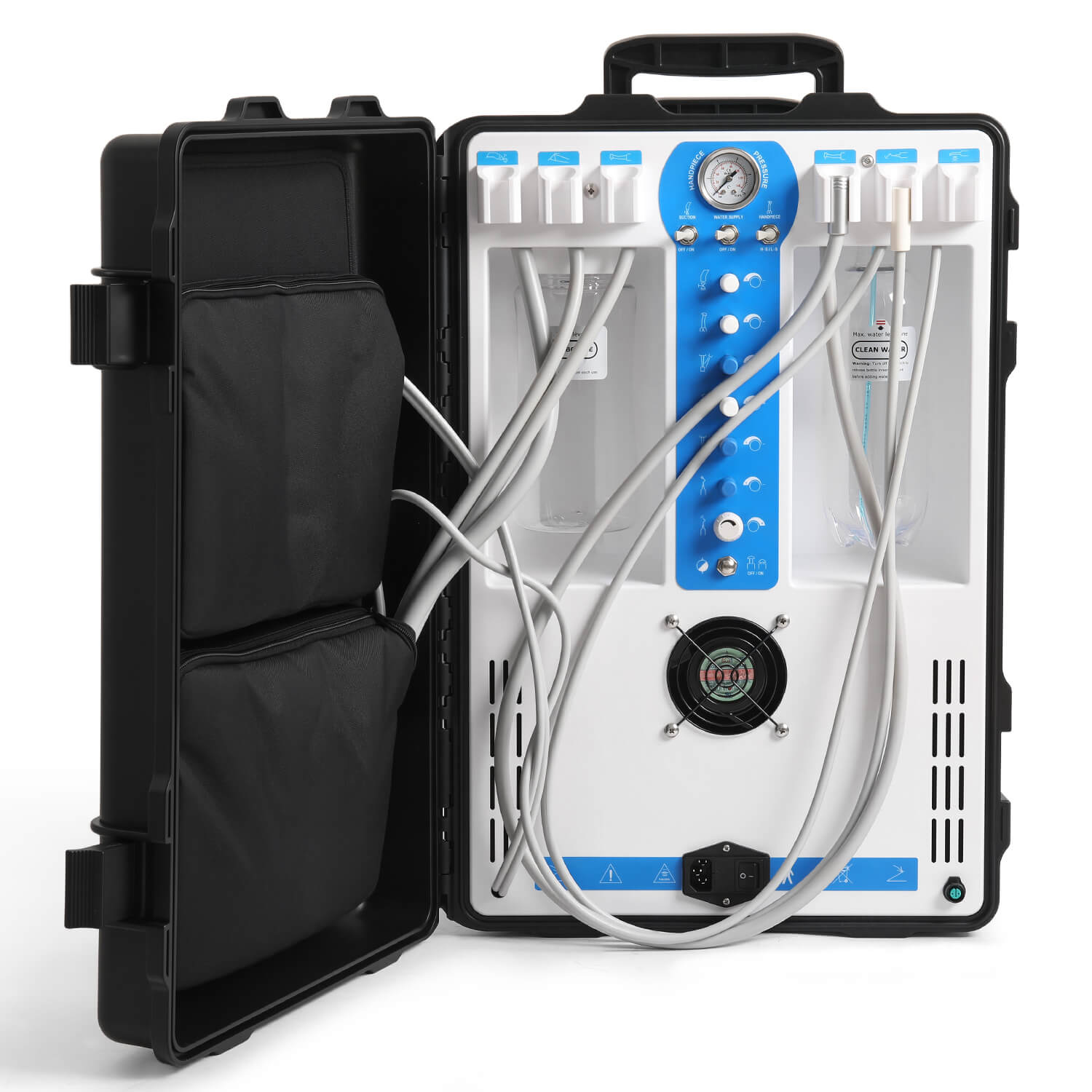

Portable Dental Delivery Unit P206S High Suction 4 Hole w/ Woodpecker Curing Light and Scaler & Air Compressor. FDA approved. The shell is made of black high-strength engineering plastic explosion-proof box. Easily assembled and powered, the unit operates with a simple foot pedal control. The robust case withstand drops, and the premium motor ensures reliable performance over more than 20,000 hours. The oil-free motor requires no lubrication, and the drainage bottle is easy to detach and disinfect. With a pull-out handle and wheels is lightweight for dentists to move it with ease.
*Please notice that this unit does not include any handpiece.

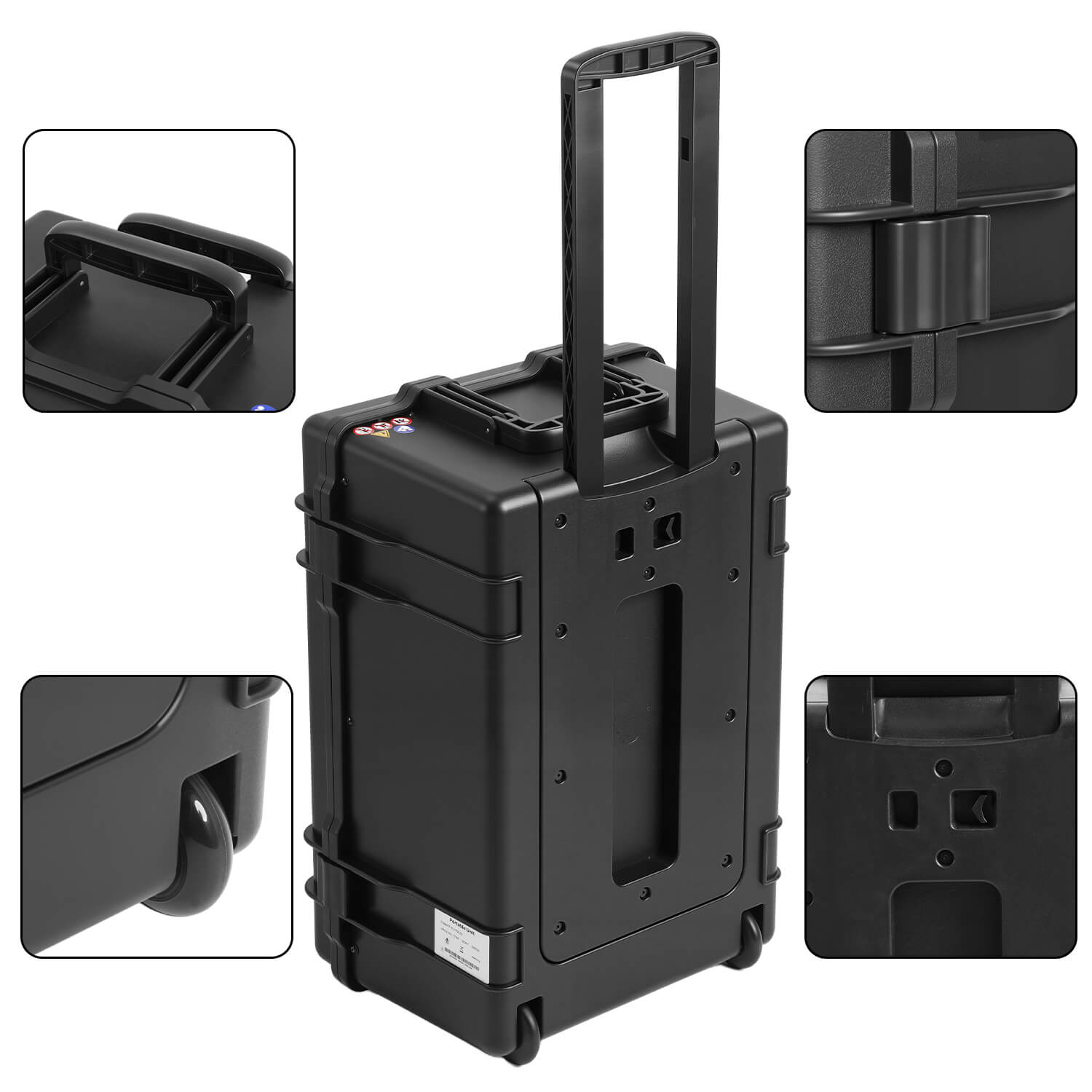

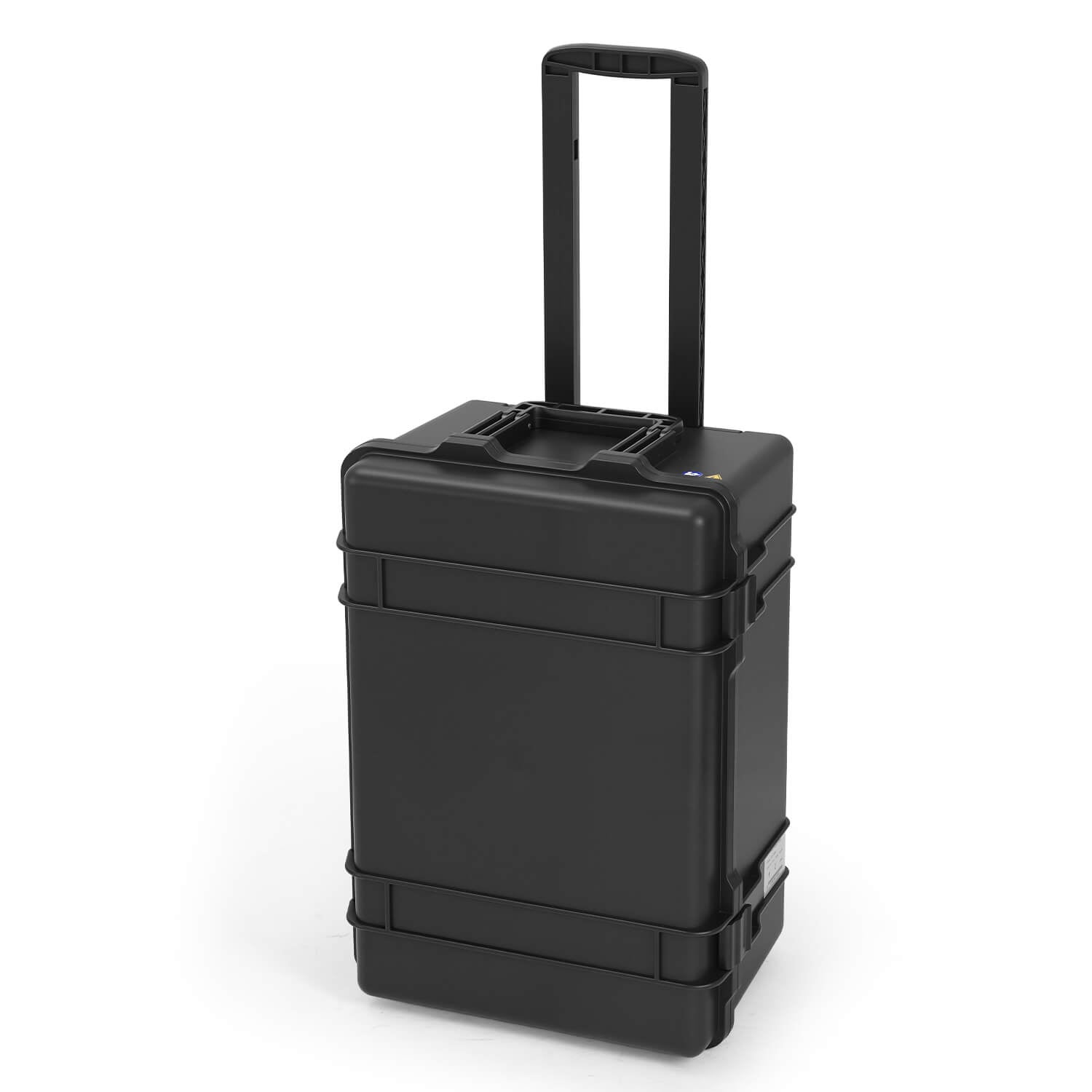

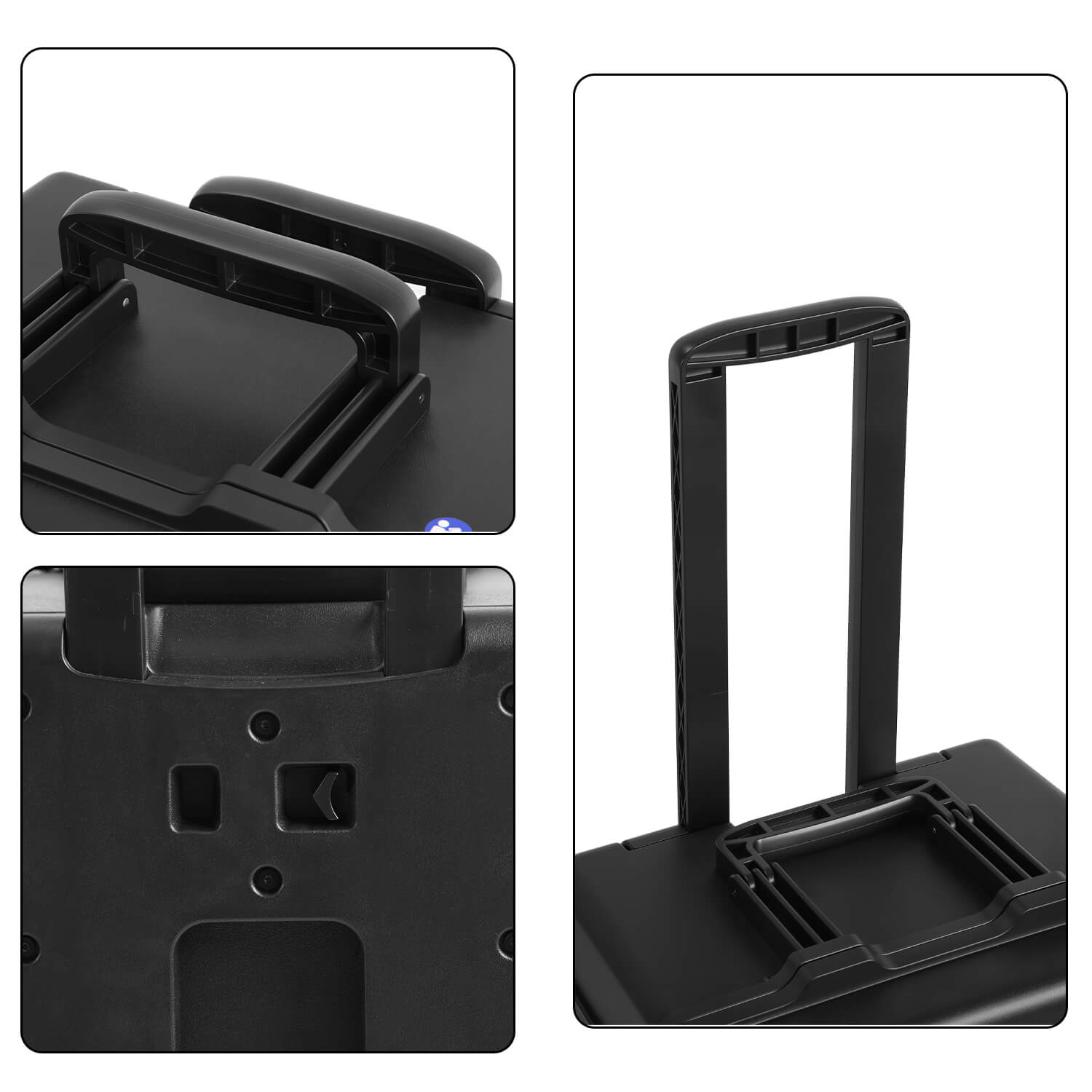

- Easy to Carry and Move: The portable case with a pull-out handle and wheels is lightweight for dentists to move it with ease.
- Compact and Space-Saving: The compact treatment unit comes with a storage bag to save space.

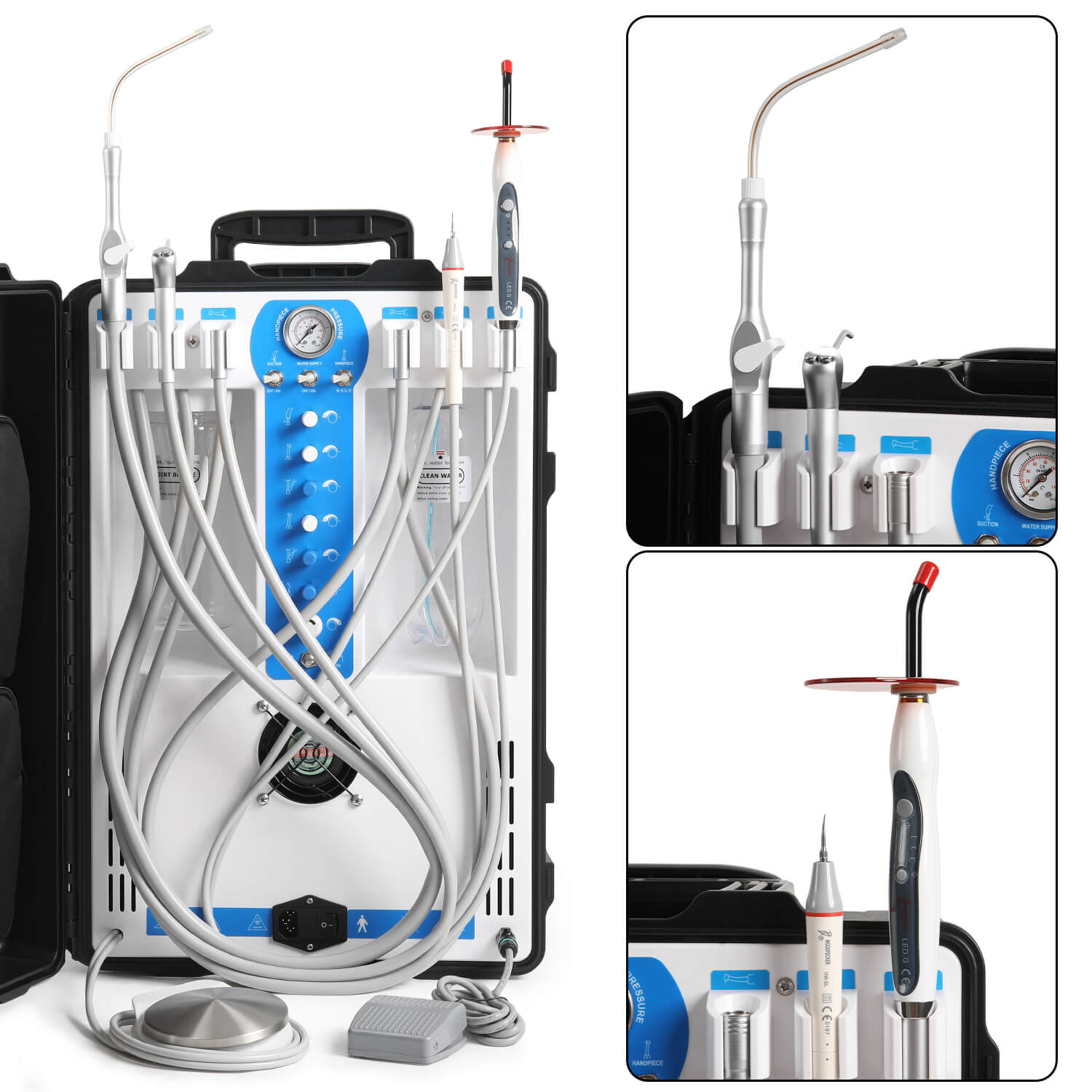

- Fully Functional: The device includes dental treatment related systems such as air system, water system, suction, and drainage systems.
- Simple to Operate: Easily assembled and powered, the unit operates with a simple foot pedal control.
- Steady Performance: The robust case withstand drops, and the premium motor ensures reliable performance over more than 20,000 hours.
- Easy to Maintain: The oil-free motor requires no lubrication, and the drainage bottle is easy to detach and disinfect.
- Intended Use: Dental Hospital, Dental Clinics, Army and Outdoor Dental Care or Treatment Establishment.
|
- Before operating the unit, please read the manual carefully and preserve it for future reference.
- Please operate and maintain the unit strictly in accordance with the operational instructions.
- The user should read the instructions supplied with the dental unit carefully.
- Symbol “Attention” denotes that before using the device, read the operating manual carefully and carry out all the instructions to avoid any damage or injury.
- Please contact the local agent or the manufacturer if the unit needs repairs. We will supply a high quality of service and assistance for you.
|
- The power switch should be turned off when the machine stopped working, the transformer and solenoid valves will heat to burn if long-term power or no stop the power.
- Please drain off the water when the water on 2/3 of Suction bottle, the water will come to motor if the water is higher than 2/3 on suction bottle, the air motor will leakage of electricity or burn if the water come to air motor.
|
| Model: |
Portable Dental Unit P206S |
| Votalge: |
110 V/60Hz(USA),220V/50Hz(Europe) |
| Power: |
600W |
| Air Flow: |
118L/min |
| Working Pressure: |
0.5-0.6 Mpa |
| Water Bottle: |
600 mL |
| Drainage Bottle: |
1000 mL |
| Noise: |
48dB |
| Net weight: |
30 kg |
| Gross Weight： |
34KG |
| Dimension: |
41 x 29 x 63 cm |

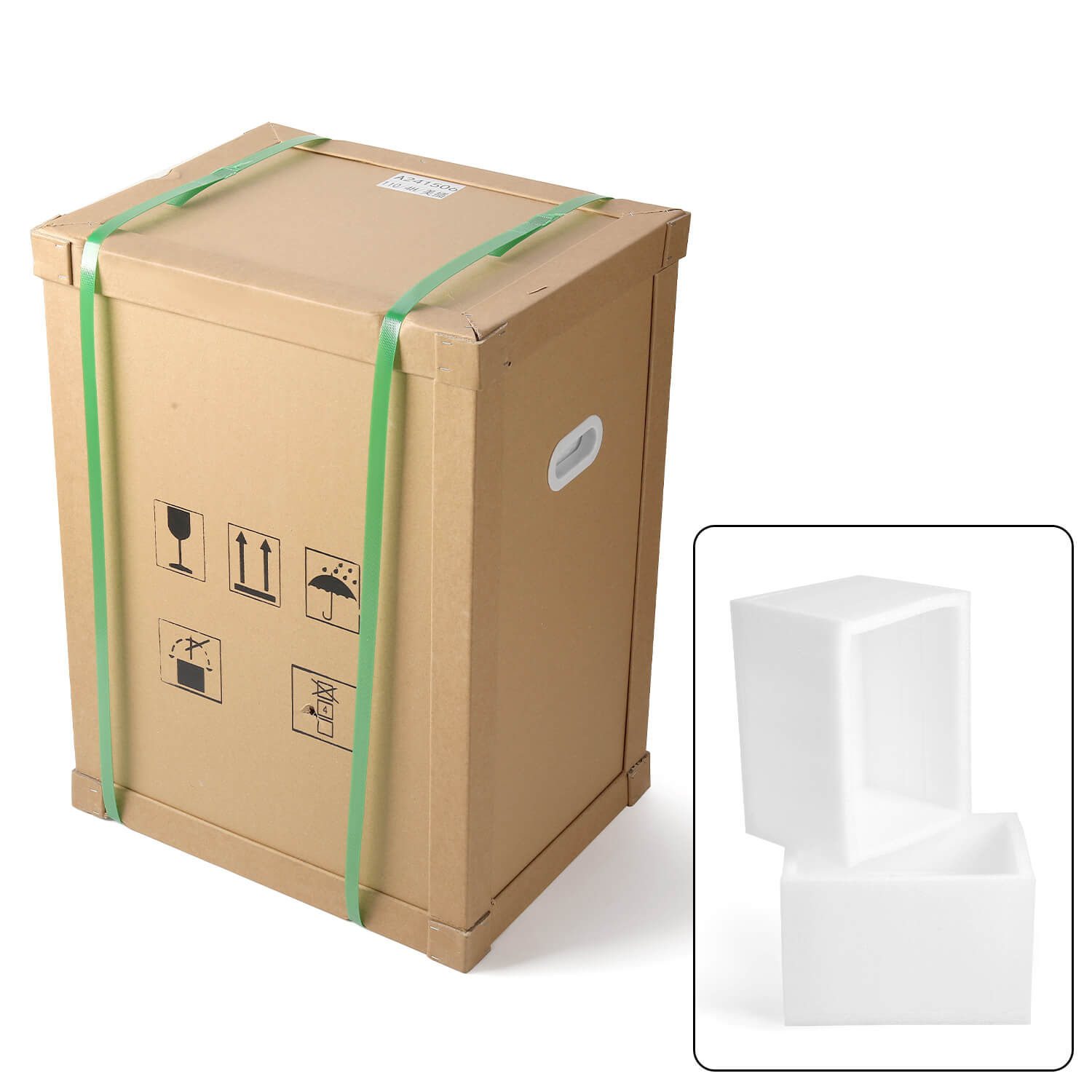

| Package size： |
52*36*69CM |
| 3 Way-Springe : |
1pc |

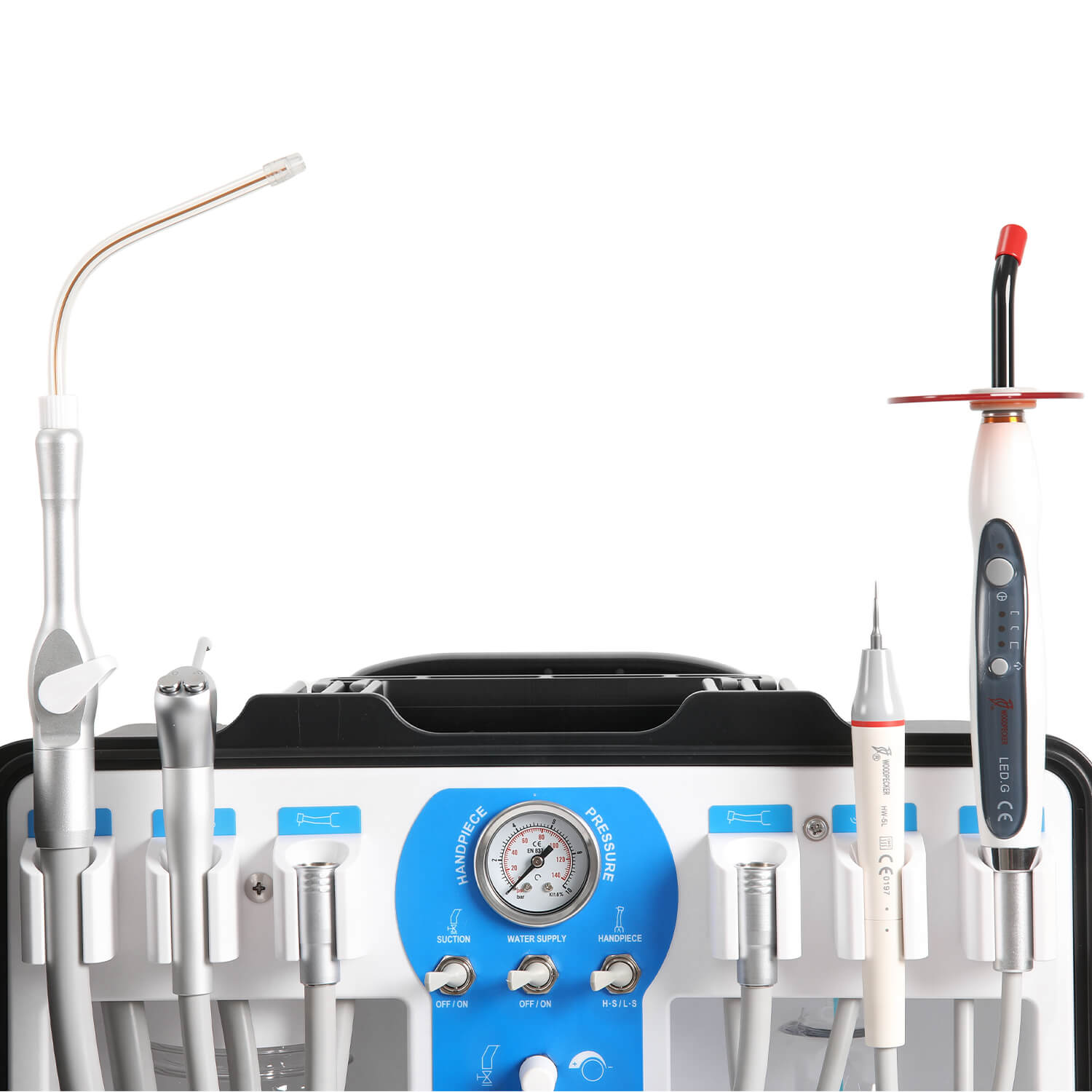

| Saliva ejector with adjustable and powerful suction: |
1pc |
| Handpiece Tubing(4 Hole): |
2pcs |
| Ultrasonic Scaler： |
1pc |
| Curing Light： |
1pc |
| Self-contained clean water supply system (1000ml): |
1pc |
| Self-Contained Stainless Steel Air Bottle: |
1pc |
| Self-contained drainage bottle (1000ml): |
1pc |
| Self-contained oil free compressor (600W motor): |
1pc |
| Foot Control System: |
1pc |
| Self-contained bag for storage to save your space： |
1pc |
