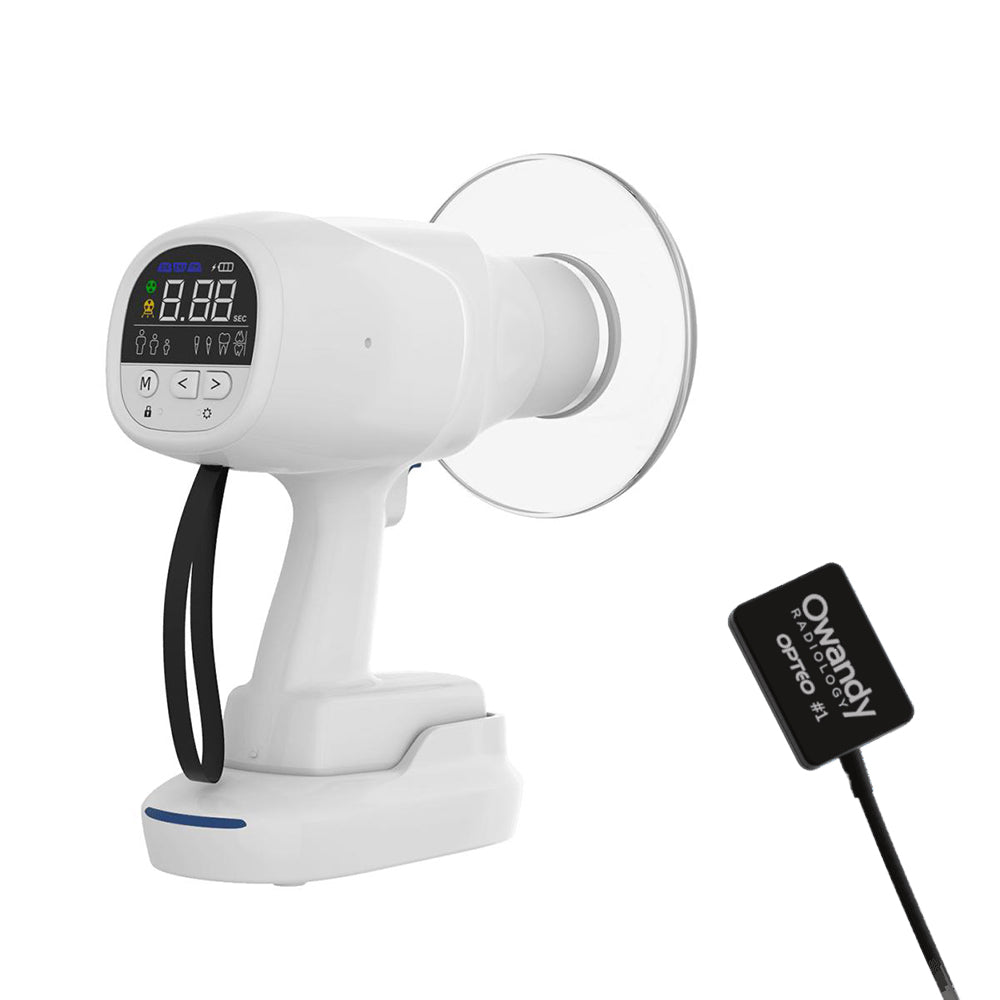

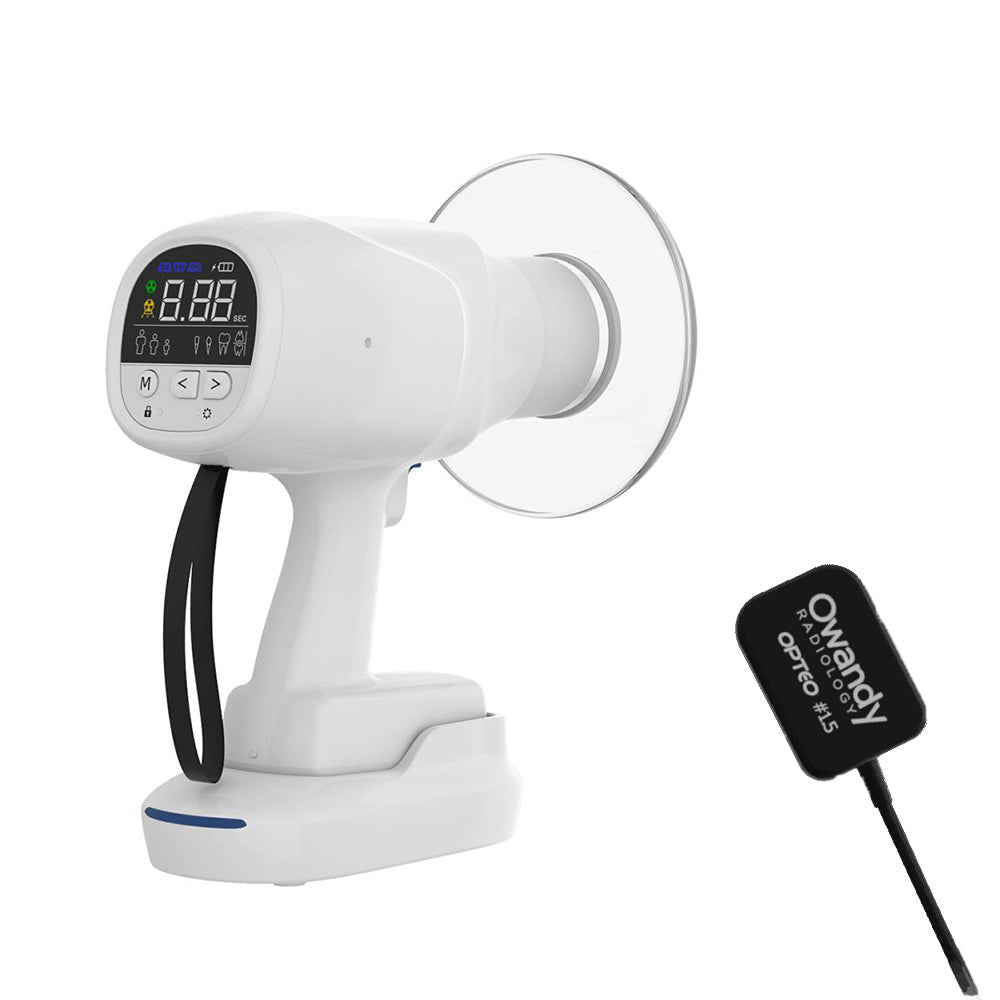

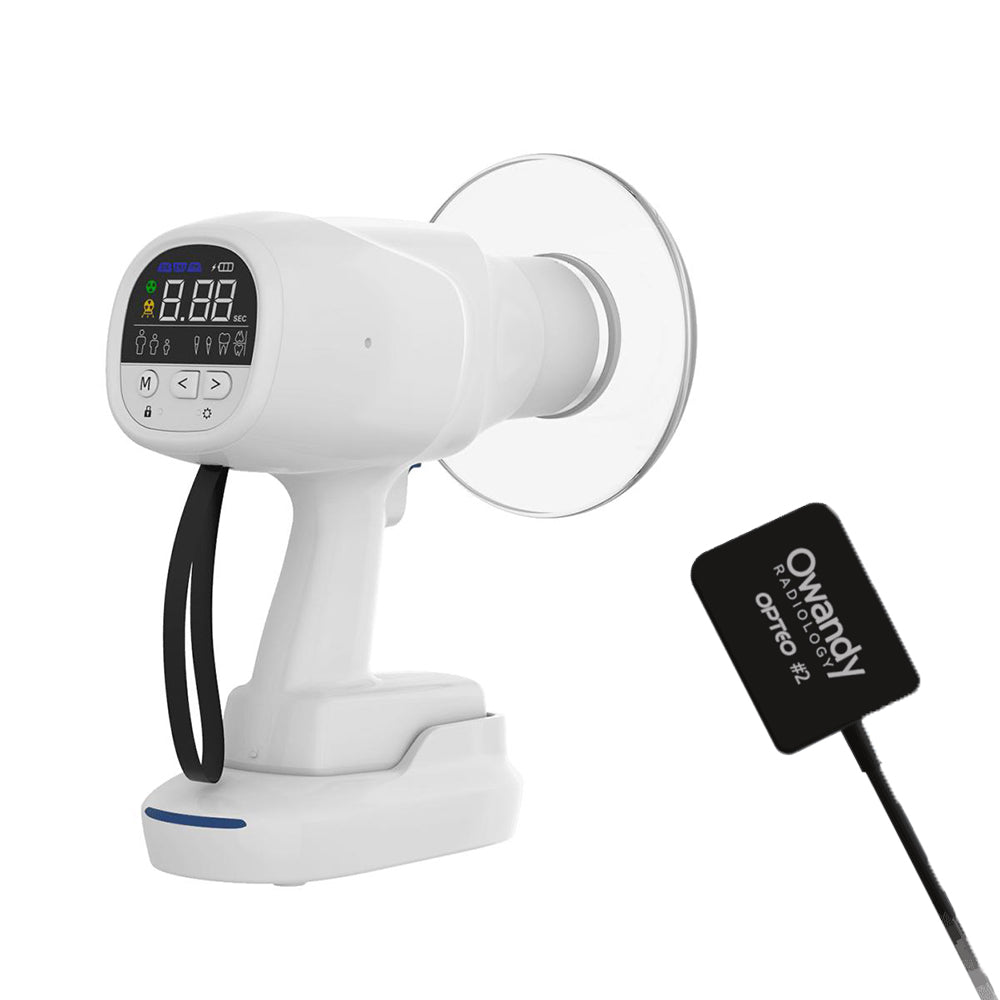

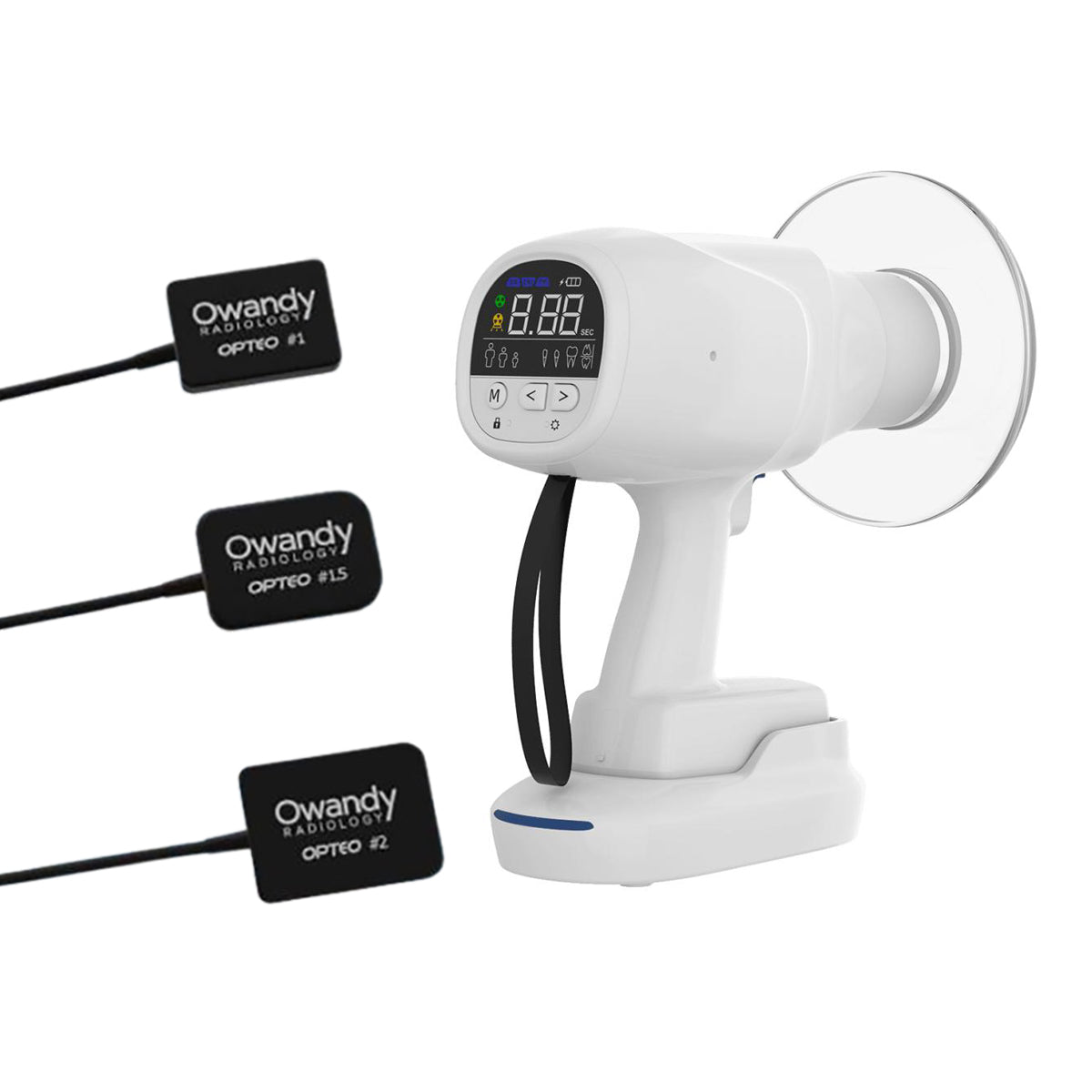

Owandy RX Portable X-Ray Machine with OPTEO Digital Intraoral Sensor Size #1 #1.5 #2

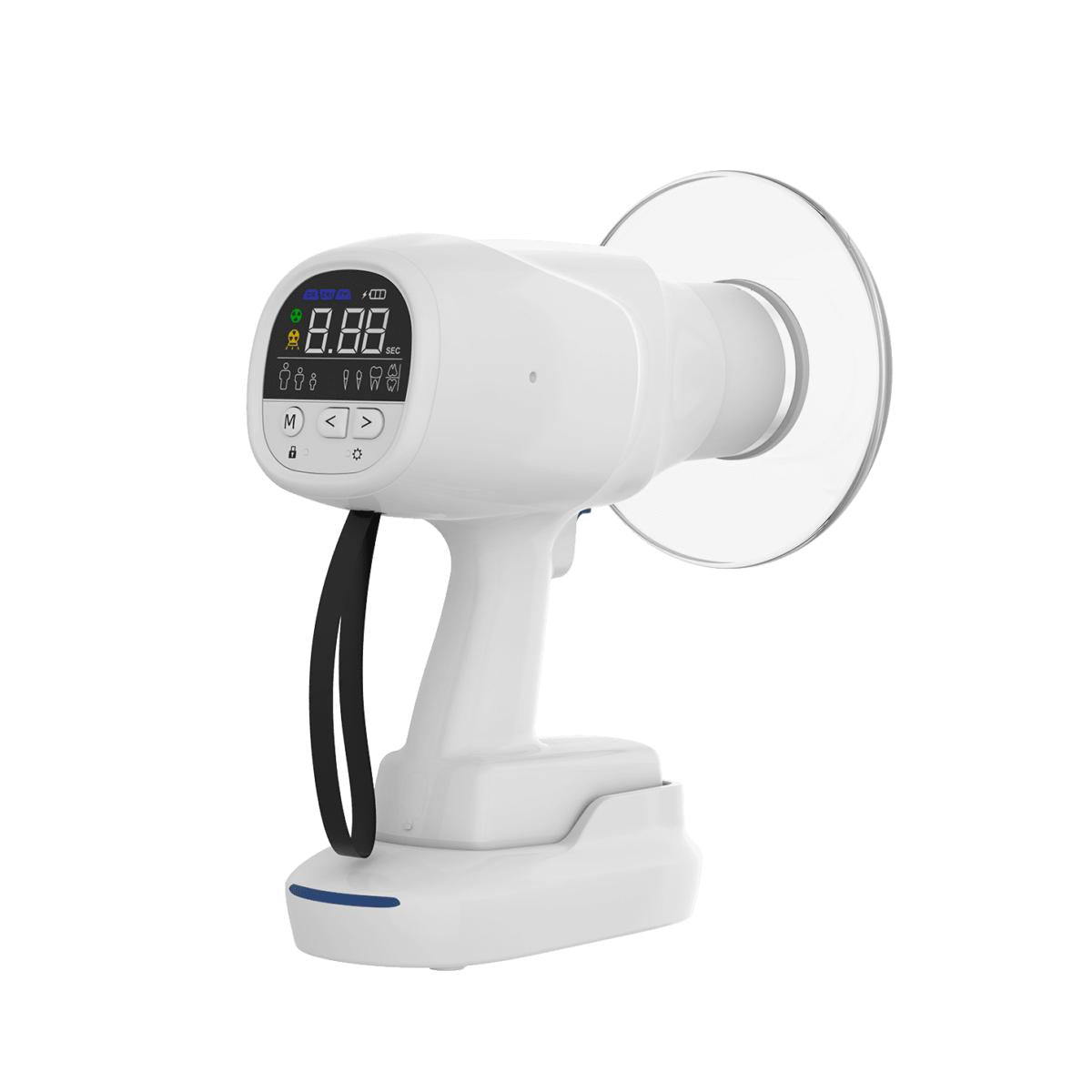

Owandy RX Portable Dental Intraoral X-Ray Unit Machine with Backscatter Shield. Exceptional image resolution thanks to its 0.3 mm focus. Take X-rays by applying the predefined parameters. Can be used with one hand only. Up to 300 images on a single charge. Excellent image quality due to 3mA anode current. Simply charge by placing it on the base. FDA Approval. Two Year Warranty.
Owandy OPTEO Digital Intraoral Sensor Size #1 #1.5 #2 for high-resolution dental radiographic imaging. Delivers stable and consistent image performance to support reliable clinical decision-making. Enhances image contrast and detail, improving exposure tolerance in varied clinical conditions. Compatible with most dental imaging and practice management systems including DPI and PMS workflows. Supports fast image capture and smooth integration into existing digital dental workflows.. FDA Approval. 5-year warranty.
X-Ray Machines manual download
X-Ray Sensor manual download
-
Image Resolution: 0.3 mm focal spot delivers exceptional image clarity for precise dental diagnostics.
-
Preset Exposure Settings: Built-in parameters allow fast, consistent, and accurate X-ray capture.
-
One-Hand Operation: Lightweight ergonomic design enables stable and easy single-hand use.
-
Battery Performance: Supports up to 300 exposures per full charge for continuous clinical workflow.
-
Image Quality: 3 mA anode current ensures sharp, high-quality radiographic imaging.
-
Charging System: Convenient dock base allows simple placement charging for efficient daily use.
|
-
Reliable & Robust: Built with a CMOS sensor, fiber optics, scintillator, and shock absorption system, OPTEO combines high image resolution with enhanced durability and long-term stability.
-
Simple & Automatic: Direct USB connection eliminates complex setup and external control boxes, making operation simple and intuitive for single or multi-workstation use.
-
Image Quality: Delivers stable and consistent image performance to support reliable clinical decision-making.
-
Wide Dynamic Range (WDR): Enhances image contrast and detail, improving exposure tolerance in varied clinical conditions.
-
Software Integration: Compatible with most dental imaging and practice management systems including DPI and PMS workflows.
-
Workflow Efficiency: Supports fast image capture and smooth integration into existing digital dental workflows.
-
Endodontics: Supports detailed root canal imaging for improved diagnostic accuracy and treatment precision.
-
Implant & Prosthetic Surgery: Provides clear radiographic images for implant positioning, prosthetic planning, and post-operative assessment.
-
Caries Detection: Enables identification of early-stage caries and interproximal lesions for preventive dental care.
-
Clinical Applications: Suitable for endodontics, implant dentistry, prosthetic evaluation, and caries detection in daily dental practice.
|
- Two Year Warranty for RX Portable X-Ray Machine
-
5-year warranty for OPTEO Digital Intraoral Sensor : All complete units come with a 2-year warranty, and key components are covered by an additional 3-year free extended warranty.
|
| Technical Parameter of X-Ray Machine |
| Model: |
OWANDY-RX PORTABLE (DT-703) |
| X-ray tube: |
CEI 70kV / 3mA |
| Focal spot: |
0.3 mm |
| Total filtration: |
1.5mm Al |
| Battery charger input voltage: |
100–240V / 50~60Hz |
| Battery charger output voltage: |
25.4Vdc, 0.9A |
| Battery voltage: |
24.2V |
| Frequency: |
50 – 60 Hz |
| Weight: |
3.97 lbs/1.8 kg |
| Options: |
Backscatter protection, Rectangular collimator (30x40mm, 20x30 mm) |
| Technical Parameter of Sensor |
| Size: |
Size 1 |
Size 1.5 |
Size 2 |
| Sensor: |
CMOS |
CMOS |
CMOS |
| Fiber Optic Plate: |
Yes |
Yes |
Yes |
| Scintillator |
CsI:Tl |
CsI:Tl |
CsI:Tl |
| Sensitive surface |
22 × 30 mm (660 mm²) |
24 × 33 mm (790 mm²) |
26 × 35 mm (910 mm²) |
| Pixel Size |
18.5 × 18.5 μm |
18.5 × 18.5 μm |
18.5 × 18.5 μm |
| Sensor resolution |
27 lp/mm |
27 lp/mm |
27 lp/mm |
| Connection |
Direct USB: High-Speed USB 2.0 and USB 3.0 |
Direct USB: High-Speed USB 2.0 and USB 3.0 |
Direct USB: High-Speed USB 2.0 and USB 3.0 |
| Operation System |
Windows 10/11 |
Windows 10/11 |
Windows 10/11 |
| Packing List of X-Ray Machine |
| Main Unit: |
1 PC |
| Battery Charger: |
1 PC |
| Cradle: |
1 PC |
| Wrist Strap: |
1 PC |
| User Manual: |
1 PC |
| Main Unit: |
1 PC |
| Self-adhesive sensor wall support: |
1 PC |
| disposabl protective sleeves: |
1 PK |
| An USB Stick: |
1 PC |
| User Manual: |
1 PC |
