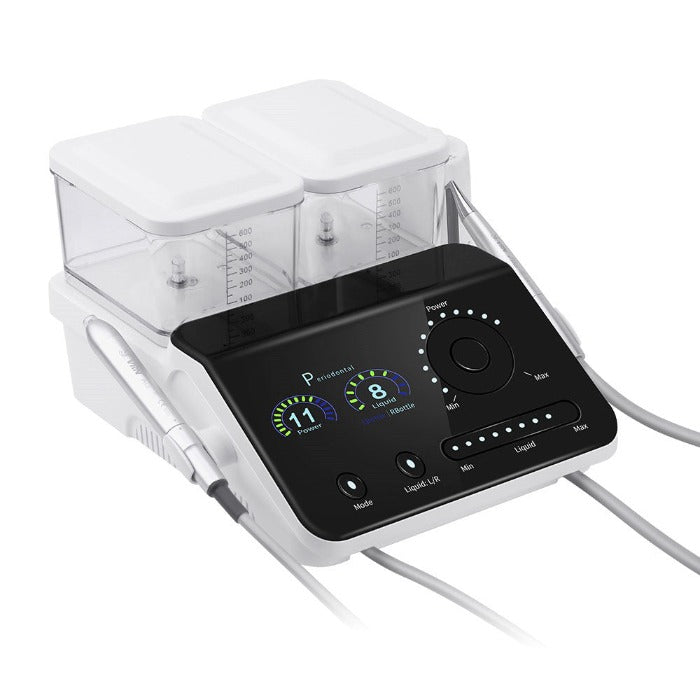

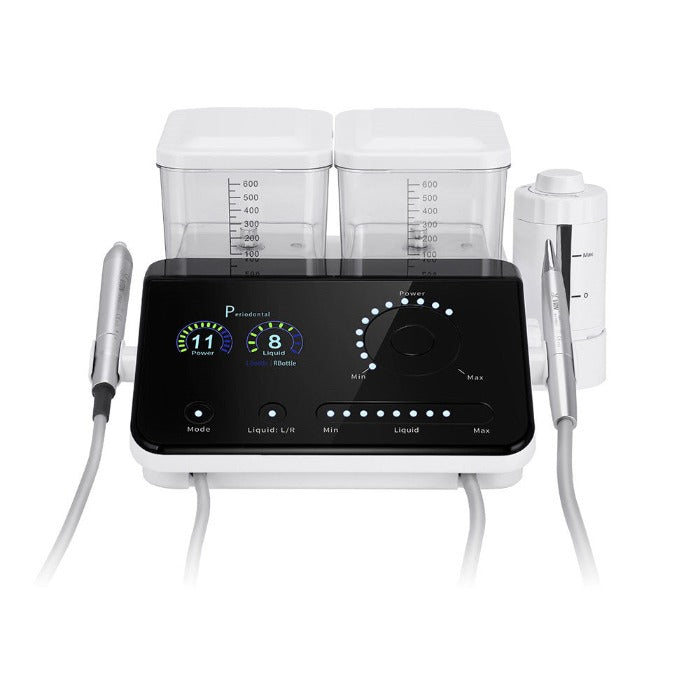

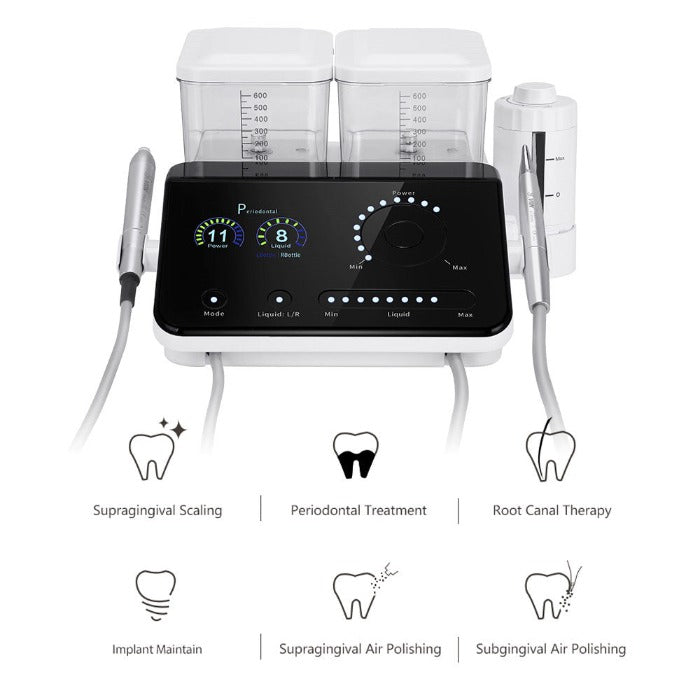

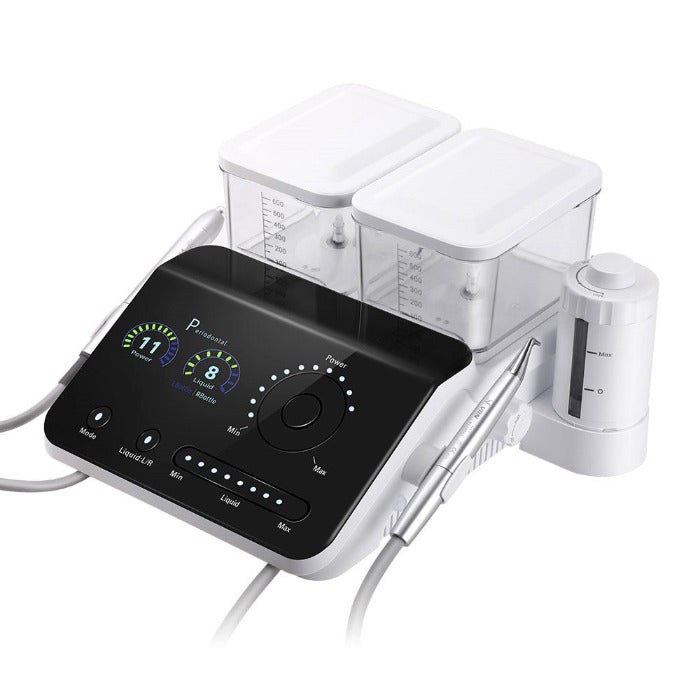

Dental Ultrasonic Scaler With Air Polisher And LED Detachable Handpiece. No-pain ultrasonic piezo treatment It combiness scaling,periodontal and endodontic on one device ,they can meet the most needs of supragingival and subgingival scaling operations.
- Dental implant maintaining Sand blasting could remove the plague and stains on the implant without any harm to the material.Bsides,1 PEEK plastic special implant maintaining tip could offer the soft and high effcient operation.
- The scaler tip is casted from Titanium alioy to ensure circular vibration track and more concentrated amplitude, so that Perio, Scaling. Endo, Restorative treatments can be done simultaneously.
- Spray the water and powder mixture onto the tooth surface with compressed air,to remove the dental plaque,pigment and soft dirt,etc, to completely suppress the source of periodontal disease,keep yor gums healthy.
- During the air polishing treatment,keep the air pressure constant,the doctor can adjust the powder outflow to make patient comfortable and treatment effcient.

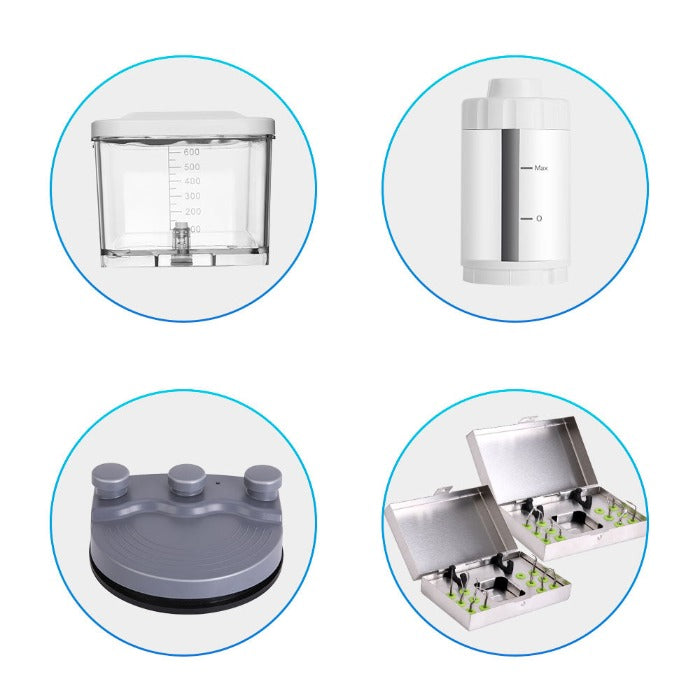

- Two large refilable bottles , satisfy using pure water or disinfectant,and two powder botteltes,double care.
- The hydraulic routing is made from antiseptic material. Disinfectant for the treatment, such as hydrogen peroxide, chlorhexidine, sodium hypochiorte can be filled into the automatic water supplysystem.
- Detachable handpiece can be 135℃and 0.22 MPa autoclave steriization.

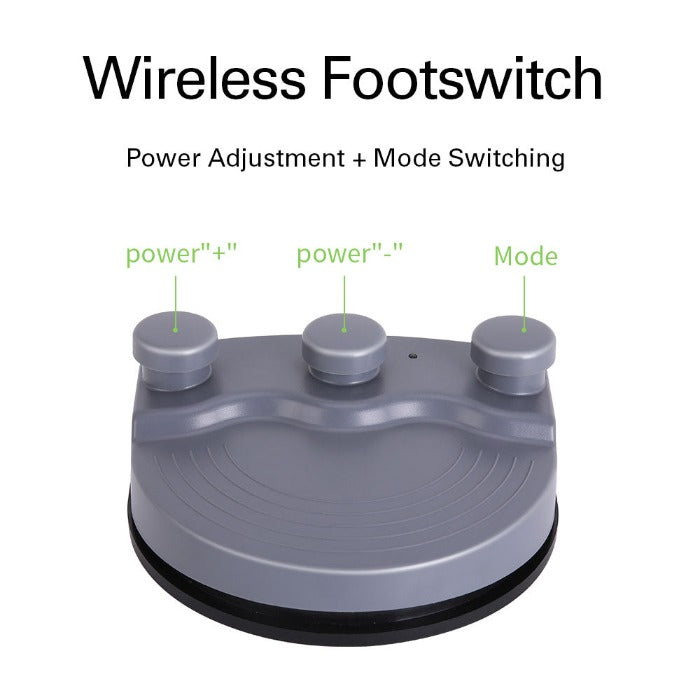

- The evolutional wireless foot pedal remotes the main unit, and the cord foot pedal can also be selected according to user's needs.
- Soft bright LED light improves the clinical efficiency
|
| Period of use: |
10years |
| Input Voltage: |
100V-240V.50/60 Hz |
| Supply Voltage: |
DC30V 1.3A |
| Battery of Wireless Foot Pedal: |
1.5V two AA batteries |
| Receiving Sensitivity: |
114dB(compliance with Telecommunication Act of China)
receiving frequency2.4G Hz-2.5G Hz |
| Primary Tip Vibration Excursion : |
minimum: 1 μm deviation:-50%
maximum:100 μm deviation:+50% |
| Half-excursion Force: |
minimum: 0.1N deviation:-50%
maximum:2N deviation:+50% |
| Tip Vibration Frequency: |
28 KHz±3KHz |
| Input Power: |
30VA-48VA |
| Output Power: |
3W-20W |
| Fuse: |
T3AL 250V |
| Intake Pressure: |
5bar-6 bar(0.5 MPa-0 6 MPa) |
| Specifications of Sandblasting Powder: |
The size of sand blasting power which act on gingival is 40 μm-65μm; act on subgingival is 25 μm and brackish or lemon |
| Weight of Main Unit: |
1.5 kg |
| Weight of Power Adapter: |
0.25kg |
| Dimension in mm(H x M x D): |
310 x 370 x 295 |
| Operation Mode: |
Continuous operation |
| Type of Electric Shock Protection: |
Class II |
| Capacity of Electric Shock Protection: |
Applied part, Type B |
| Degree of protection against harmful ingress of water: |
Ordinary equipment(IPX4) |
| Protection against water (used on the foot pedal): |
(IPX6) |
| Security Degree in the Presence of Infammable Anaesthetics or Gases mixed with air or Nitrous Oxide: |
Not AP or APG Type |
| Operating Conditions: |
a)Ambient temperature:5℃-40℃
b)Relative Humidity:≤80%,Atmospheric Pressure:75KPa- 106KPa
c) Supply Voltage:100 V-240V~ 50-60 Hz
d) Wireless Foot Pedal: Emissive frequency:2 4 GHz- 25GHz,auto hopped frequency. Modulatio GFSK. Efective radiated power:12dbm
|
| Main unit: |
1
|
| Disinfection box: |
2
|
| Powder bottle: |
2
|
| PH-2 LED ultrasonic piezo handpiece: |
2
|
| AH-1 supragingival air-polishing handpiece: |
2
|
| AH-2 subgingival air-polishing handpiece: |
1
|
| Water Tank: |
2
|
| Wireless foot pedal: |
1
|
| Wired foot pedal: |
1
|
| Wrench of endo file: |
1
|
| Q6 subgingival air-polishing tip: |
40
|

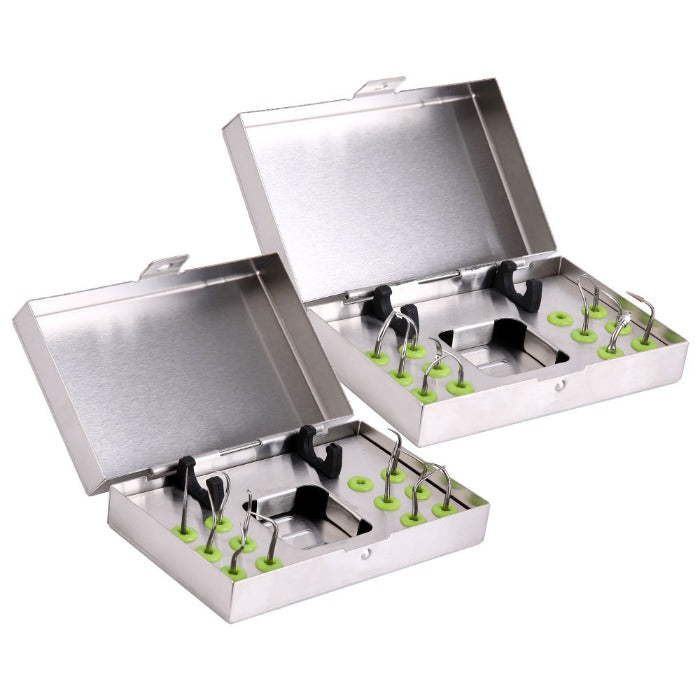

| Scaling tips: |
22
|
| 20# Endo file: |
6
|
| 25# Endo file: |
6
|
| Torque tip wrench: |
2
|
| Endo File wrench: |
1
|
| Protective goggles: |
1
|
| Ultrasonic endo file: |
1
|
| Anti powder blocking components: |
1
|
