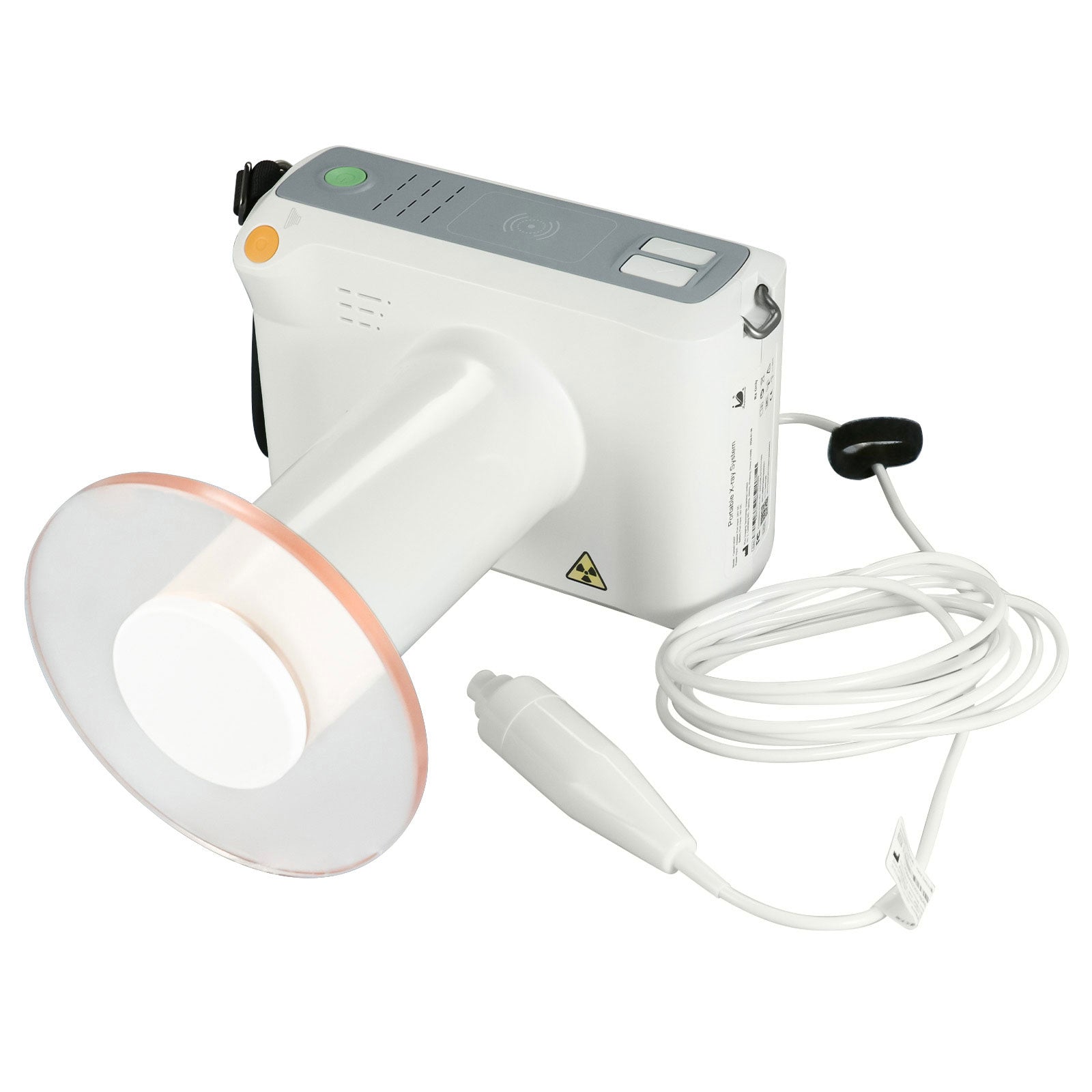

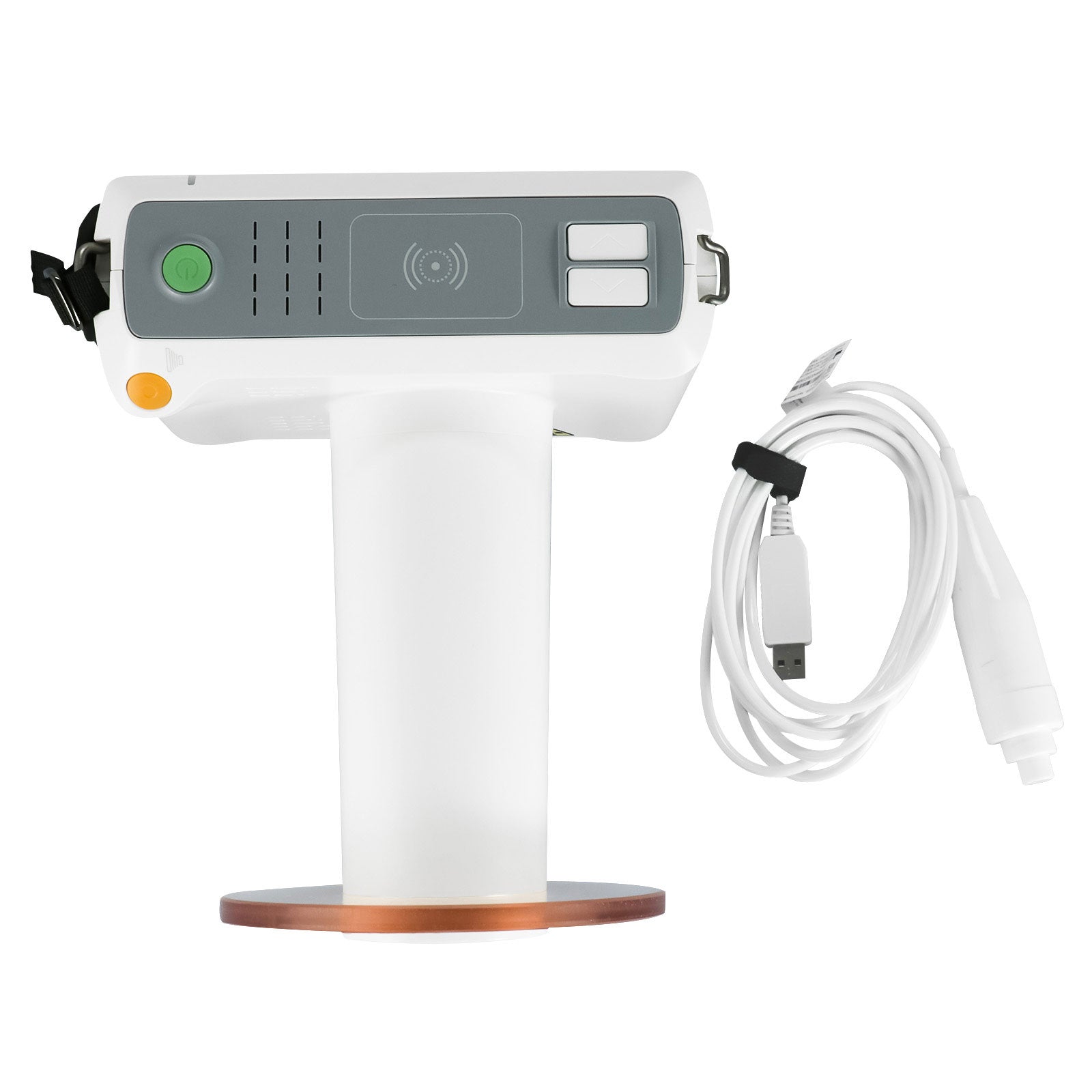

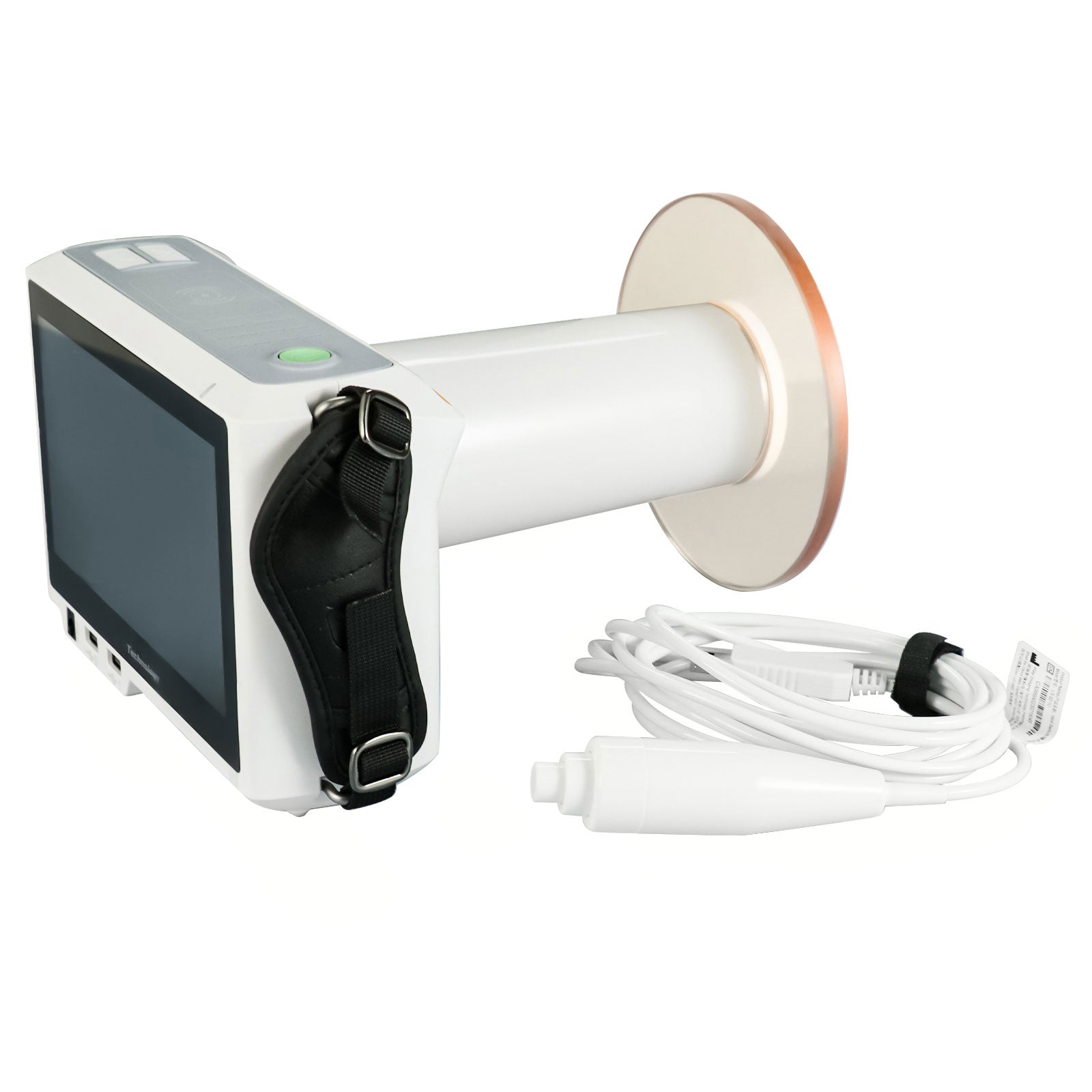

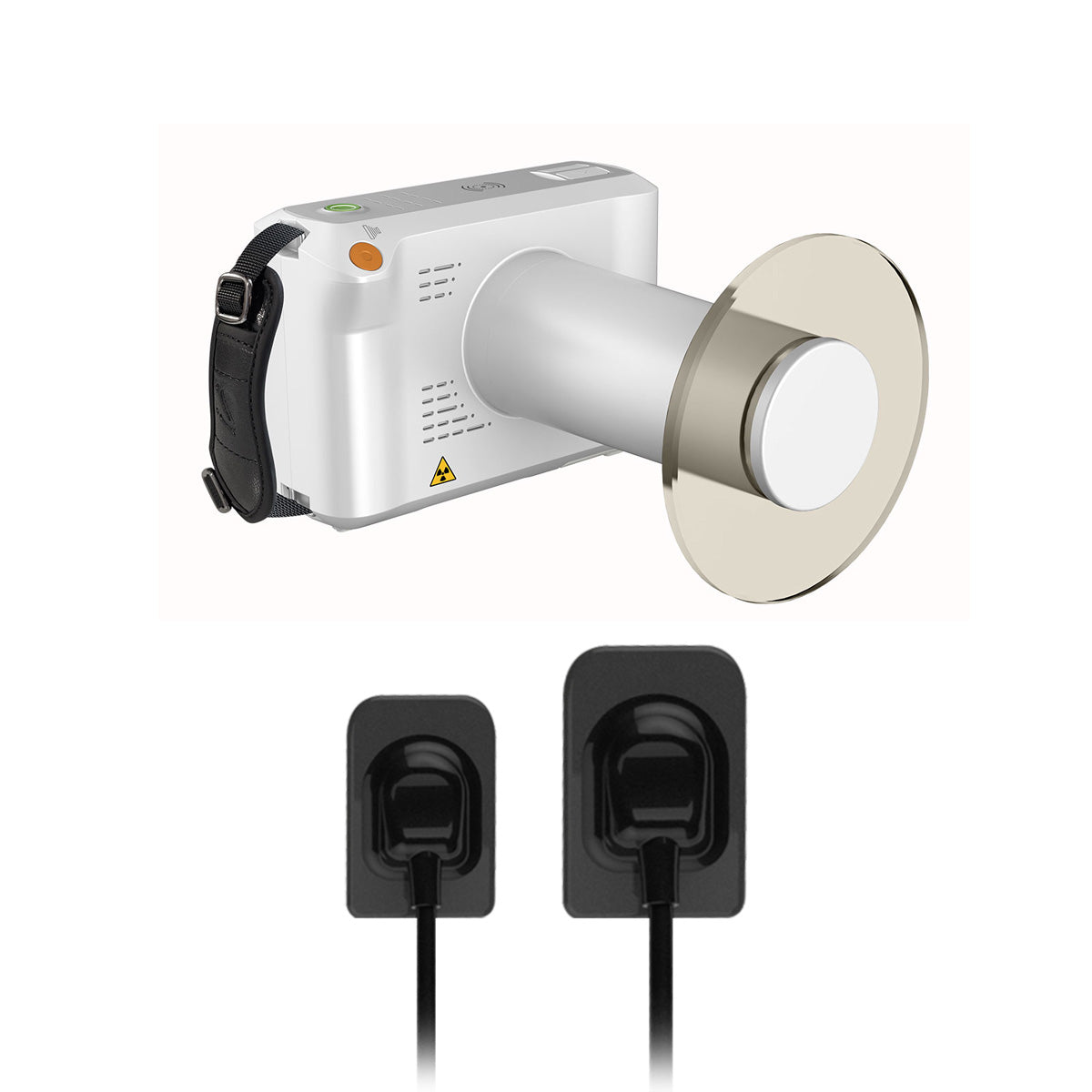

Dental iRay Handheld Portable X Ray Machine with X-Ray Digital Intra-oral Sensor Kit. FDA Approved. X Ray Machine is simple operation. Crisp imaging. Effortless connectivity. Compact and lightweight. Capture and view images instantly for efficient workflow. Organize patient data efficiently for better record-keeping. Automatic pitch angle display, ensure optimal positioning for accurate X-ray results. Wireless image transmission. Support multi-language. Note: product does come with its own software system and only supports its own software.

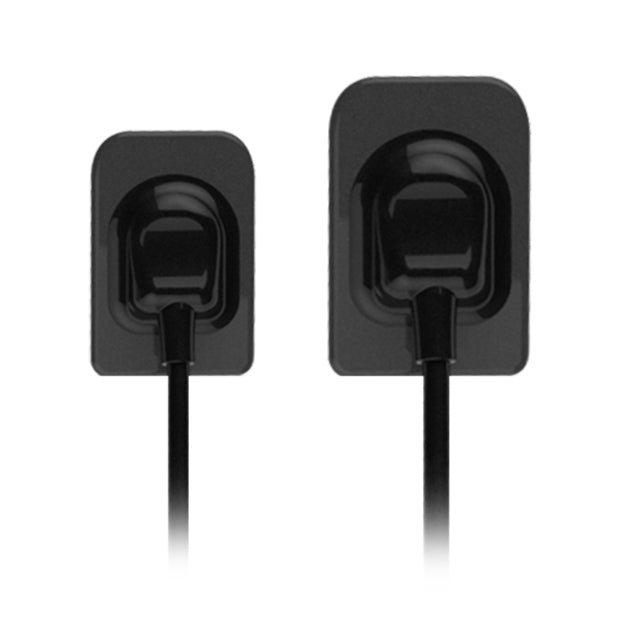

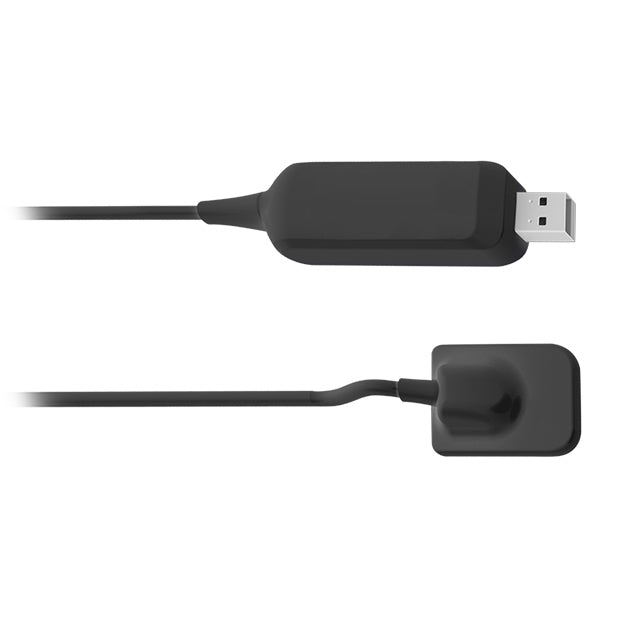

Pluto 0001X and Pluto 0002X X-Ray Digital Intra-oral Sensors are digital size-1 and size-2 intra-oral sensor. It features a 20 μm pixel pitch CMOS sensor with CsI scintillator which ensures optimal resolution. The sensor has an ergonomic design with smooth edges, rounded corners, and a flexible cable for maxi-mum patient comfort. An easy to use hi-speed direct USB interface enables a simple con-nection to a PC without need for an additional control box. Note: Direct integration software: iRay DR software, Dental Eye, Tigerview, Cadi. Works with TWAIN supported software, our TWAIN works well with Dexis. The computer operating system adapted by our products is win7-win11.

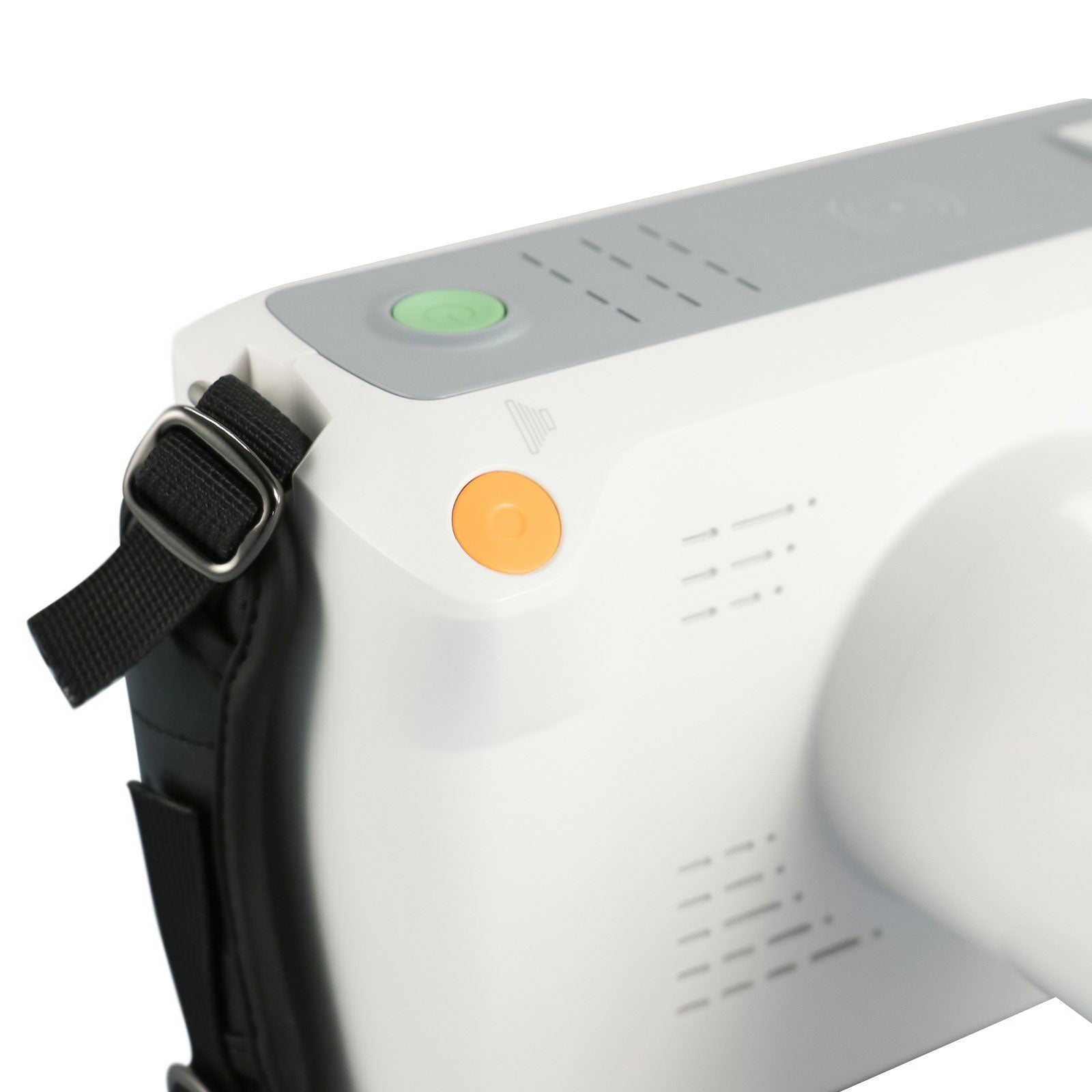

| Overview of X Ray Machine |
-

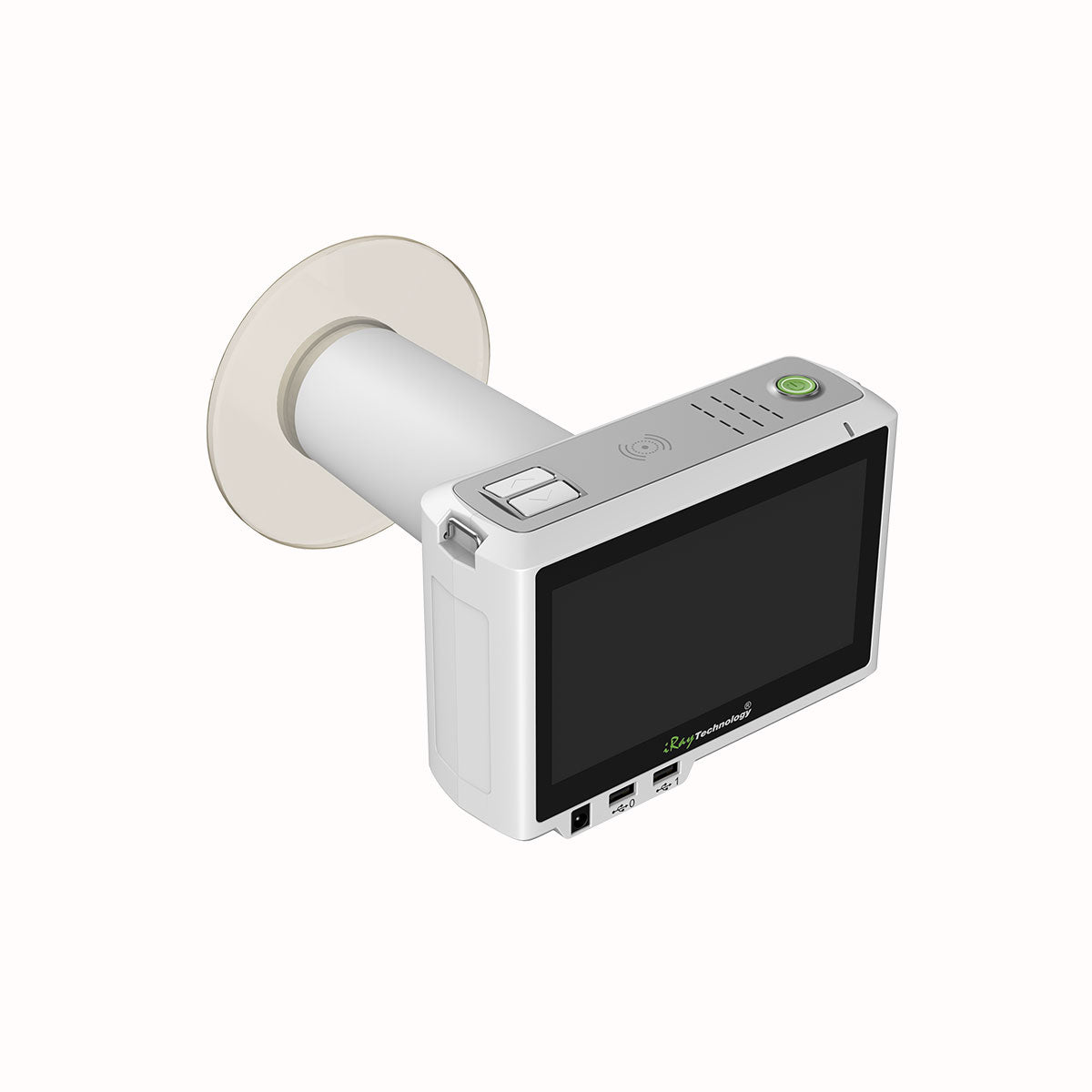

Simple Operation: Featuring a 7-inch LCD touch screen and Android Operating System, Canis 014D07 ensures intuitive control right at your fingertips.
-

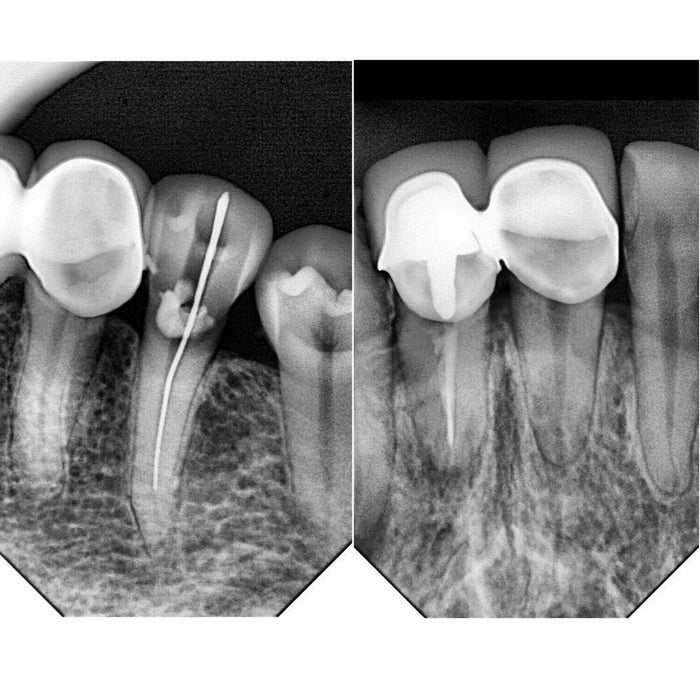

Crisp Imaging: Powered by iRay sensor technology, this device delivers clear and precise images, facilitating accurate diagnostics.
-
Effortless Connectivity: It can use iRay sensor, transfer images seamlessly via WiFi or USB, enabling quick and convenient sharing and analysis.
-
Compact and Lightweight: Designed for practicality, Canis 014D07 is small and lightweight, making it easy to maneuver and transport between patients variety of network connection modes.
-
Experience the efficiency and reliability of Canis 014D07: the handheld intra-oral X-ray solution designed to enhance your practice.
|
| Features of X Ray Machine |
-
Android Operating system, easy to understand screen: Navigate settings and view images with ease.
-
Shoot and see: image enhancement, move, Reverse color, contrast etc. Capture and view images instantly for efficient workflow.
-
Independent patient management: Organize patient data efficiently for better record-keeping.
-
Automatic Pitch angle display: Ensure optimal positioning for accurate X-ray results.
-
Replaceable battery: Keep your device powered up for extended periods.
- Wireless image transmission
- Light weight
- Support multi-language
|
| Overview of X-Ray Digital Sensor |
- CMOS detector technology
- Low dose clinical imaging
- High resolution
- Ensures optimal resolution with a 20 μm pixel pitch CMOS sensor and CSI scintillator.
- Wide dynamic range
- Pluto 0001X suitable for children and adults
- Pluto 0002X suitable for adults

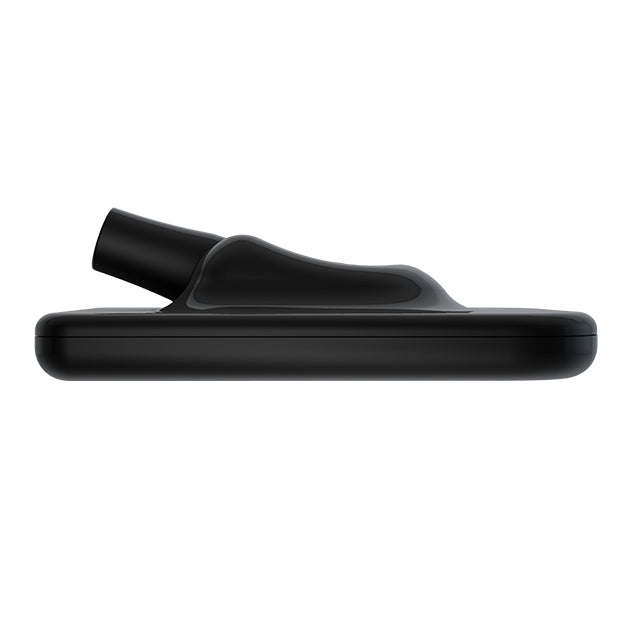

- Slim, rounded corner and smooth edge
- Direct USB connectivity
- Easy to Use. Smart and Powerful Software. Waterproof. Durable.
- AED trigger, fast and easy workflow
- Durable material and components
- Friendly software user interface
- Works with TWAIN supported software. TWAIN works well with Dexis.
|
| Technical Parameter of X Ray Machine |
| Operating System: |
Android |
| Screen: |
7-inch Touch Screen |
| W: |
140 |
| kV: |
70 |
| mA: |
2 |
| Exposure Time (s): |
0.04-2 |
| Anode Angle: |
12° |
| Spot: |
0.4mm |
| Data Transmission: |
Wireless & USB |
| Total Filter: |
≥1.5mmAL |
| Weight (kg): |
≈2 |
| Internal Radiation Shielding: |
0.1Gy/h@1m |
| Operating Temperature (℃): |
10-40 |
| Storage & Transport Temperature with Package (℃): |
-10-45 |
| Operating Humidity (% RH) (Non-Condensing): |
30-75 |
| Storage & Transport Humidity with Package (% RH) (Non-Condensing): |
30-75 |
| Technical Parameter of X-Ray Sensor |
| Model: |
Pluto 0001X |
Pluto 0002X |
| Detector Technology: |
CMOS |
CMOS |
| Scintillator: |
Direectly deposited CsI: TI |
Direectly deposited CsI: TI |
| Pixel Pitch (μm): |
20 |
20 |
| Active Area (mm²): |
20 x 30 |
26 x 36 |
| AD Conversion (bit): |
14 |
14 |
| Exposure Mode: |
Smart AED |
Smart AED |
| X-ray Exposure Window (s): |
Max. 5s |
Max. 5s |
| X-ray Energy Range (kV): |
55～100kV |
55～100kV |
| Data Interface: |
5G Wifi |
5G Wifi |
| Power Dissipation (W): |
≤0.8W |
≤0.8W |
| Dimensions (mm3): |
25.0 × 38.5 × 4.5 |
31.0 × 45.0 × 4.5 |
| Length of cable(m): |
3m(Standard), 5m(Option) |
3m(Standard), 5m(Option) |
| Housing material: |
Kevlar |
Kevlar |
| X-Ray shielding: |
Pb-shield behind active area |
Pb-shield behind active area |
| Radiation dose: |
≥ 50Gy |
≥ 50Gy |
| Ingress Protection: |
IP68 |
IP68 |
| Operating Temperature (℃): |
10 ~ 40 |
10 ~ 40 |
| Storage & Transport Temperature with Package (℃): |
-10~60 |
-10~60 |
| Operating Humidity (% RH): |
20 ~ 90 (Non-Condensing) |
20 ~ 90 (Non-Condensing) |
| Storage & Transport Humidity with Package (% RH): |
10 ~ 95 (Non-Condensing) |
10 ~ 95 (Non-Condensing) |
