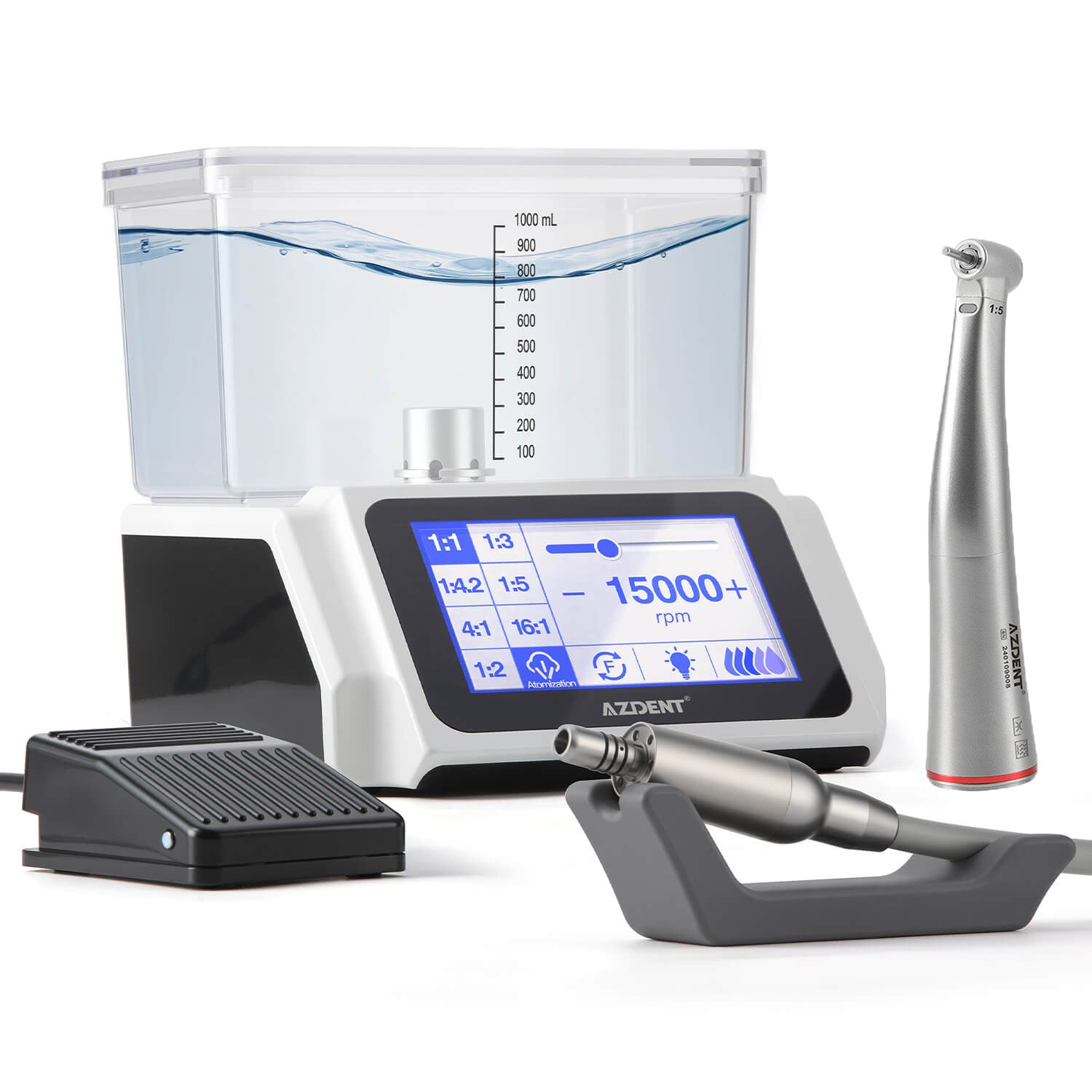

AZDENT LED Electric Brushless Surgery Motor System + 1:5 LED Electric Contra Angle Handpiece - azdentall.com

AZDENT LED Electric Brushless Surgery Motor System + 1:5 LED Mini Electric Contra Angle Handpiece - azdentall.com

Load video: AZDENT Dental LED Electric Brushless Surgery Motor System Touch Screen with Water Supply - azdentall.com

AZDENT Dental LED Electric Brushless Surgery Motor System Touch Screen with Water Supply - azdentall.com

AZDENT Dental LED Electric Brushless Surgery Motor System Touch Screen with Water Supply. Multi function integration: Minimally invasive tooth extraction, refined aesthetic restoration. Atomized cooling: Protect surgical area from heat damage. Brushless motor/ High-power Low noise: Compact motor worktable performance.

AZDENT Dental 1:5 (Mini) Increasing Fiber Optic Electric Contra Angle Handpiece Stainless Steel Body Ceramic Bearing Internal Four Way Spray. Push Button. Max.200,000rpm/min. E-type. Stainless steel body, wear resistant. Optical fiber illumination, high brightness. Compatible with E-type optical fiber motor.

Overview

Own Water Supply System, 1000mL large capacity water tank with 6-speed water regulation, using sterile water such as distilled water, working independently.
Automatic water and air supply systems. Free to place, no need to install on the dental unit，can water atomization.
Fewer aerosols, stable output.
Over 50% aerosols fewer than air-driven handpieces.
3.7-inch LCD color touch screen, with 7 different speeds for one click selection , suitable for multiple scenarios and easy operation.
The wide range of speed adjustment is easily suitable for a variety of restoration.
High performance brushless motor. Built-in LED lighting system for more accurate surgery.
Motor matches the ISO-E type international connection.

Surgery Motor System Specifications

Power input:	AC100-240V, 50/60Hz, 1.5A
Host input:	DC30V, 2A
Main unit size:	178mm × 172mm × 80mm
Water tank size:	180mm x 97mm x 95mm
Water tank capacity:	1000mL
Spray water source:	water pressure of 2-5 bar, outlet flow rate>50ml/min
Spray air source:	air pressure 2-5bar, air flow>1.5L/min
Motor Speed range:	2000~40000rpm
Input voltage:	DC30V
Motor Size:	Diameter Φ22.5mmx80mm
Cable length:	1.8m

1:5 Electric Handpiece Specifications

Gear Ratio:	1:5
Chuck Type:	Push Button
Bearing:	Ceramic
Head Size:	Ø10*14.65mm
Rotation Speed:	Max.200,000rpm/min
Bur Applicable:	Φ1.59-1.60mm
Connector:	E-type
Water Spray:	Internal four way spray
Noise:	≤68dB

1:5 Mini Electric Handpiece Specifications

Gear ratio:	1:5
Chuck Type:	Push button
Bearing:	Ceramic bearing, anti-retraction cartridge
Head size:	Ø8.75*13.4mm
Rotation Speed:	Max.200,000rpm/min
Bur Applicable:	Φ1.59-1.60mm
Connector:	E-type
Water Spray:	Internal four way spray
Noise:	≤68dB

Packing list

Tank cover:	1 PC
Control unit:	1 PC
Main unit:	1 PC
Rear cover:	1 PC
The motor:	1 PC
Capping:	1 PC
Silicone holder:	1 PC
Foot switch:	1 PC
AC adapter:	1 PC
Oring:	φ22 * 3pcs φ2.7 * 6pcs φ9 * 20pcs φ17 * 2pcs φ6.6 * 5pcs
1:5 (Mini) Electric Contra Angle Handpiece:	1 PC

AZDENT Dental LED Electric Brushless Surgery Motor System Touch Screen with Water Supply - azdentall.com

AZDENT LED Electric Brushless Surgery Motor System + 1:5 LED Electric Contra Angle Handpiece

Name: AZDENT LED Electric Brushless Surgery Motor System + 1:5 LED Electric Contra Angle Handpiece
Brand: AZDENT
SKU: 122001025+122004031
Price: 493.22 USD
Availability: InStock

Warehouse For US

Ships in 1-6 business days For US customers. (We can't ship to PO Box address!)

SKU: 122001025+122004031

Available in stock (14)

Save 12%

$493.22

$493.22 ~~$563.98~~

$468.56

with 5% OFF Order Over $200

Model: Surgery Motor System & 1:5 Electric Handpiece

Surgery Motor System & 1:5 Electric Handpiece

Surgery Motor System & 1:5 Mini Electric Handpiece

5%OFF Order Over $200

10%OFF Order Over $1000

Free Standard Shipping for All Orders

Shipping times: in 3-6 days

30-Day Return or Refund

We allow customers to apply for return or refund, exchange within 30 days after the receipt of the goods. If 30 days have gone by since your receipt of the goods, unfortunately we can’t offer you a refund or exchange.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Overview

Own Water Supply System, 1000mL large capacity water tank with 6-speed water regulation, using sterile water such as distilled water, working independently.
Automatic water and air supply systems. Free to place, no need to install on the dental unit，can water atomization.
Fewer aerosols, stable output.
Over 50% aerosols fewer than air-driven handpieces.
3.7-inch LCD color touch screen, with 7 different speeds for one click selection , suitable for multiple scenarios and easy operation.
The wide range of speed adjustment is easily suitable for a variety of restoration.
High performance brushless motor. Built-in LED lighting system for more accurate surgery.
Motor matches the ISO-E type international connection.

Surgery Motor System Specifications

Power input:	AC100-240V, 50/60Hz, 1.5A
Host input:	DC30V, 2A
Main unit size:	178mm × 172mm × 80mm
Water tank size:	180mm x 97mm x 95mm
Water tank capacity:	1000mL
Spray water source:	water pressure of 2-5 bar, outlet flow rate>50ml/min
Spray air source:	air pressure 2-5bar, air flow>1.5L/min
Motor Speed range:	2000~40000rpm
Input voltage:	DC30V
Motor Size:	Diameter Φ22.5mmx80mm
Cable length:	1.8m

1:5 Electric Handpiece Specifications

Gear Ratio:	1:5
Chuck Type:	Push Button
Bearing:	Ceramic
Head Size:	Ø10*14.65mm
Rotation Speed:	Max.200,000rpm/min
Bur Applicable:	Φ1.59-1.60mm
Connector:	E-type
Water Spray:	Internal four way spray
Noise:	≤68dB

1:5 Mini Electric Handpiece Specifications

Gear ratio:	1:5
Chuck Type:	Push button
Bearing:	Ceramic bearing, anti-retraction cartridge
Head size:	Ø8.75*13.4mm
Rotation Speed:	Max.200,000rpm/min
Bur Applicable:	Φ1.59-1.60mm
Connector:	E-type
Water Spray:	Internal four way spray
Noise:	≤68dB

Packing list

Tank cover:	1 PC
Control unit:	1 PC
Main unit:	1 PC
Rear cover:	1 PC
The motor:	1 PC
Capping:	1 PC
Silicone holder:	1 PC
Foot switch:	1 PC
AC adapter:	1 PC
Oring:	φ22 * 3pcs φ2.7 * 6pcs φ9 * 20pcs φ17 * 2pcs φ6.6 * 5pcs
1:5 (Mini) Electric Contra Angle Handpiece:	1 PC

AZDENT Dental LED Electric Brushless Surgery Motor System Touch Screen with Water Supply - azdentall.com

FAQs

1. How to install AZDENT Dental LED Electric Brushless Surgery Motor System Touch Screen with Water Supply?

Product installation steps:

Open the packaging, check if all items of this equipment are completeaccording to the packing list,and place the main unit facing the operation on astable platform.
Connect the input power cord of the power adapter and connect the outputend of the power adapter to the host DC adapter interface.
Align the positioning groove of the foot pedal interface with the positioningprotrusion of the host foot pedal interface and insert it, then tighten the footpedal cable nut.
Take out the water tank,align it with the inlet valve seat on the top cover of themain unit, and place the water tank on the top cover of the main unit.
Take out the water tank,align it with the inlet valve seat on the top cover of themain unit,and place the water tank on the top cover of the main unit.

2. How to clean, disinfect and sterilize AZDENT Dental LED Electric Brushless Surgery Motor System Touch Screen with Water Supply?

Clean
After use, please clean the control panel with a damp cloth. Before cleaning, the power should be cut off. For cleaning the surface of the motor, use a cloth with water absorption to remove any liquid residue on the surface, and wipe itrepeatedly 3~5 times.
Disinfect
Use chlorine free disinfectant to wipe and disinfect the motor. It is recommended to use Cavicide disinfectant or 75% alcohol, and do not soak it.
Dry
Allow all cleaned and disinfected components to dry thoroughly in indoor air.
Package
Seal the contra angle in a sterilization bag.
Sterilization
Place the sterilization bag into the high-pressure steam sterilization box, and it is recommended to use high-pressure steam sterilization at 135℃(273 F), (0.2-0.23) MPa for at least 4 minutes. After sterilization, it needs to be dried.
