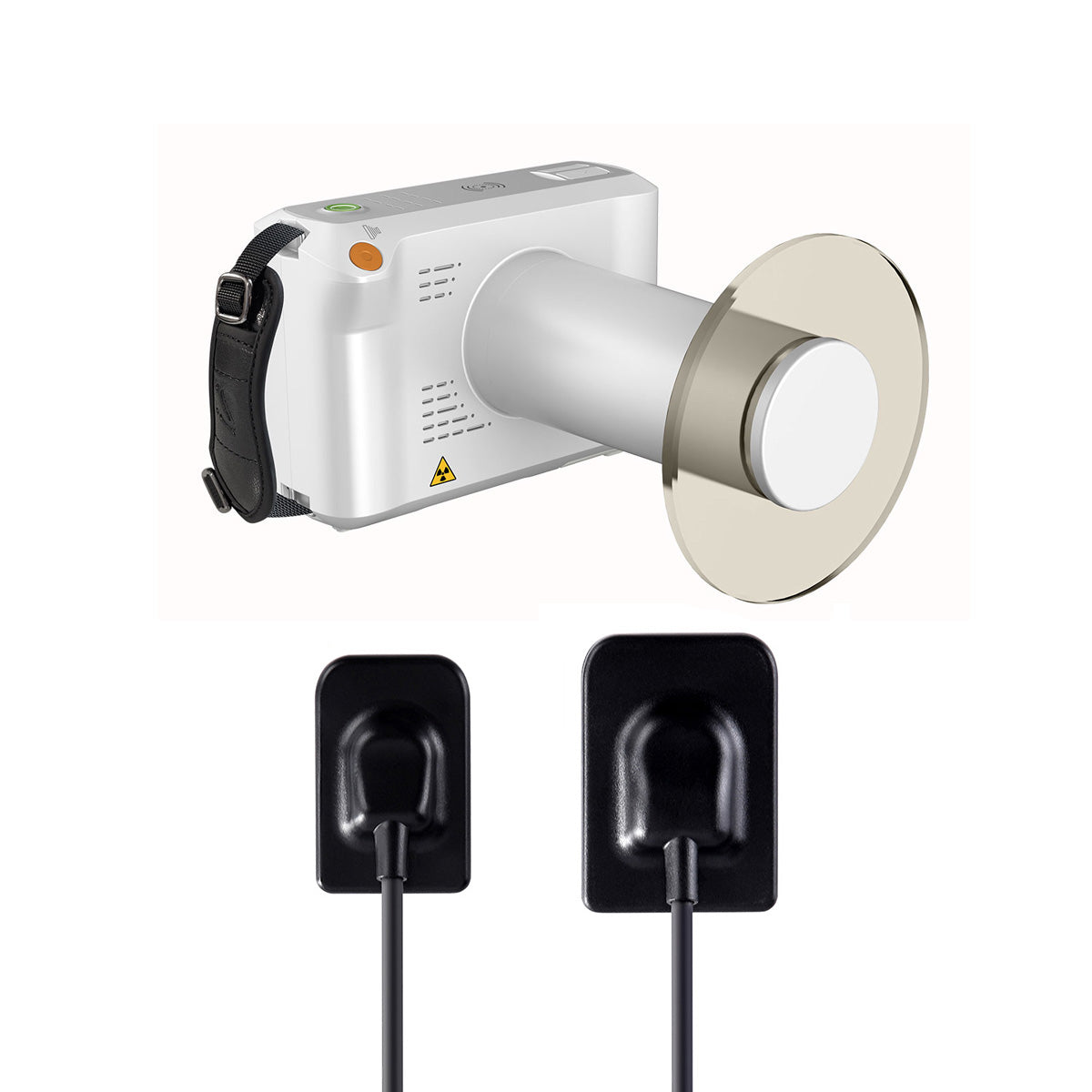

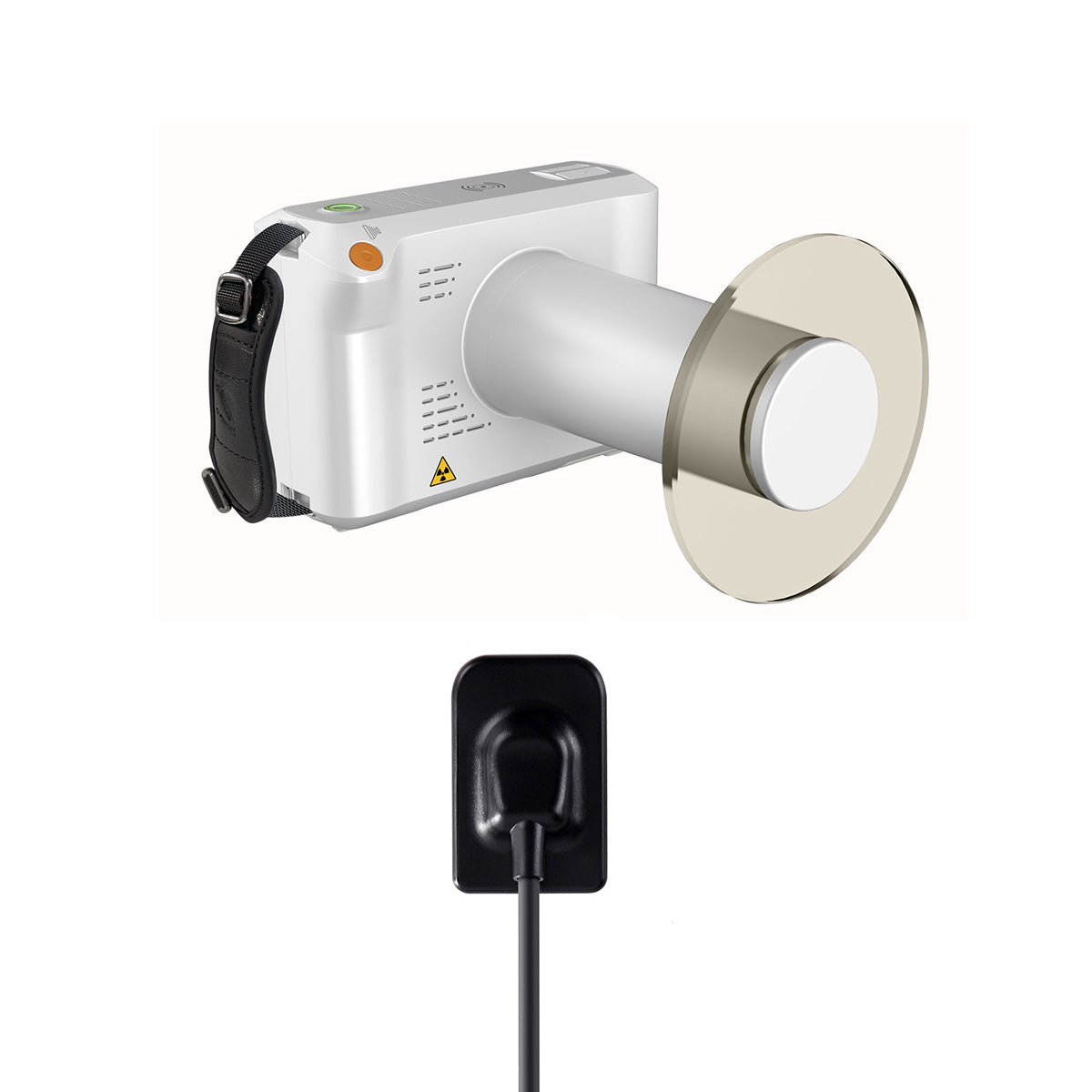

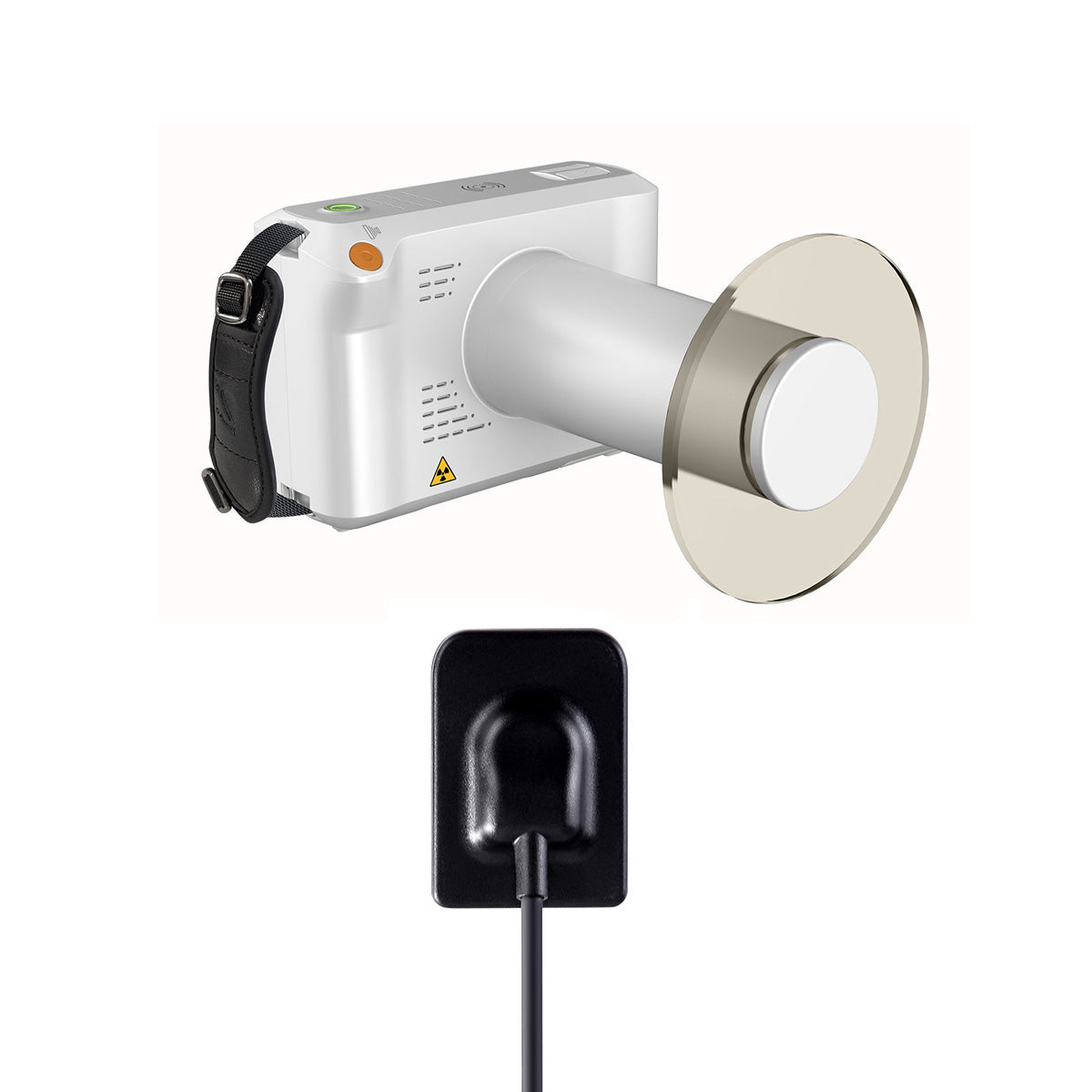

iRay Dental Handheld Portable X Ray Machine with X-Ray Digital Intraoral Sensor S1/S2 Kit. FDA Approved.
Dental iRay Handheld Portable X Ray Machine LCD Touch Screen Advanced Dental Imaging Canis 014D07. Simple operation. Crisp imaging. Effortless connectivity. Compact and lightweight. Capture and view images instantly for efficient workflow. Organize patient data efficiently for better record-keeping. Automatic pitch angle display, ensure optimal positioning for accurate X-ray results. Wireless image transmission. Support multi-language.
Dental X-Ray Digital Sensor Intraoral HD Image With Software Achieve Multi-machine Sharing S1/S2. The sensor can achieve multi-machine sharing. The sensor is available in two sizes, with rounded corners and a thickness of only 4.4mm, making it more comfortable to use. Cables are durable, have been tested for 80,000+ bends. CMOS detector technology with CSI scintillator. Ensures optimal resolution Low dose clinical imaging. Compatible with different X-ray generators, easy to use.
Note: product does come with its own software system and it can be used for free for life.
We have the two versions of X-Ray Digital Sensor: with dongle and without dongle. They will be shipped randomly.
|

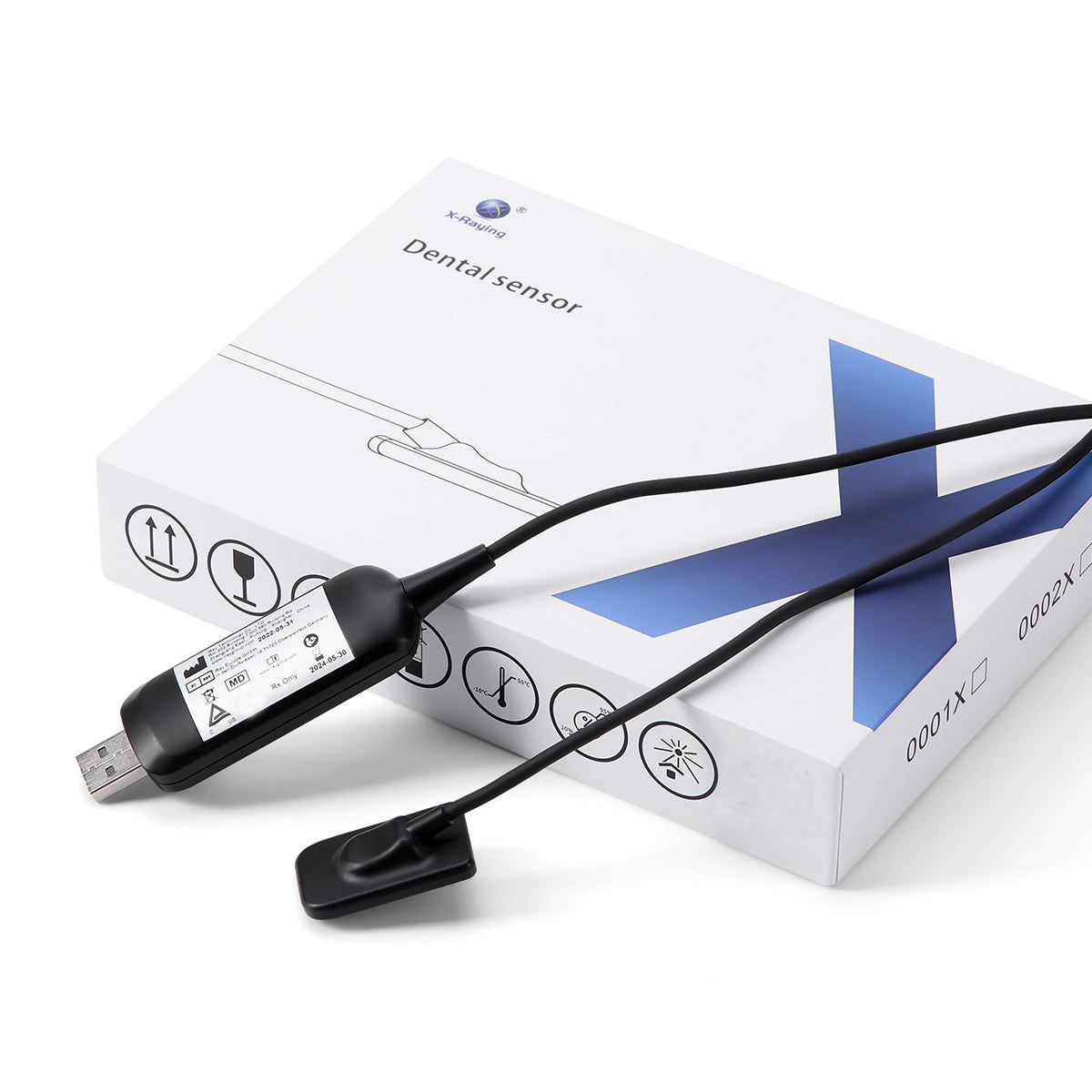

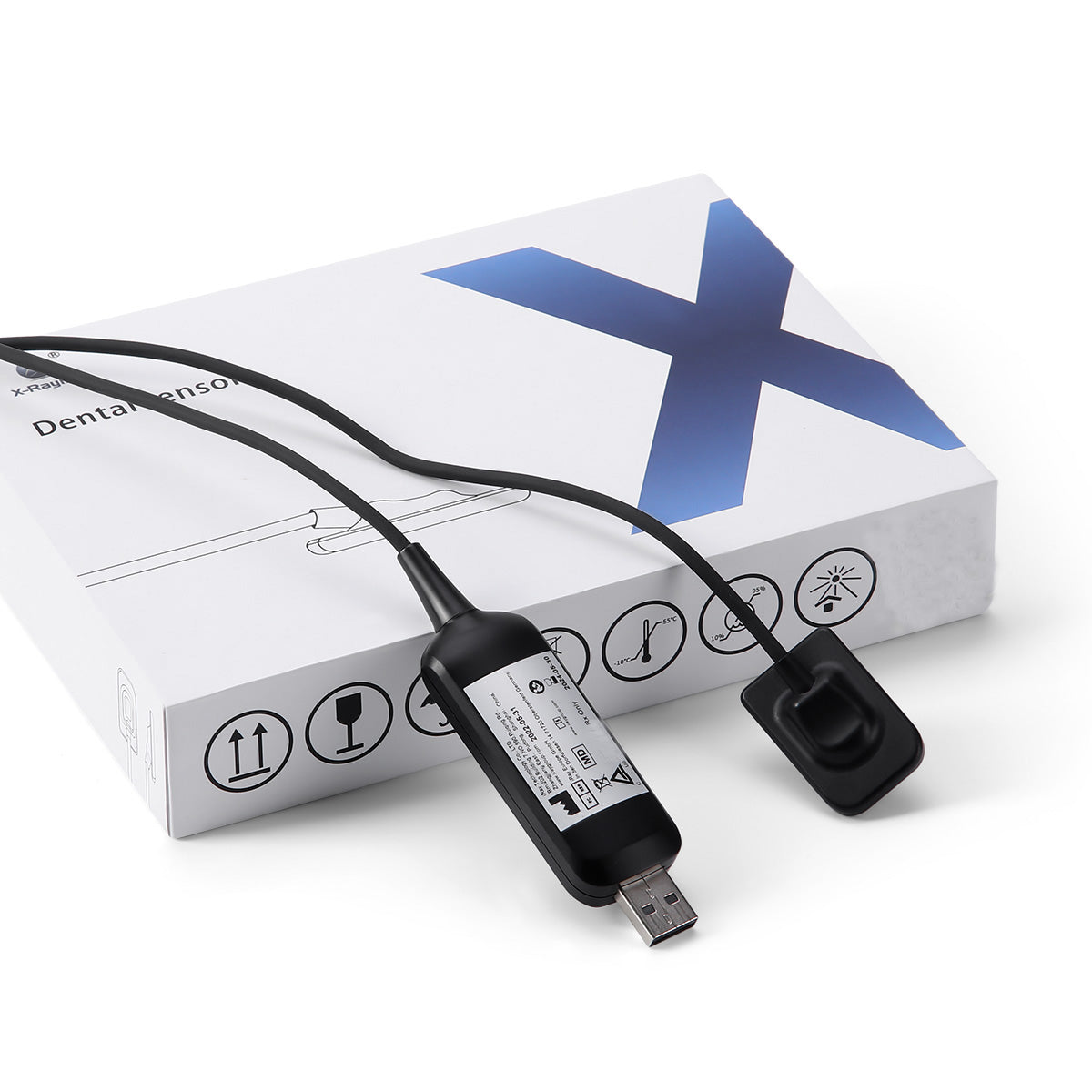

X-Ray Digital Intraoral Sensor：
- If there’s only one device, you may select “Single-User” installation. If the sensor is connected to multiple device, select “Host” for the device connected with the sensor and other devices select “Extension” to install, to achieve multi-machine sharing.

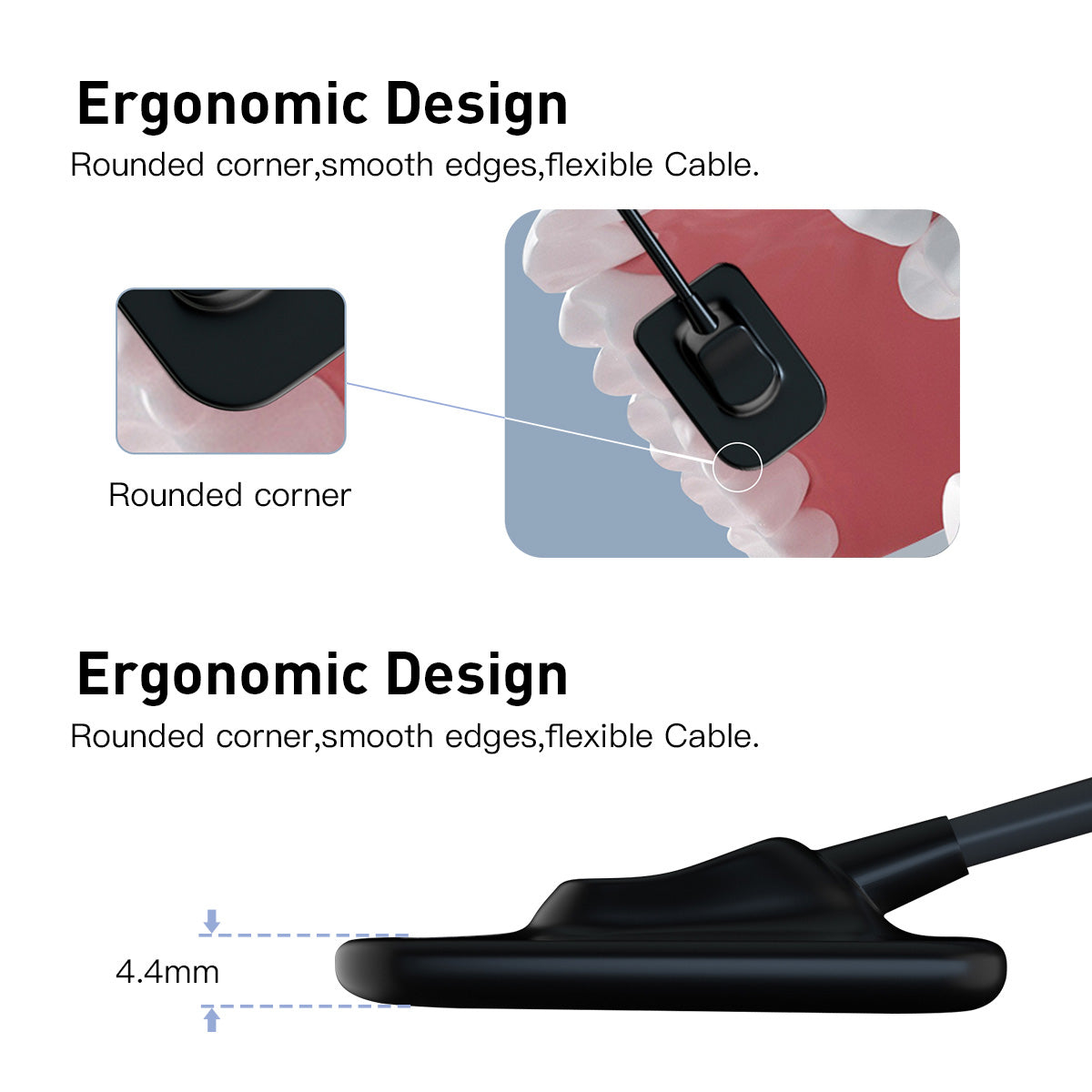

- The sensor is available in two sizes, with rounded corners and a thickness of only 4.4mm, making it more comfortable to use.

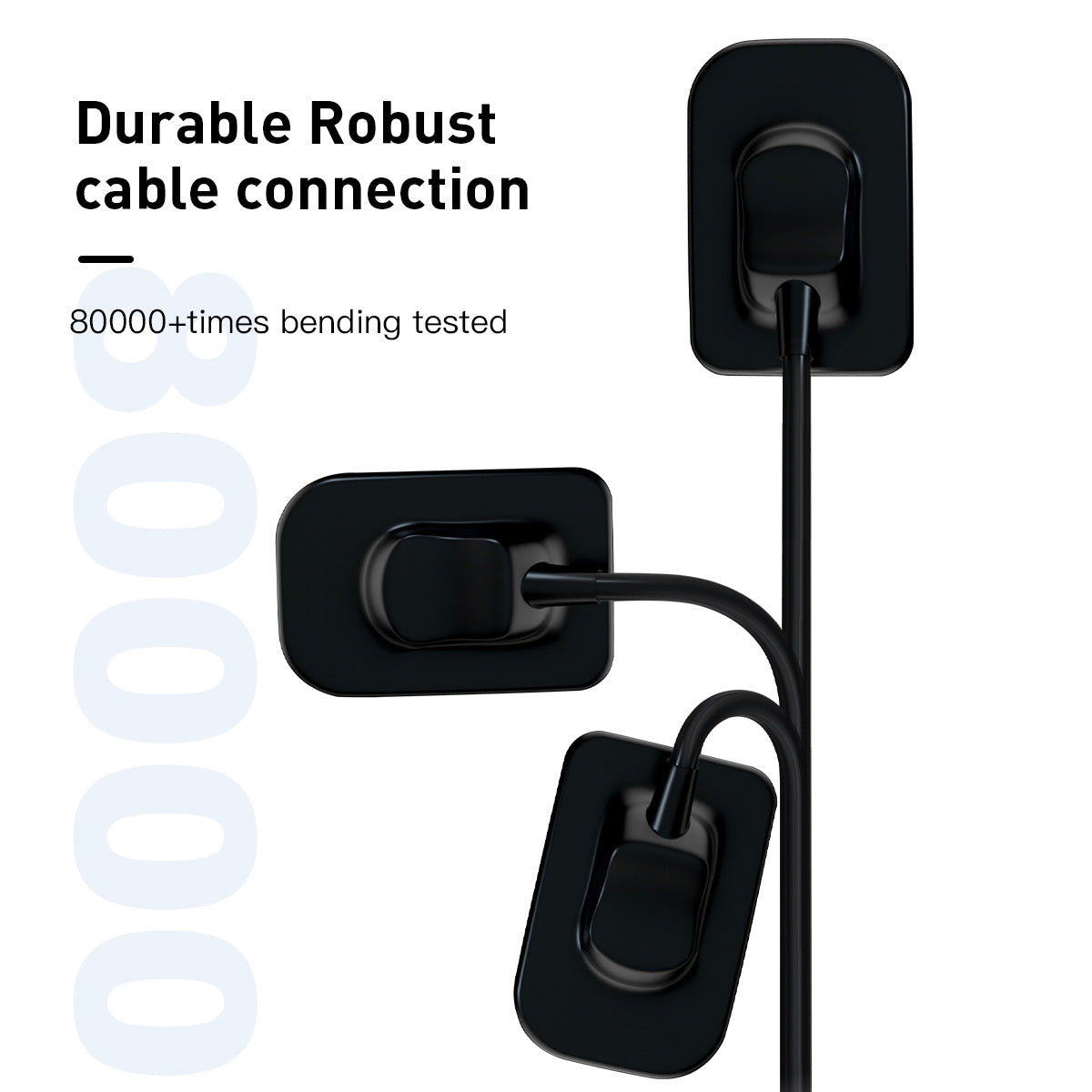

- Cables are durable，have been tested for 80,000+ bends.

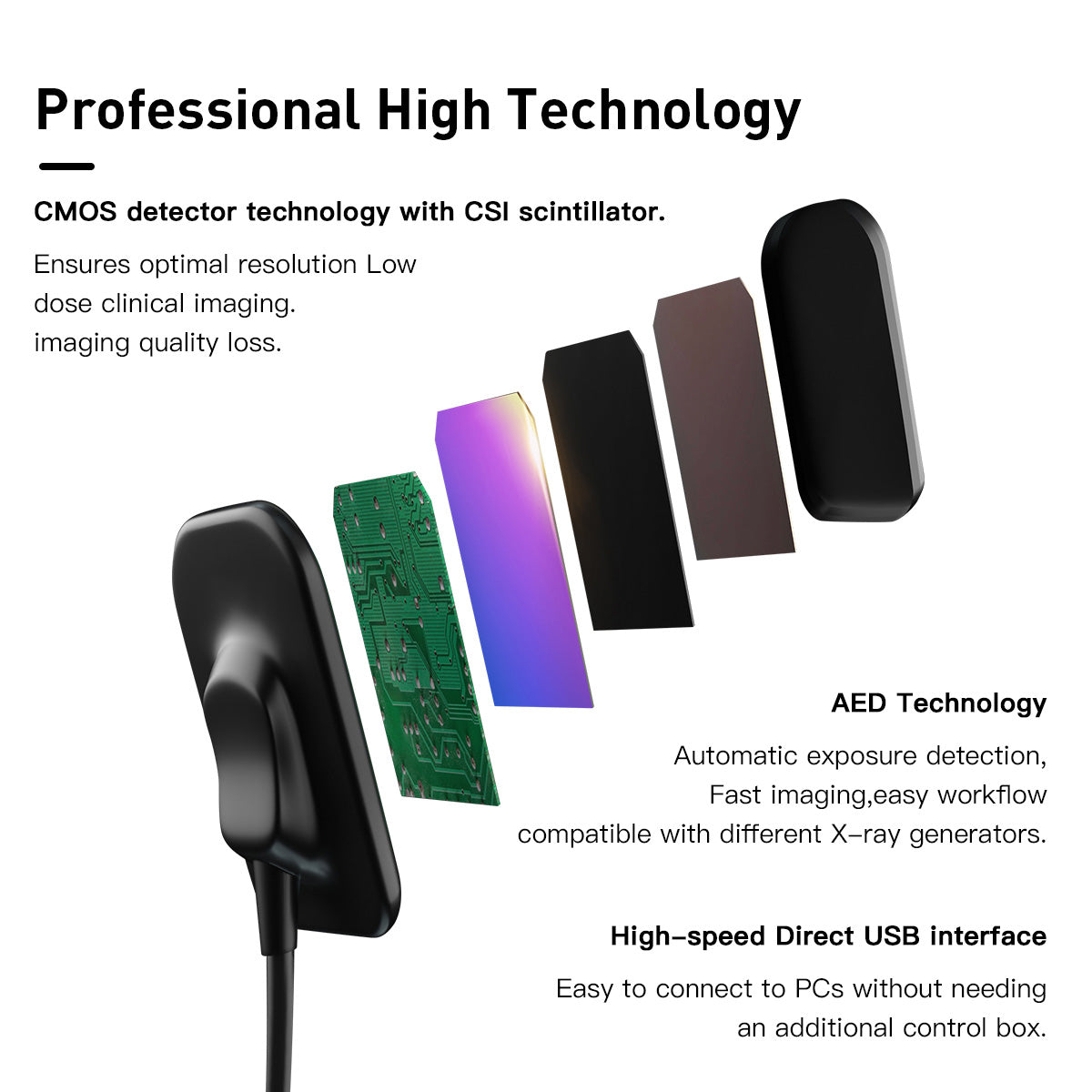

- CMOS detector technology with CSI scintillator. Ensures optimal resolution Low dose clinical imaging.
- Compatible with different X-ray generators, easy to use.
- No consumables and more cost-effective than traditional film.

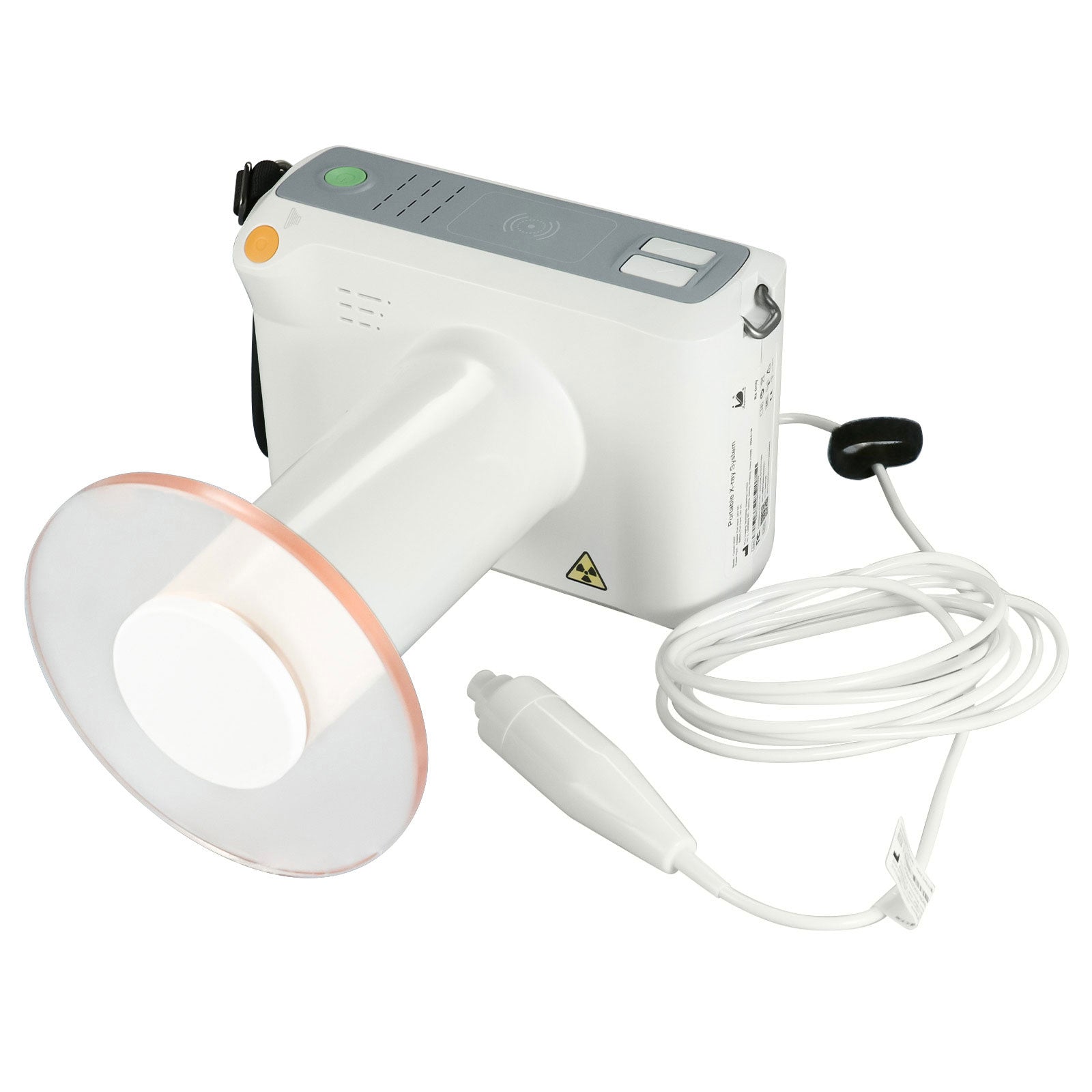

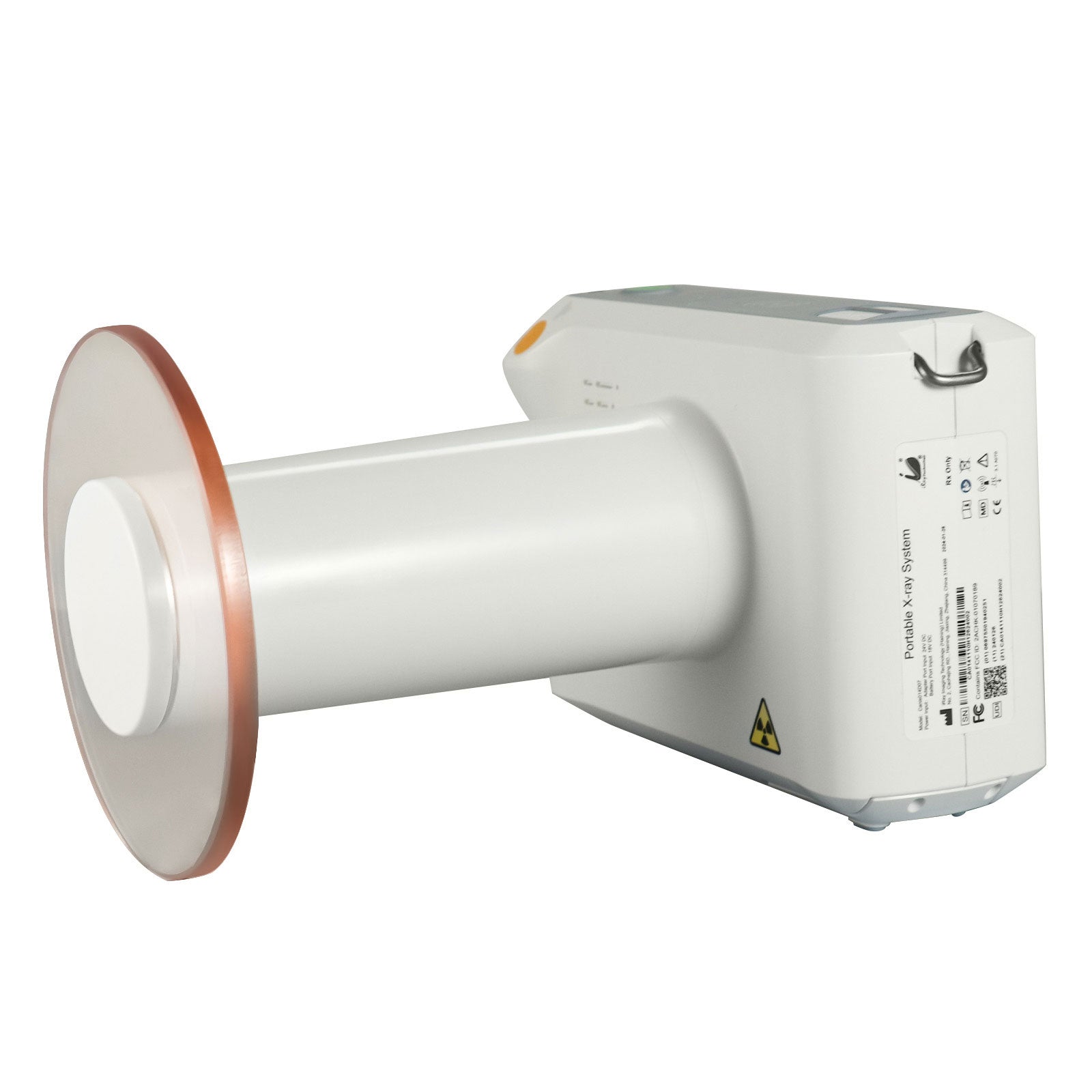

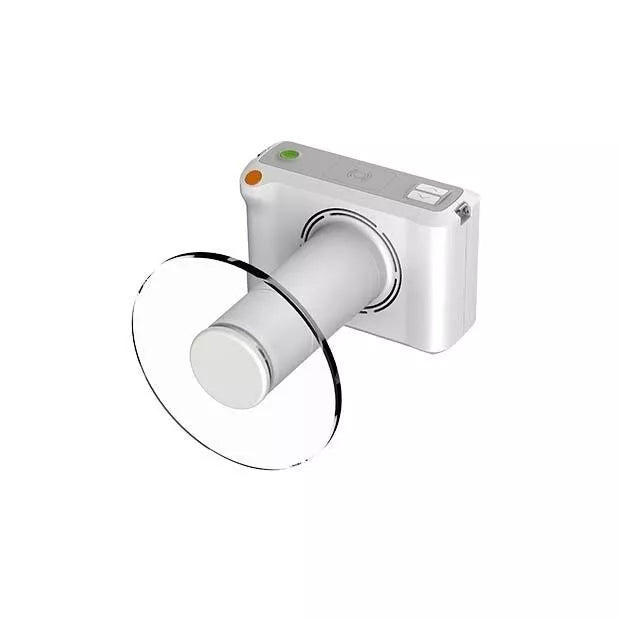

iRay X Ray Machine：
-
Simple Operation: Featuring a 7-inch LCD touch screen and Android Operating System, Canis 014D07 ensures intuitive control right at your fingertips.
-
Crisp Imaging: Powered by iRay sensor technology, this device delivers clear and precise images, facilitating accurate diagnostics.
-
Effortless Connectivity: It can use iRay sensor, transfer images seamlessly via Wifi or USB, enabling quick and convenient sharing and analysis.
-
Compact and Lightweight: Designed for practicality, Canis 014D07 is small and lightweight, making it easy to maneuver and transport between patients variety of network connection modes.
-
Experience the efficiency and reliability of Canis 014D07: the handheld intra-oral X-ray solution designed to enhance your practice.
-
Android Operating system, easy to understand screen: Navigate settings and view images with ease.
-
Shoot and see: image enhancement, move, Reverse color, contrast etc. Capture and view images instantly for efficient workflow.
-
Independent patient management: Organize patient data efficiently for better record-keeping.
-
Automatic Pitch angle display: Ensure optimal positioning for accurate X-ray results.
-
Replaceable battery: Keep your device powered up for extended periods.
- Wireless image transmission
- Light weight
- Support multi-language
|
| Hardware and Software Requirement of X Ray Sensor |
| Processor: |
1.0GHz or above |
| Memory: |
2GB or above |
Hard disk:
|
64GB or above |
| Display resolution: |
1440*900 or above |
| USB port: |
USB2.0 |
| Operating system: |
Windows 7, Windows10, Windows11 |
| Technical Parameter of X Ray Sensor |
| Model: |
S1 |
S2 |
| Detector Technology: |
APS CMOS |
APS CMOS |
| Scintillator: |
CsI |
CsI |
| Theoretical Resolution: |
25lp/mm |
25lp/mm |
| True Resolution: |
20lp/mm |
20lp/mm |
| Pixel Matrix: |
1000*1500 |
1300*1800 |
| Active Area(mm): |
20*30 |
26*36 |

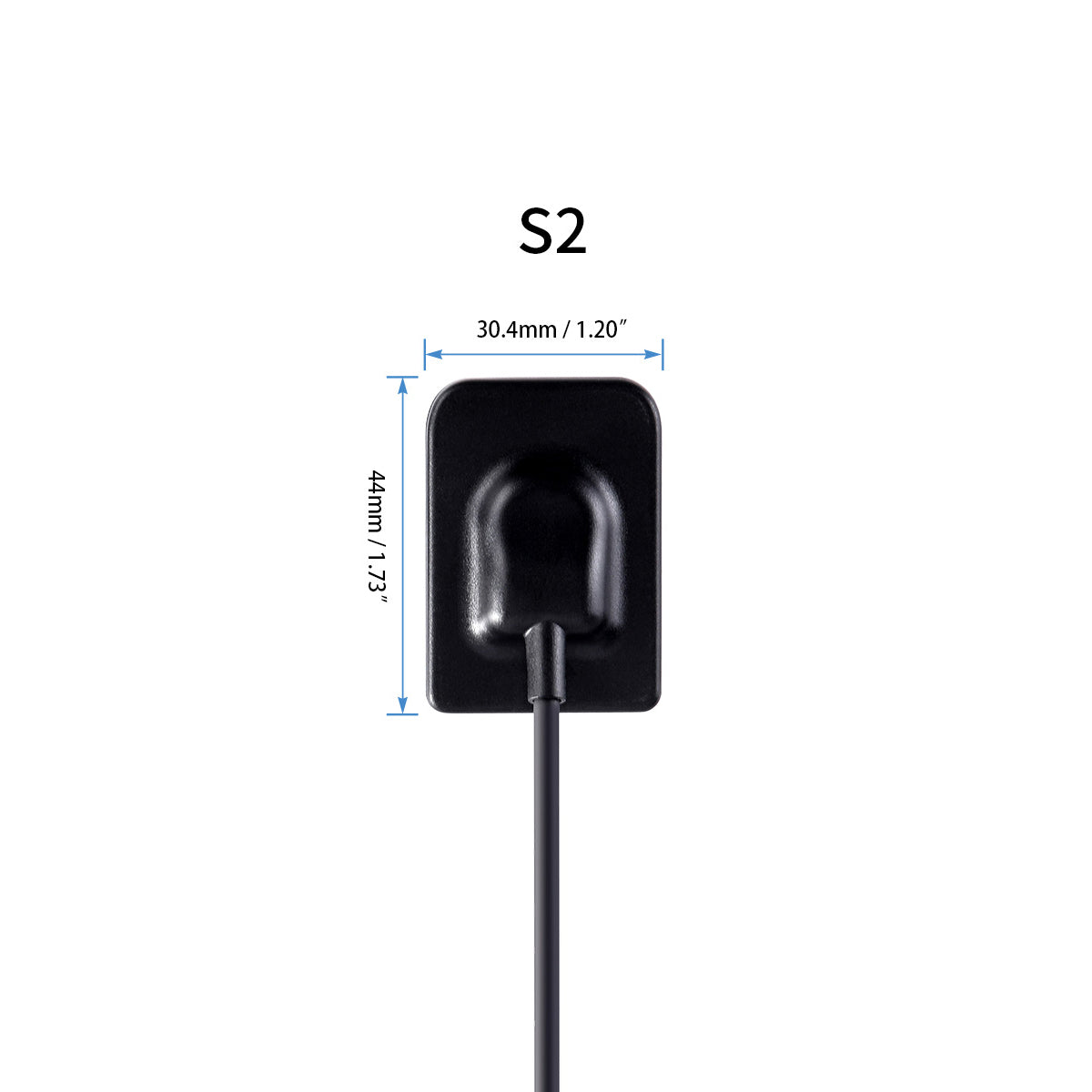

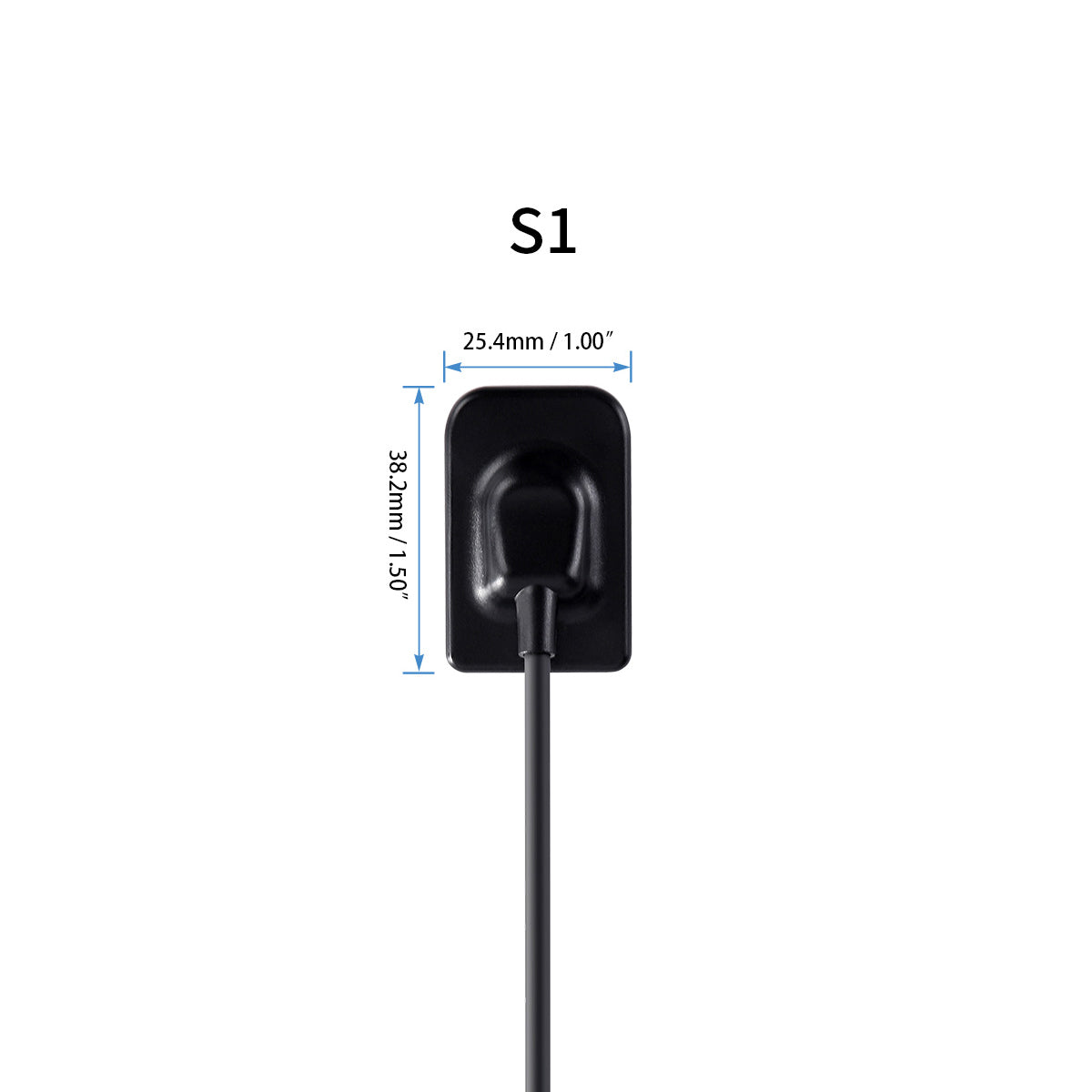

| Mechanical Size(mm): |
25.4*38.2*4.4 |
30.4*44*4.4 |
| Data interface: |
USB 2.0 |
USB 2.0 |
| AD Conversion(bit): |
16 |
16 |

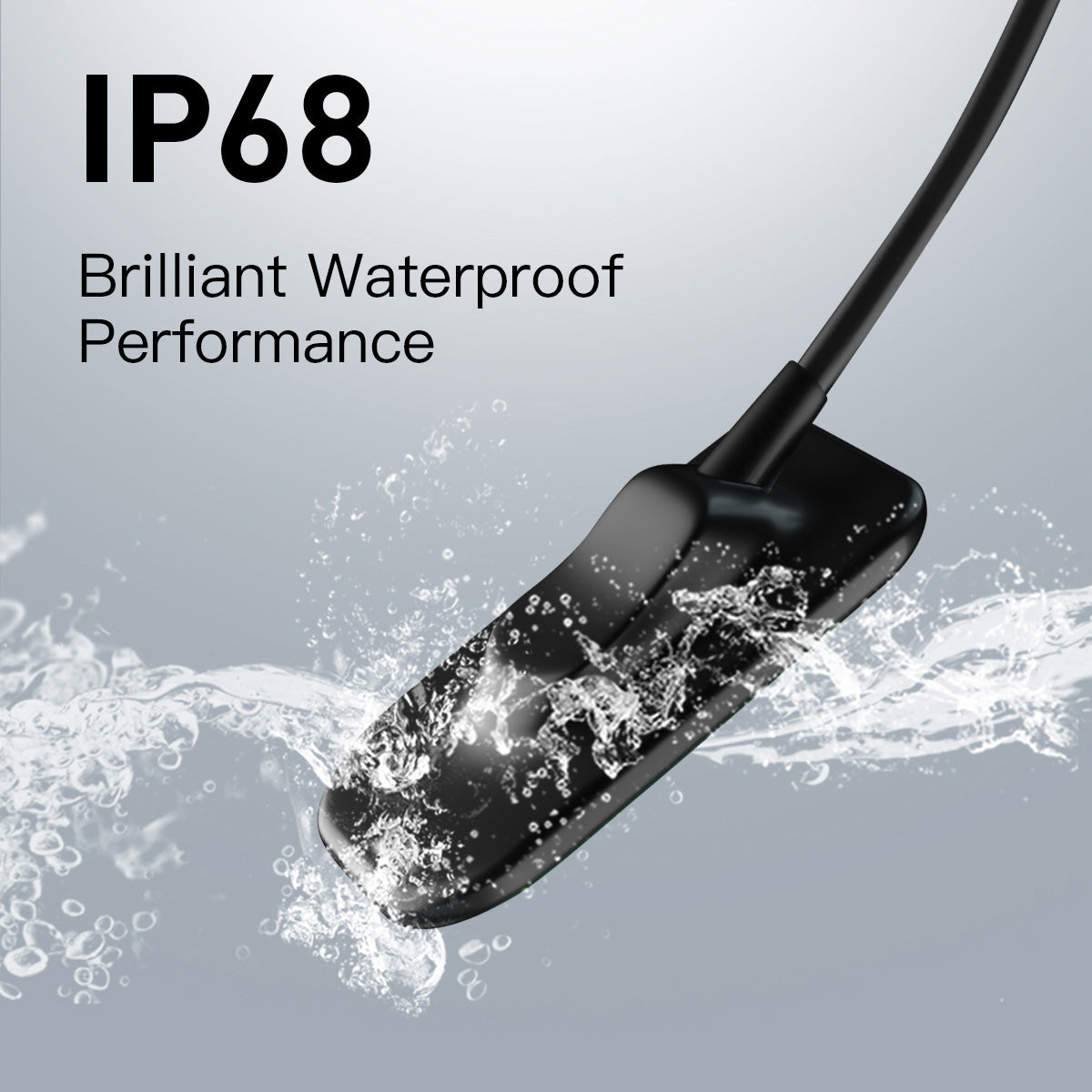

| Protection: |
IP68 |
IP68 |
| Technical Parameter of X Ray Machine |
| Operating System: |
Android |
| Screen: |
7-inch Touch Screen |
| W: |
140 |
| kV: |
70 |
| mA: |
2 |
| Exposure Time (s): |
0.04-2 |
| Anode Angle: |
12° |
| Spot: |
0.4mm |
| Data Transmission: |
Wireless & USB |
| Total Filter: |
≥1.5mmAL |
| Weight (kg): |
≈2 |
| Internal Radiation Shielding: |
0.1Gy/h@1m |
| Operating Temperature (℃): |
10-40 |
| Storage & Transport Temperature with Package (℃): |
-10-45 |
| Operating Humidity (% RH) (Non-Condensing): |
30-75 |
| Storage & Transport Humidity with Package (% RH) (Non-Condensing): |
30-75 |

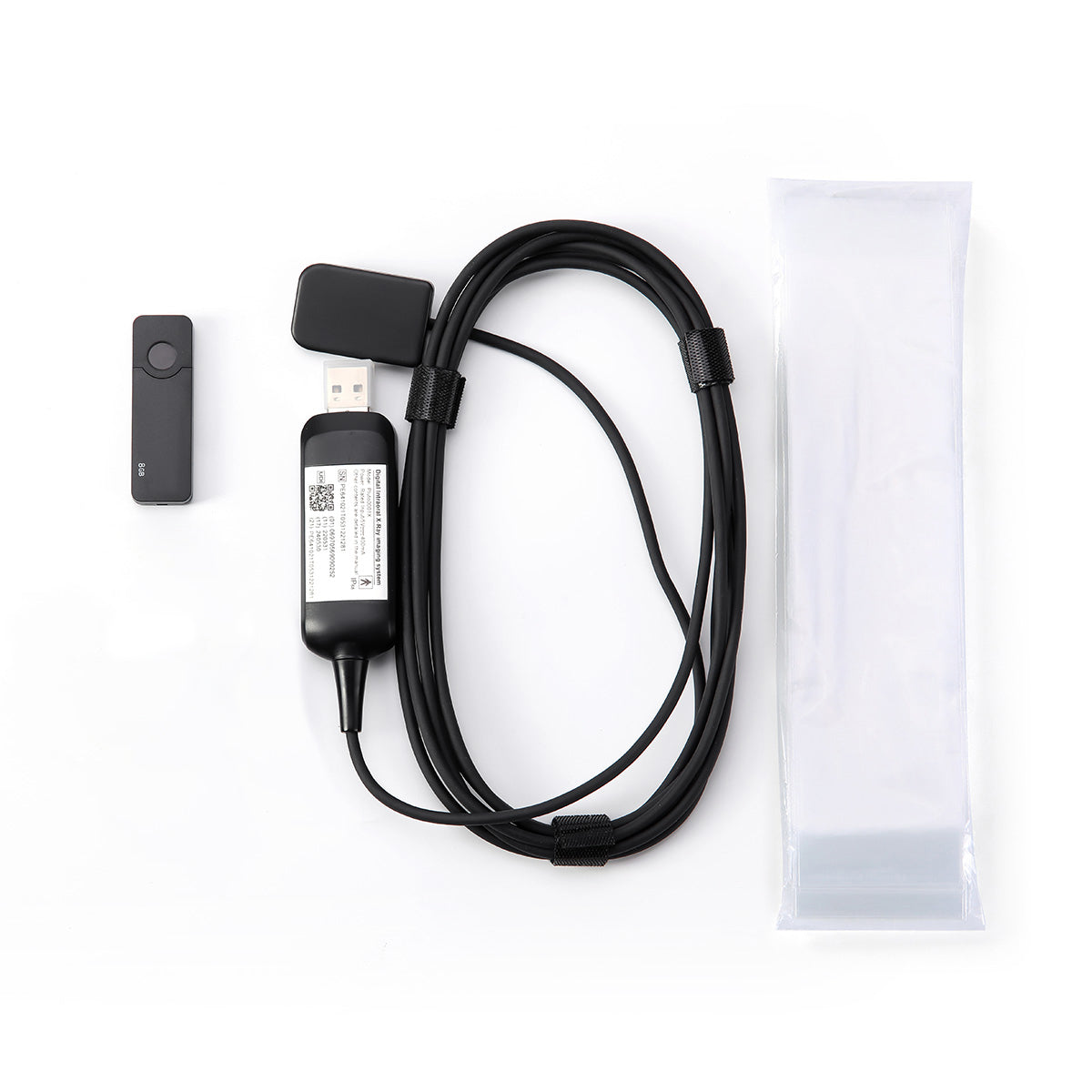

| Sensor |
USB flash disk (Software) |
| Protective sleeve |
Dongle |
