Dental Portable Handheld X Ray Machine Touch Screen High-Definition Imaging - azdentall.com

Dental Portable Handheld X Ray Machine Touch Screen with Scatter Shield - Open Box

*Open Box: Packaging opened, but item is untouched and fully functional.

Dental Portable Handheld X Ray Machine Touch Screen with Scatter Shield High-Definition Imaging XVbeam2000. Simple operation. High-Definition Imaging for Precise Diagnosis, 65kV tube voltage and 2.6mA tube current, 0.4mm focal spot. Internal & External Backscatter Shielding. 300+ Exposures per Charge. Ergonomic & Lightweight Design. With Secure Hand Strap. FDA Cleared.

You can click this link to see Operate Video Click Here

Product manual download

Overview

High-Definition Imaging for Precise Diagnosis
- Powerful Penetration: The 65kV tube voltage and 2.6mA tube current provide superior power to penetrate teeth and capture crystal-clear images.
- Fine Focal Spot: Featuring a 0.4mm focal spot, the XVB2000 minimizes blur and focuses X-rays more accurately for high-quality results on film or sensors.
Industry-Leading Dual-Protection
- Operator Safety First: Engineered with a dual-protection design to prioritize the safety of clinical staff.
- External Backscatter Shielding: A specialized lead shield significantly minimizes the operator's exposure to radiation residuals caused by scatter.
- Internal Radiation Shielding: The internal structure is optimally constructed to shield the operator from any radiation leakage.
Optimized Workflow & Long Endurance
- 300+ Exposures per Charge: The high-capacity built-in battery supports over 300 exposures on a single full charge.
- Innovative Docking Station: Return the device to its docking station after use for automatic recharging, ensuring it’s always ready for the next patient.
- Preset Exposure Doses: Quickly capture images by applying preset doses tailored to different teeth and patient profiles.
Ergonomic & Lightweight Design
- Ultra-Lightweight: Weighing only 2.1kg, it is easy to hold and operate with one hand.
- Secure Hand Strap: The ergonomic strap design ensures a secure grip, especially for users with smaller hands.

Maintenance Services

We offer remote installation guidance and maintenance services to ensure your product performs smoothly. Our professional team is ready to provide effective support tailored to your specific needs, helping you resolve any issues and address any concerns efficiently. Contact Us

Charging & Battery Care Instructions

We do not recommend keeping the device connected to power for extended periods once it is fully charged, as maintaining a continuous charging state may affect battery life over time. Once the battery is full, it is best to stop charging. However, if you prefer to keep the unit on the docking station for storage convenience, you can simply disconnect the power supply from the docking station. This way, the device remains safely seated without being actively charged, which will not impact the battery.
For your reference, here are the standard charging details:
- Charging Time: Approximately 80 minutes of charging is required after each automatic shutdown.
- How to Charge: Connect the docking station to the power supply and align the device's charging hole with the docking station's charging interface.
- Indicator Lights: The docking station light illuminates orange to indicate it is charging, and turns blue to indicate it is fully charged.

Technical Parameter

Model:	XVbeam2000
Focal Spot:	0.4 mm
Tube Voltage:	65 kV
Tube Current:	2.6 mA
Exposure Time:	0.01 – 2.0 sec
Weight :	2.1 KG
Source to Skin Distance:	200 mm
Power Input:	22.2 V

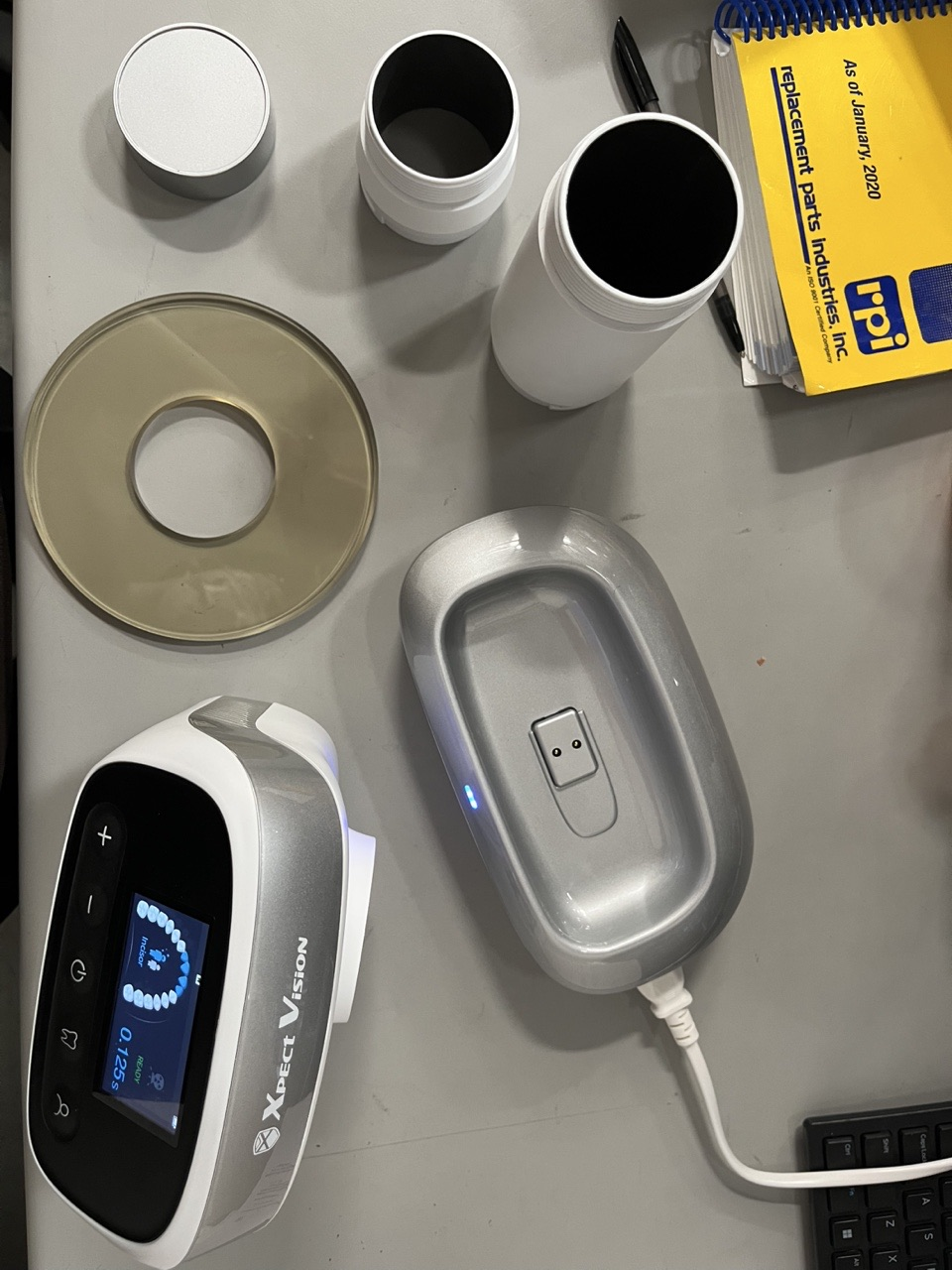

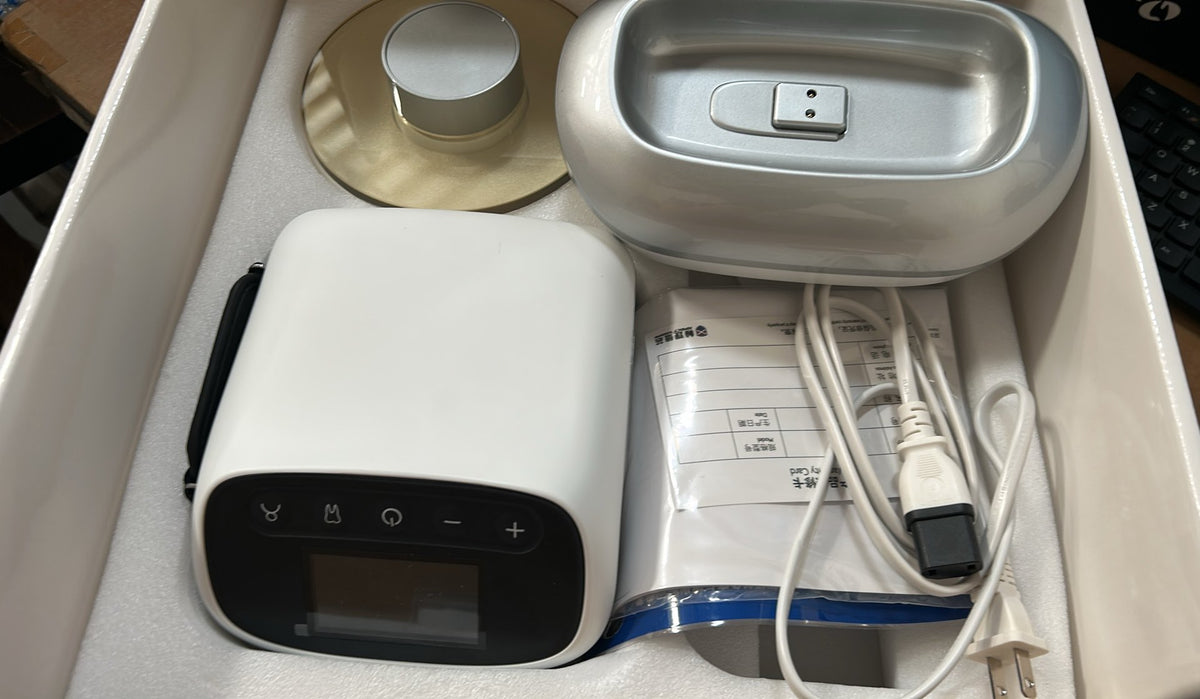

Packing List

Main Unit:	1 PC
Extension Tube:	1 PC
External Backscatter Shield:	1 PC
Docking Station:	1 PC
Power Adapter & Cable:	1 PC
Secure Strap:	1 PC
