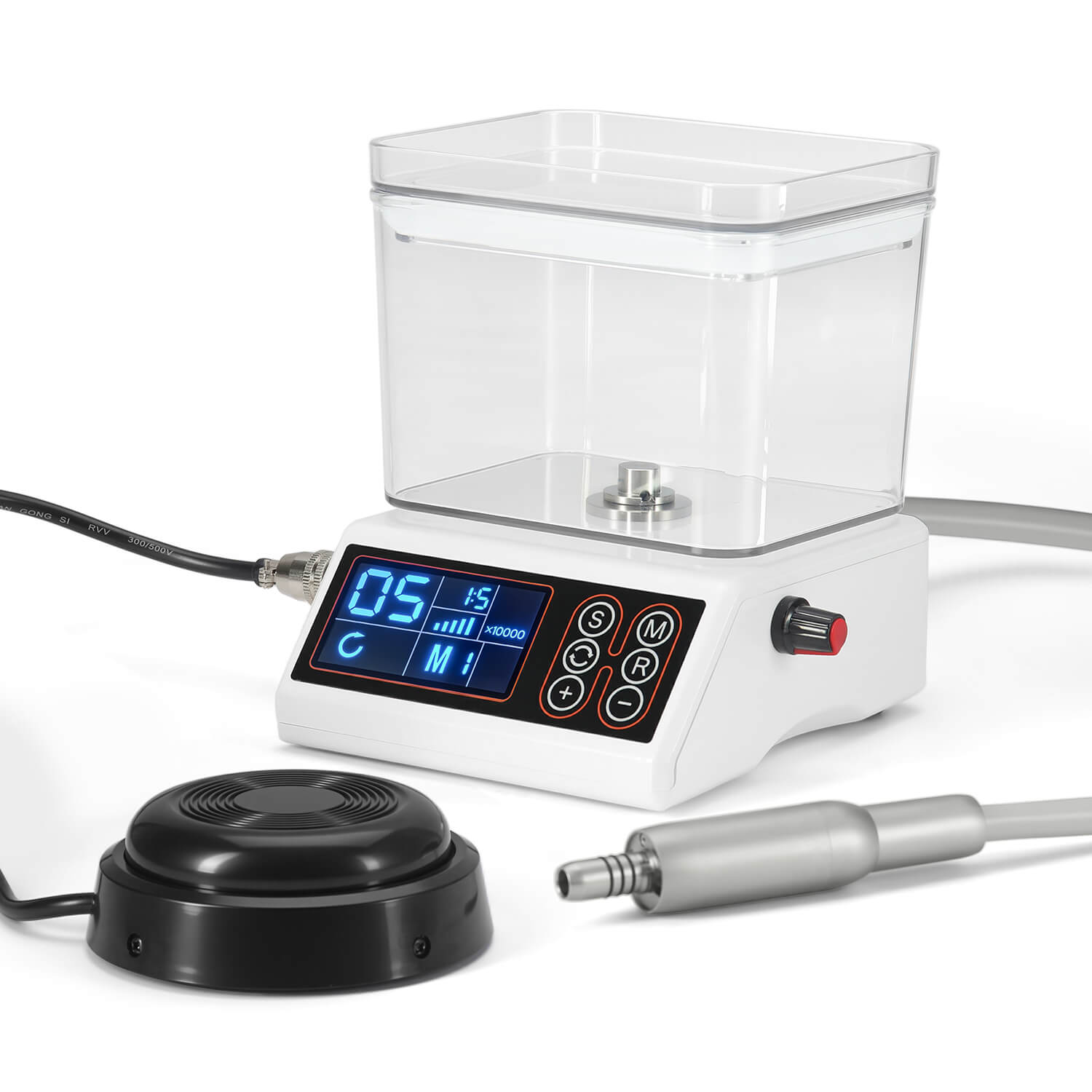

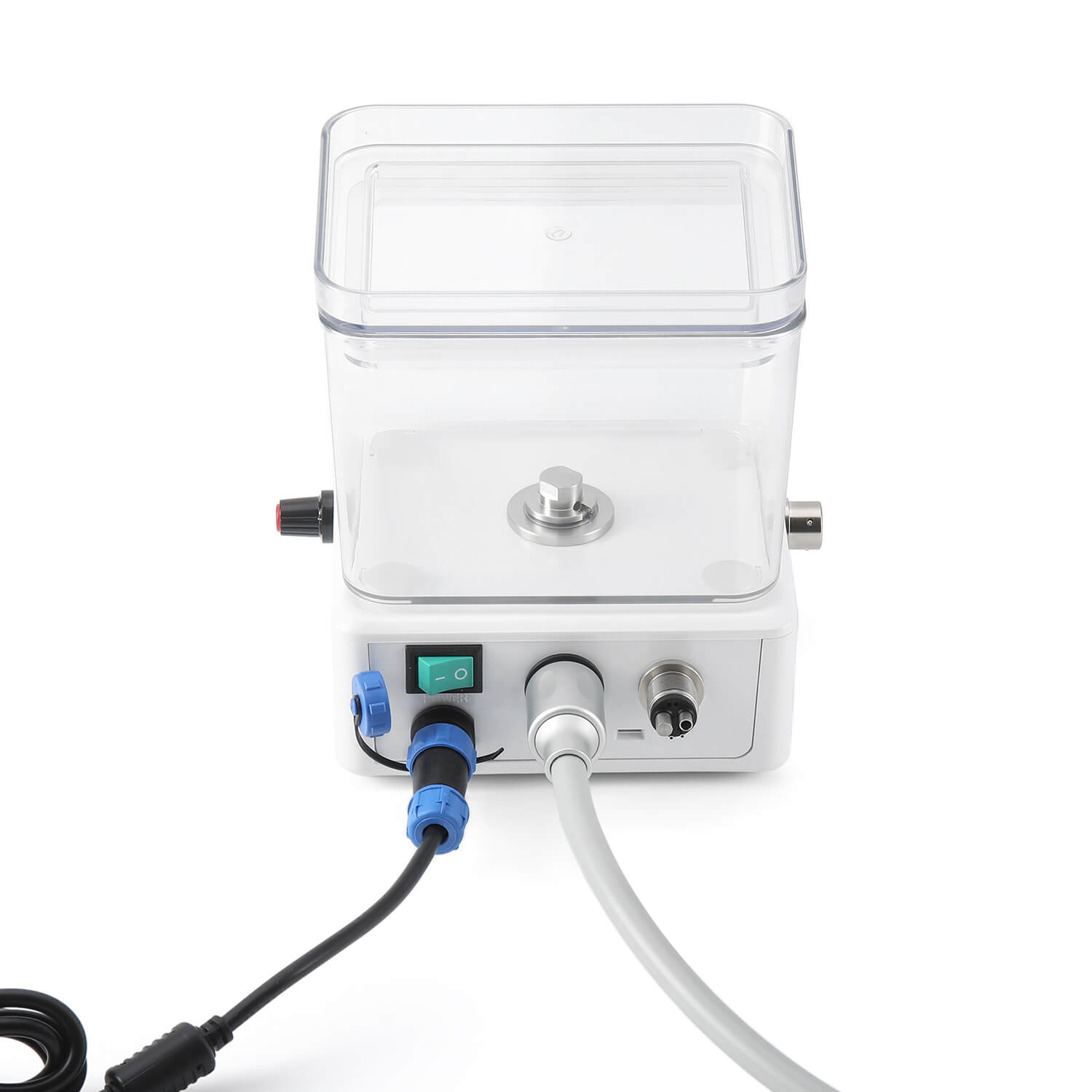

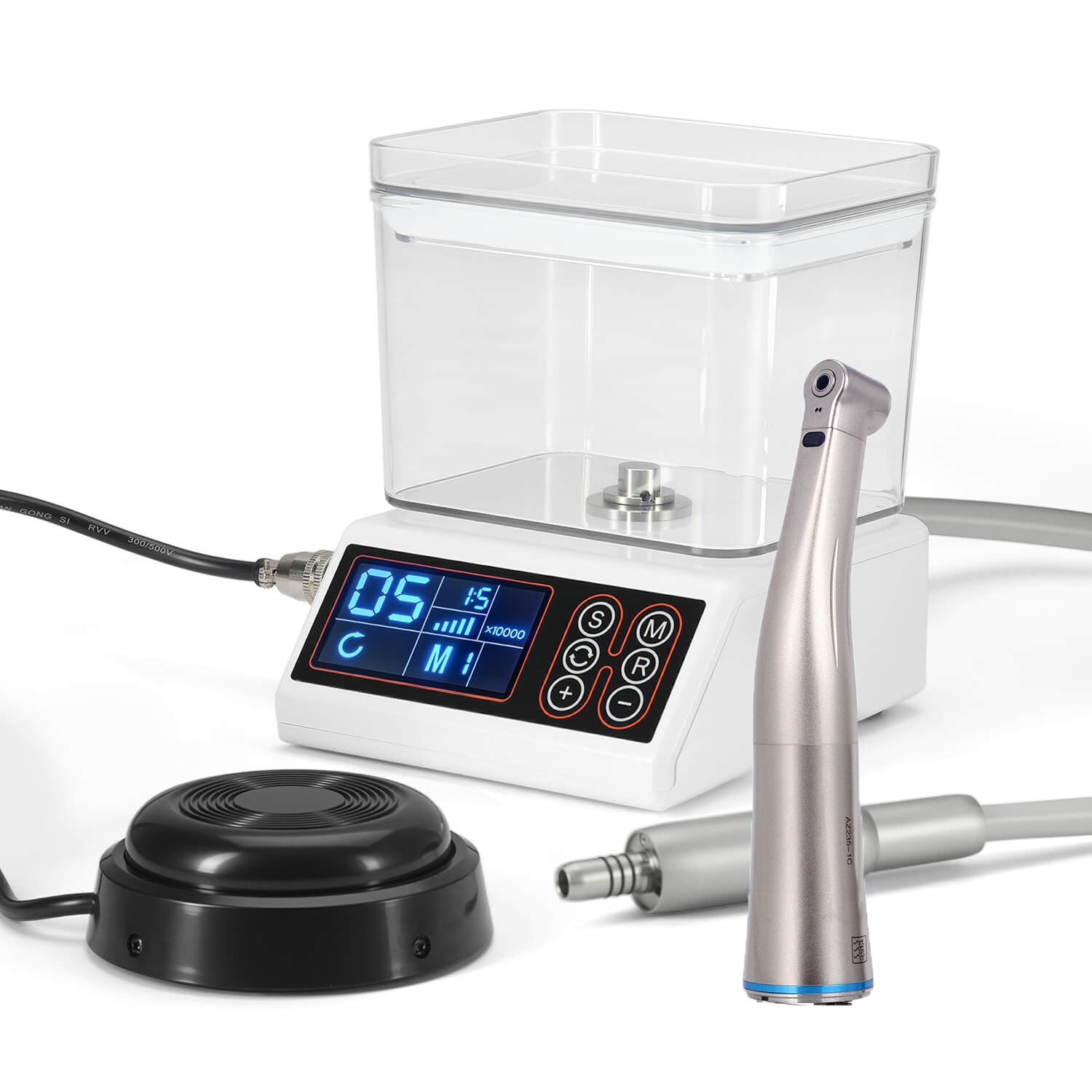

Dental Brushless LED Electric Micro Motor System with Water Tank 4 Holes + AZDENT 1:1 Fiber Optic Contra Angle Handpiece Internal Water Push Button. Own Water Supply System. Motor matches the ISO-E type international connection. Built-in LED lighting system for more accurate surgery. Can be matched with 1:5, 1:1, 16:1 internal water handpiece. Minimally invasive repair, polishing, pulp preparation ,etc.
- Own Water Supply System. Suitable for clinic outside treatment training.
- The wide range of speed adjustment is easily suitable for a variety of jobs. Can be matched with 1:5, 1:1, 16:1 internal water handpiece. Minimally invasive repair, polishing, pulp preparation, etc.

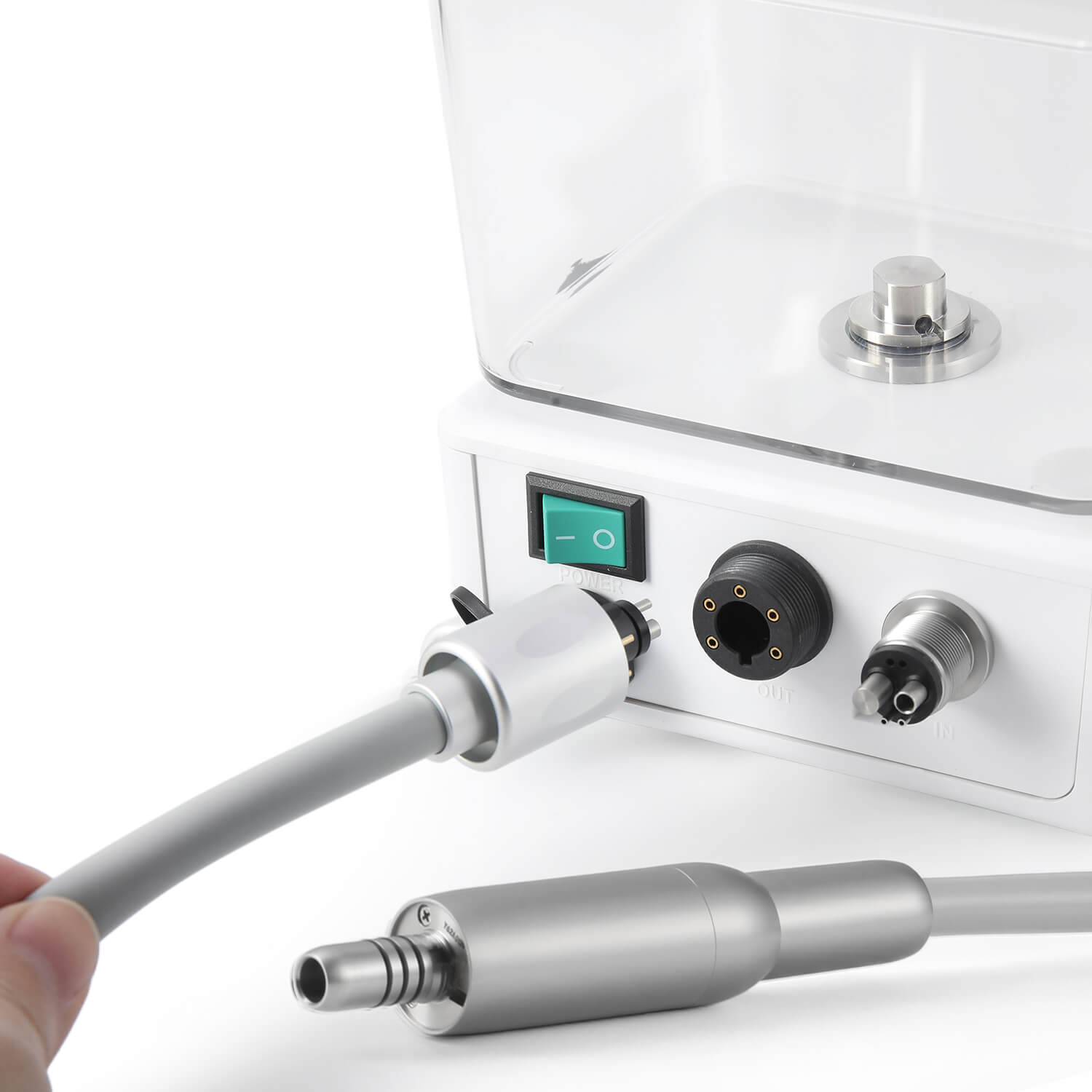

- Motor matches the ISO-E type international connection.
- Built-in LED lighting system for more accurate surgery.
|
| Tips of Electric Micro Motor System |
- After each use of the water functionremove the water tank, turn the water switch to maximum, and deny running for about 10 seconds until the water in the system is drained.
- Please ensure the motor is completely stopped before pressing the reverse key.
- Can not achieve the atomization effect without connecting the dental unit, and can only use its own water source.

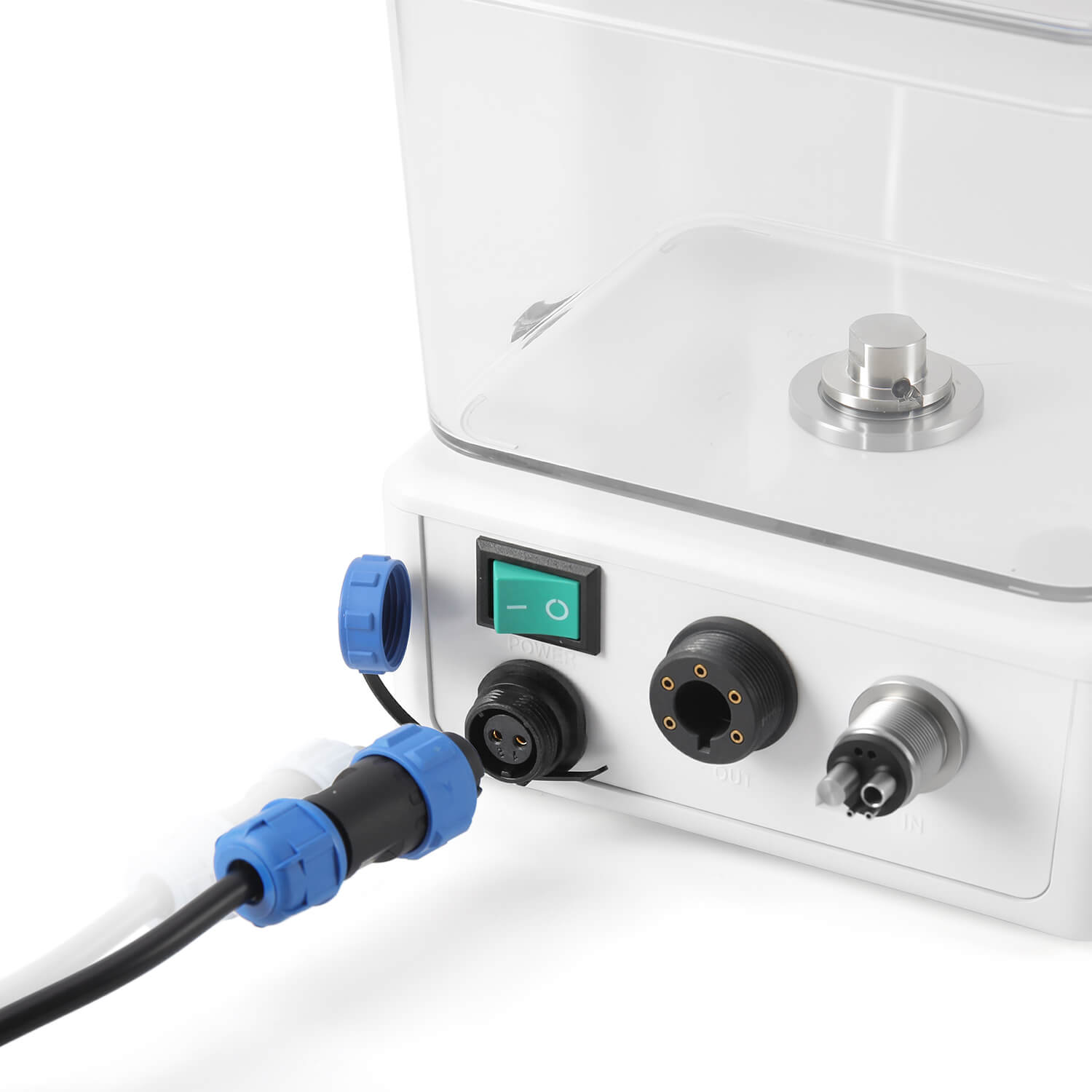

- After connecting the dental unit, the water and gas provided by the dental unit can be used normally. There is no need to open the water in the tank. The dental unit pedal can control the motor start and stop and the shutdown of water and atomization gas.
|
| Specifications of Electric Micro Motor System |
| Control system: |
Vector control system |
| Motor type: |
DC brushless motor |
| Speed: |
2,000 ~ 40,000rpm |
| Torque: |
≥2.5N.cm |
| Power supply input: |
DC 24V |
| Motor size: |
Φ22xL71mm |
| Noise: |
<60dB |
| Light source: |
LED (white light) |

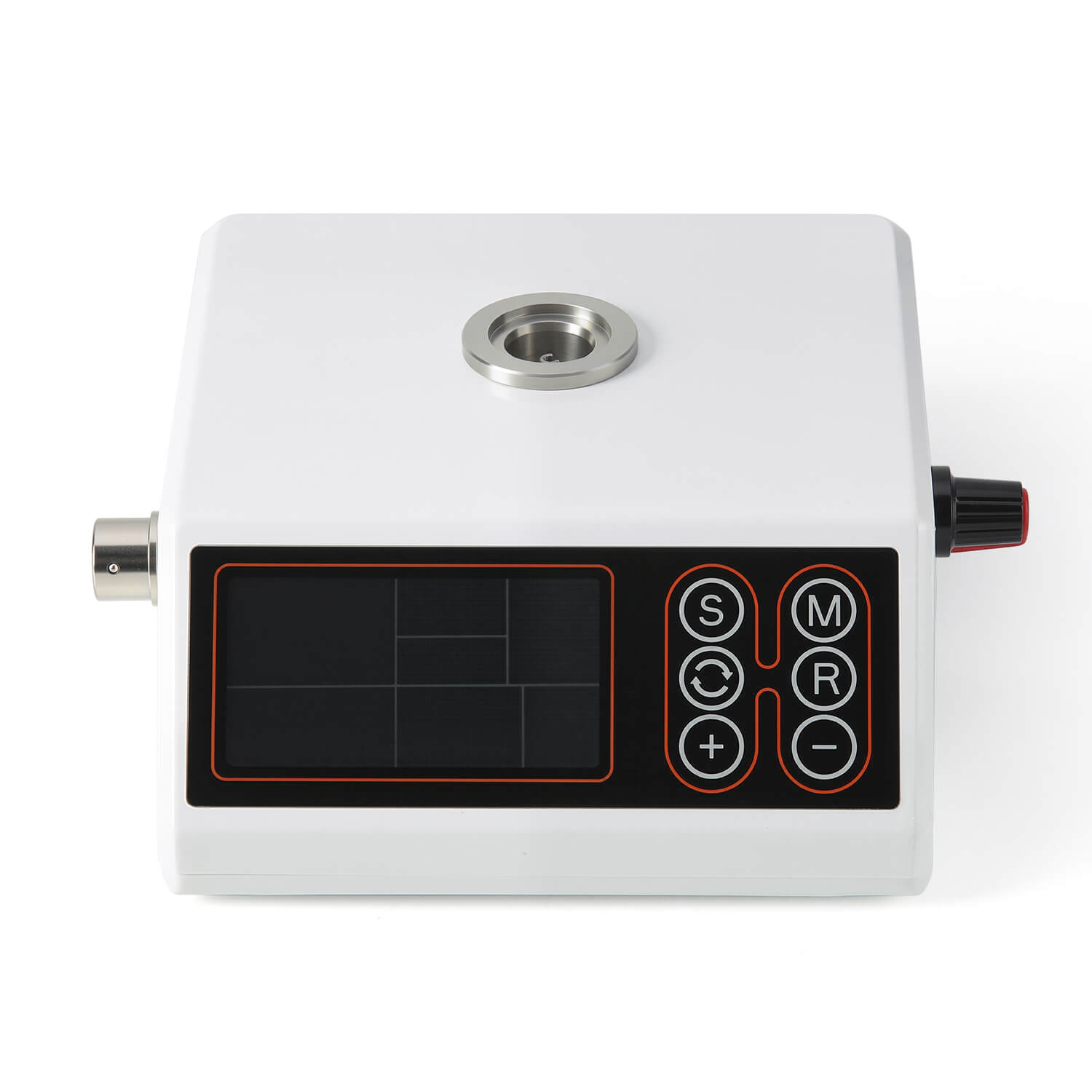

| Size of the controller: |
L150.00 ×W128.00 ×H55.00mm |
| Motor weight: |
67g |
| Total weight: |
660g |

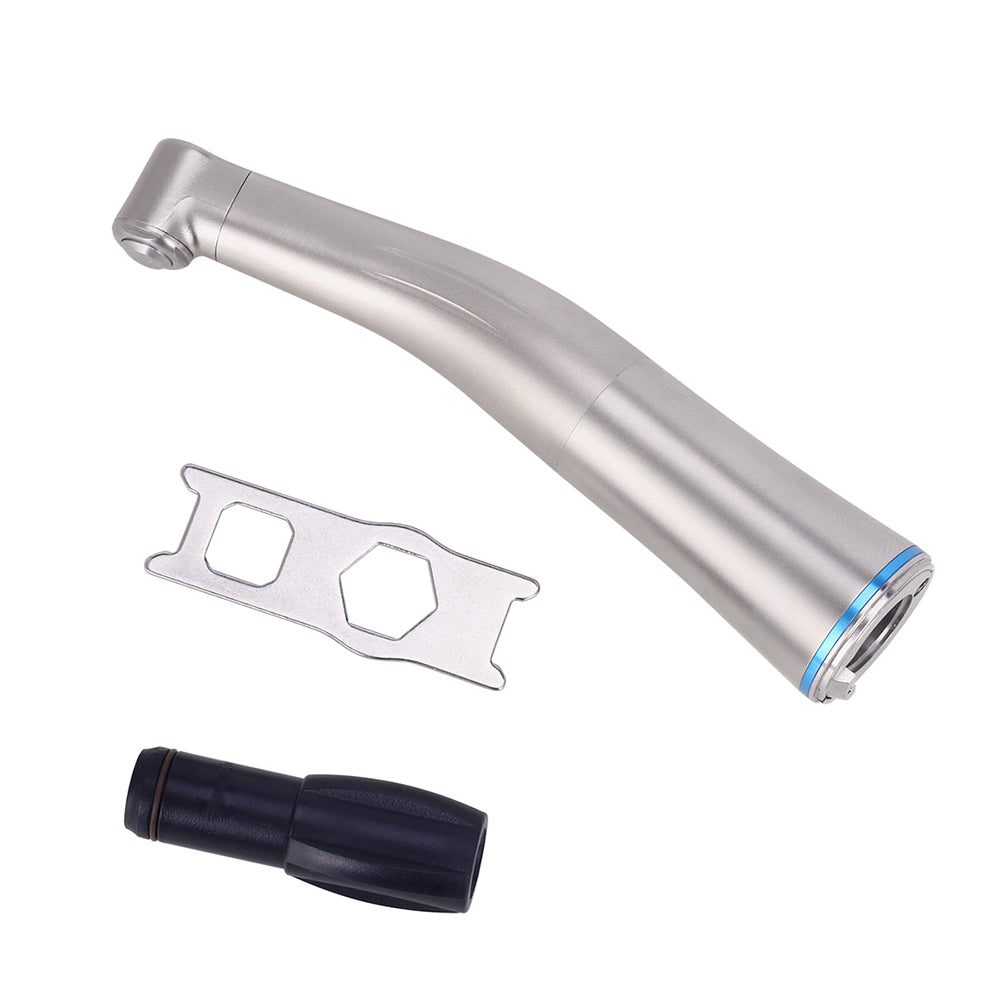

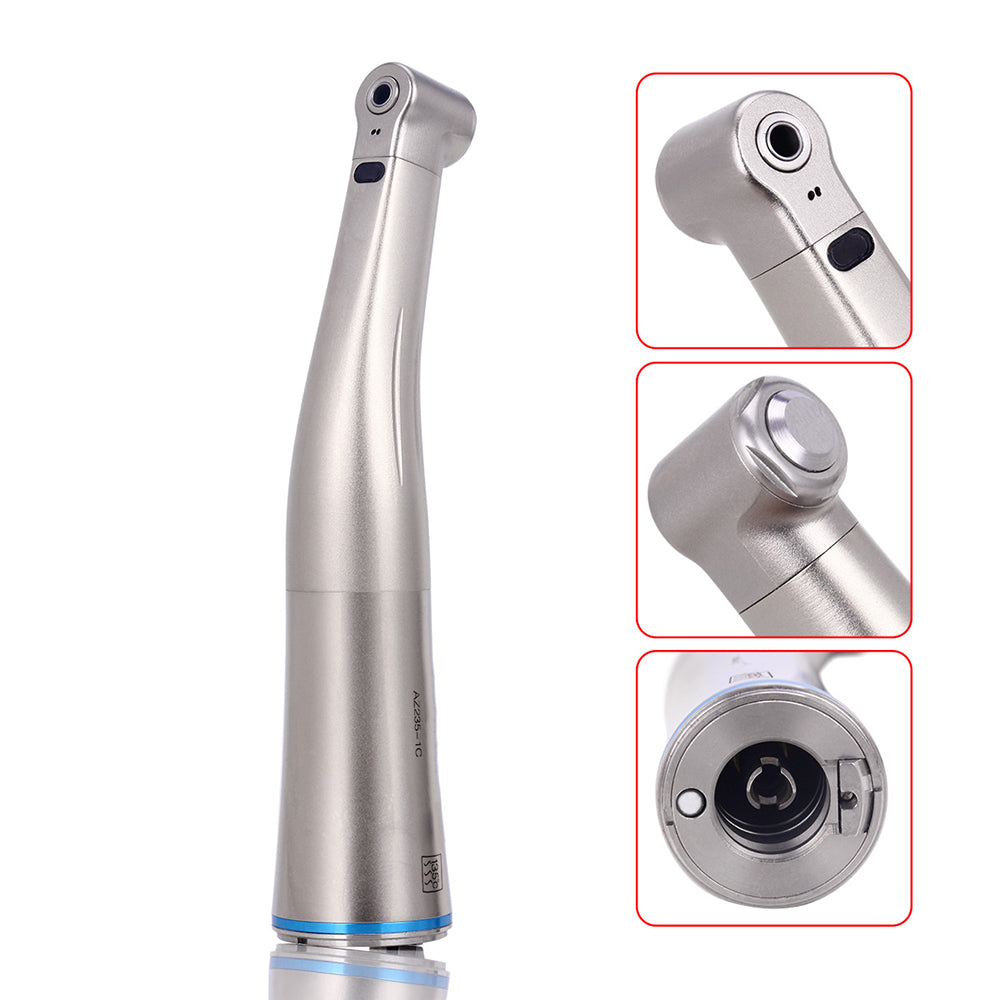

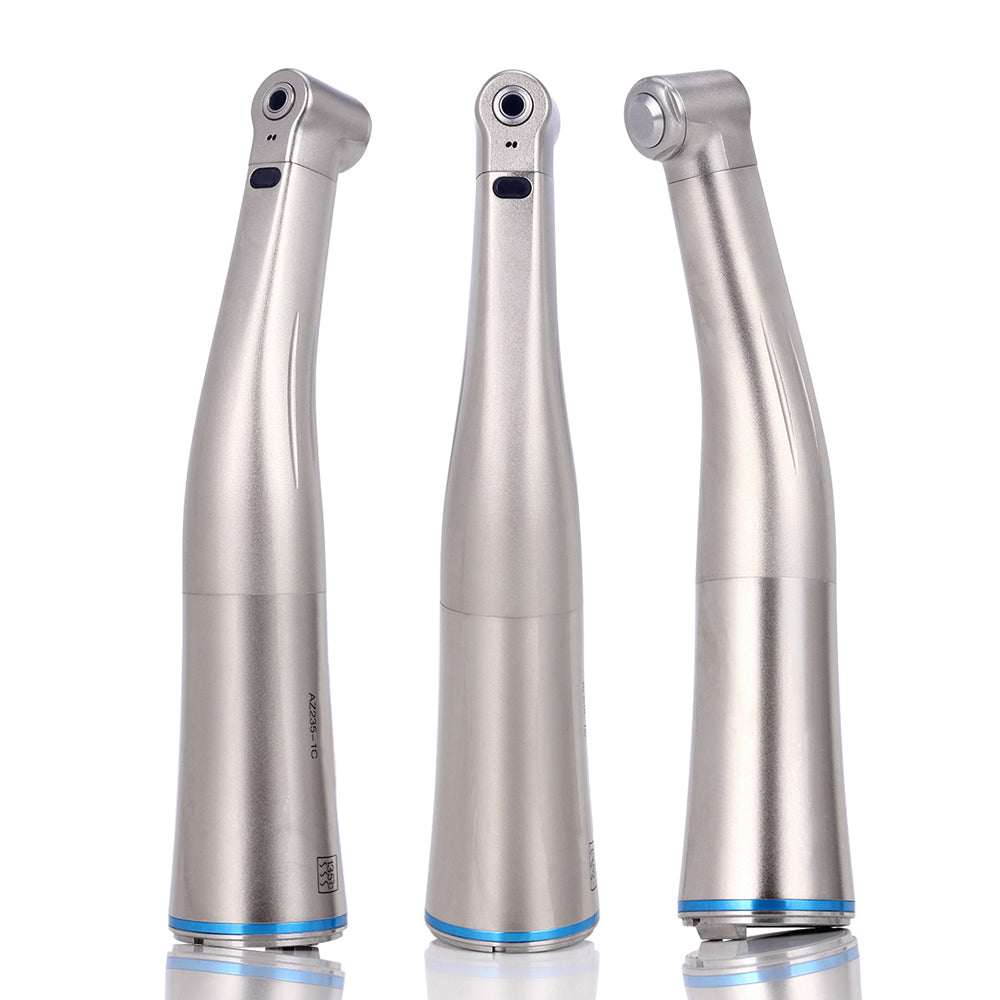

| Specifications of 1:1 Fiber Optic Contra Angle Handpiece |
| Model: |
AZ235-1C(202C8) |
| Brand: |
AZDENT |
Rotation Speed:
|
18,000-25,000rpm/min |
| Brightness: |
32000Lux |
| Noise: |
≤68dB |
| Chuck type: |
Push button |
| Bur Type: |
φ2.35mm |
| Spray: |
Internal water spray |
| Warranty: |
1 year |

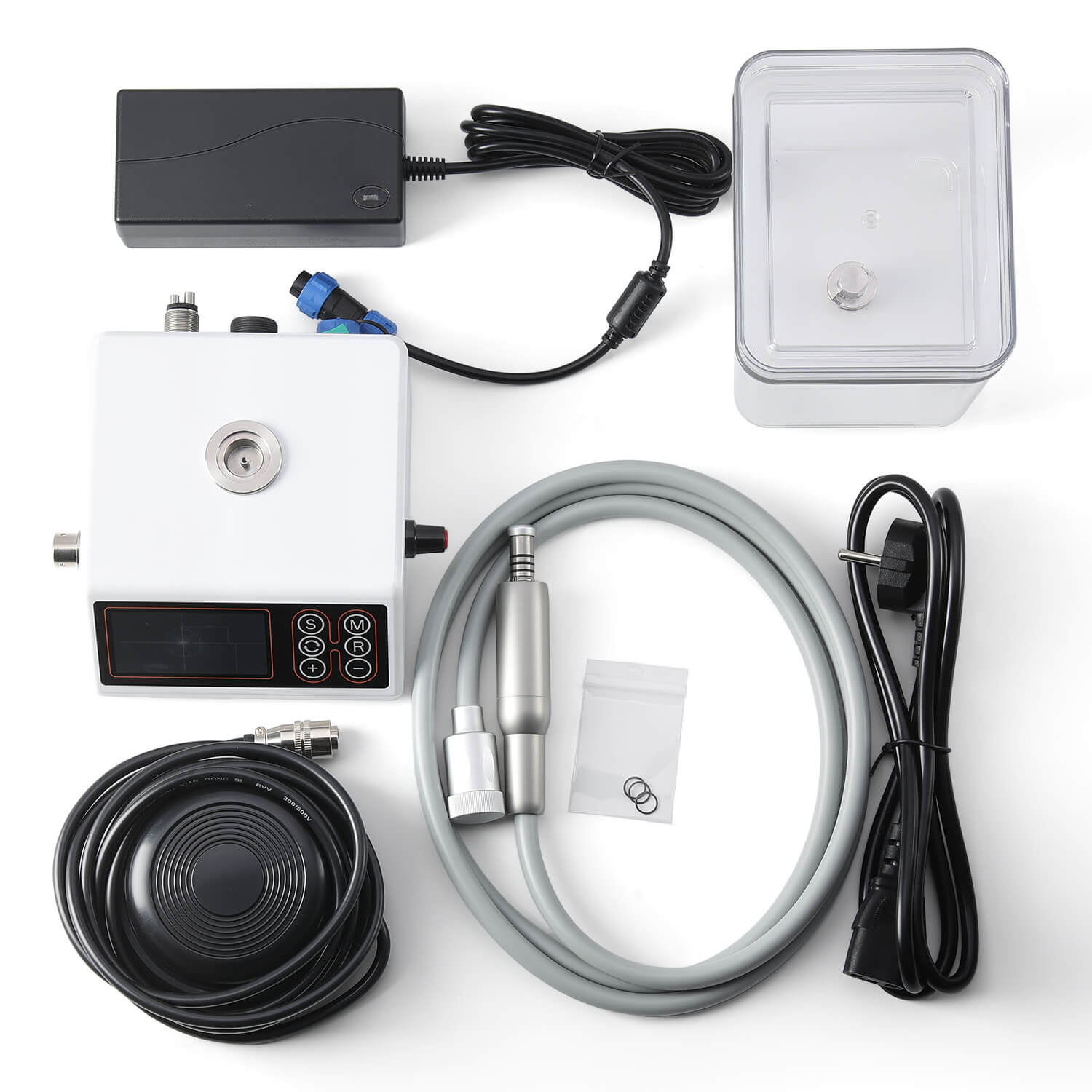

| 1:1 Fiber Optic Contra Angle Handpiece: |
1 Set |
| Electric Micro Motor System: |
1 PC |
| Electric motor |
1 PC |
| Water tank: |
1 PC |
| Foot pedal: |
1 PC |
| Power supply adapter: |
1 PC |
| English User manual: |
1 PC |
