Dental Brushless LED Electric Micro Motor 4 Holes 4 Sizes. Before treatment, test run the handpiece outside the oral cavity for at least 30 seconds. Proceed with treatment only if no abnormalities are found.

Note

Before treatment, test run the handpiece outside the oral cavity for at least 30 seconds. Proceed with treatment only if no abnormalities are found.
When connecting or disconnecting the handpiece, ensure the motor has stopped rotating. Never connect or disconnect the handpiece while the motor is running.
Portable and mobile RF communication equipment may affect the performance of the electric motor. Avoid strong electromagnetic interference during use, such as being near mobile phones, microwave ovens, etc.

Precautions

Do not use chlorine-containing disinfectants.
Please use according to the disinfectant manufacturer's instructions.
Avoid disinfectant entering the inside of the motor connector.
Sterilizable components: Contra angle handpiece, Motor.
Sterilization method: High-pressure steam sterilization.
Before sterilizing the motor, it must be detached from the motor connector and the motor shaft plug and tail nut must be installed.
Except for the motor and handpiece components that can withstand high-temperature high-pressure sterilization, other components must not be sterilized.
Sterilization conditions: Considering the requirements of various countries/regions, use a fractional pre-vacuum steam sterilization process (according to EN 285 / EN 13060 / EN ISO 17665) to sterilize the instrument. (134°C for 5 minutes, maximum sterilization temperature: 137°C)

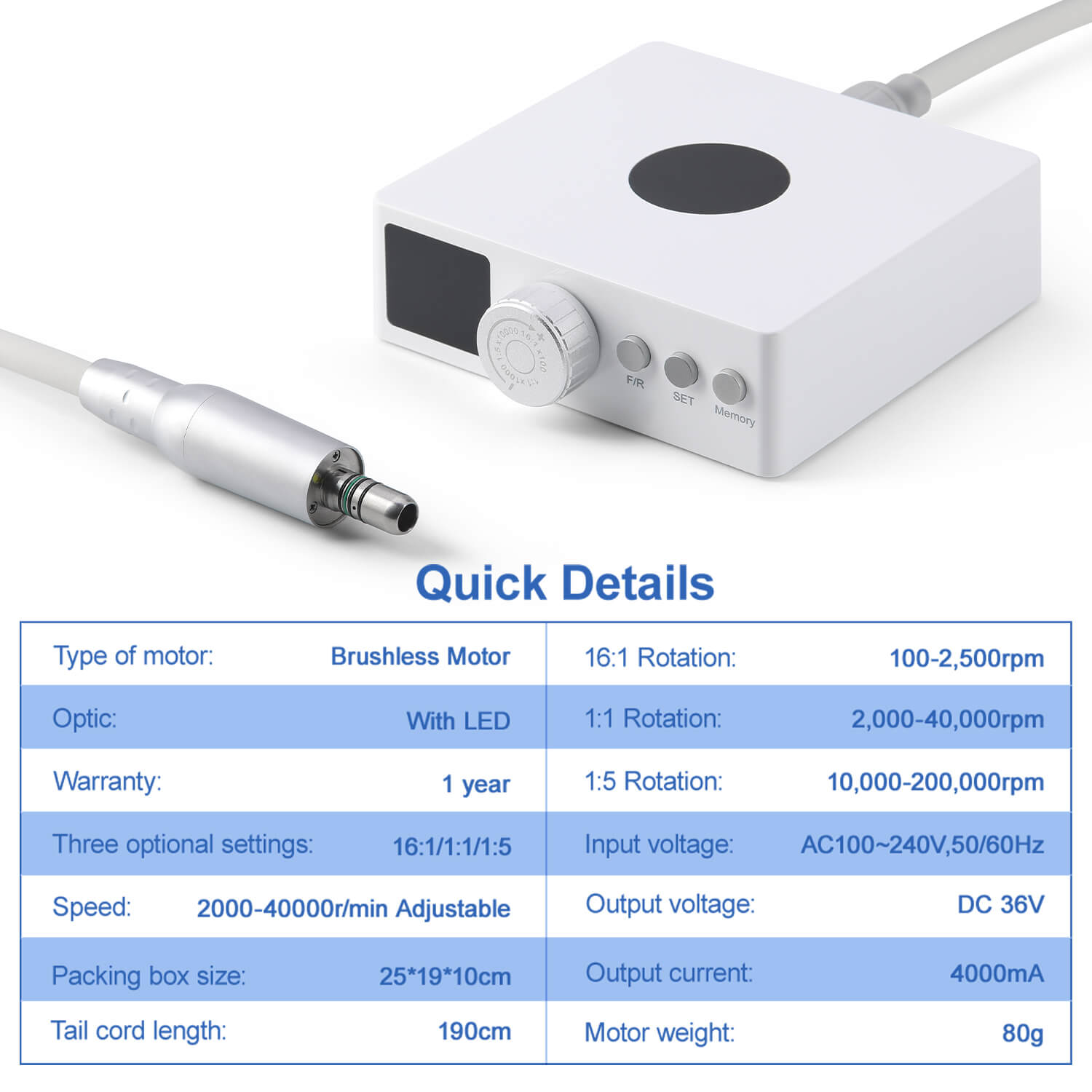

Technical Parameters

Adapter Input voltage:	AC 100-240V 50/60Hz
Adapter Output voltage:	DC 36V 4A
Motor Parameters Block torque:	69mN·m
Motor Parameters No-load current:	0.22A MAX
Motor Parameters No-load speed:	39,000±10% r/min
Motor Parameters Blockage current:	12.37A
Motor Parameters Starting voltage:	DC 24V
Water pressure:	0.2-0.3MPa
Power:	120W

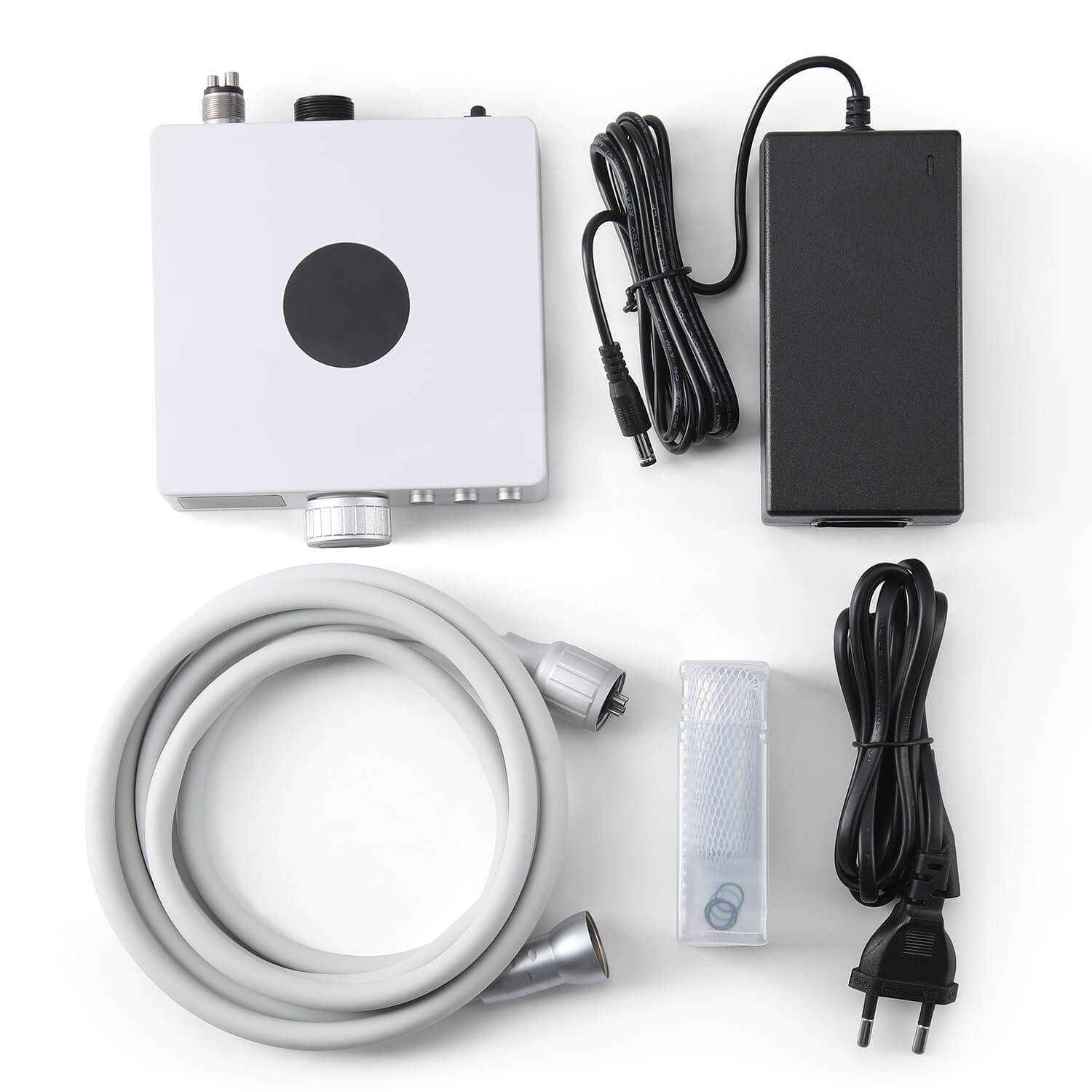

Packing list

Main Unit:	1 PC
Power Supply:	1 PC
Motor:	1 PC
Motor Pipeline:	1 PC
Instruction Manual:	1 PC

Dental Brushless LED Electric Micro Motor 4 Holes 4 Sizes - azdentall.com

Dental Brushless LED Electric Micro Motor 4 Holes 4 Sizes

Name: Dental Brushless LED Electric Micro Motor 4 Holes 4 Sizes
Brand: AZDENT
SKU: 123010014
Price: 207.34 USD
Availability: InStock

Warehouse For US

Ships in 1-6 business days For US customers. (We can't ship to PO Box address!)

SKU: 123010014

Hurry up, only 2 items left in stock.

$207.34

$196.97

with 5% OFF Order Over $200

Colors: White

5%OFF Order Over $200

10%OFF Order Over $1000

Free Standard Shipping for All Orders

Shipping times: in 3-6 days

30-Day Return or Refund

We allow customers to apply for return or refund, exchange within 30 days after the receipt of the goods. If 30 days have gone by since your receipt of the goods, unfortunately we can’t offer you a refund or exchange.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Note

Before treatment, test run the handpiece outside the oral cavity for at least 30 seconds. Proceed with treatment only if no abnormalities are found.
When connecting or disconnecting the handpiece, ensure the motor has stopped rotating. Never connect or disconnect the handpiece while the motor is running.
Portable and mobile RF communication equipment may affect the performance of the electric motor. Avoid strong electromagnetic interference during use, such as being near mobile phones, microwave ovens, etc.

Precautions

Do not use chlorine-containing disinfectants.
Please use according to the disinfectant manufacturer's instructions.
Avoid disinfectant entering the inside of the motor connector.
Sterilizable components: Contra angle handpiece, Motor.
Sterilization method: High-pressure steam sterilization.
Before sterilizing the motor, it must be detached from the motor connector and the motor shaft plug and tail nut must be installed.
Except for the motor and handpiece components that can withstand high-temperature high-pressure sterilization, other components must not be sterilized.
Sterilization conditions: Considering the requirements of various countries/regions, use a fractional pre-vacuum steam sterilization process (according to EN 285 / EN 13060 / EN ISO 17665) to sterilize the instrument. (134°C for 5 minutes, maximum sterilization temperature: 137°C)

Technical Parameters

Adapter Input voltage:	AC 100-240V 50/60Hz
Adapter Output voltage:	DC 36V 4A
Motor Parameters Block torque:	69mN·m
Motor Parameters No-load current:	0.22A MAX
Motor Parameters No-load speed:	39,000±10% r/min
Motor Parameters Blockage current:	12.37A
Motor Parameters Starting voltage:	DC 24V
Water pressure:	0.2-0.3MPa
Power:	120W

Packing list

Main Unit:	1 PC
Power Supply:	1 PC
Motor:	1 PC
Motor Pipeline:	1 PC
Instruction Manual:	1 PC
